Tile Cutter Diamond Blade Sinter Hot-Pressed Cutting Tools
Shijiazhuang Corediam Tools Technology Co., Ltd.- Blade Type：Continuous Boundary
- Manufacturing Process：Sintered
- Application：Ceramic
- Application Equipment：Angle Grinder, Circular Saw, Tile Saw
- Cutting Types：Wet Cutting
- Diameter：4′-18′
Base Info
- Model NO.：CTSA
- Segment Width：1.7mm,2.2mm,2.4mm,2.6mm
- Transport Package：Carton, Pallet
- Specification：110x10x22.23mm
- Trademark：Corediam
- Origin：China
- HS Code：82023910
- Production Capacity：1000PCS,Day
Description
Basic Info.
Model NO. CTSA Segment Width 1.7mm,2.2mm,2.4mm,2.6mm Transport Package Carton, Pallet Specification 110x10x22.23mm Trademark Corediam Origin China HS Code 82023910 Production Capacity 1000PCS/DayProduct Description
1. Product Introduction

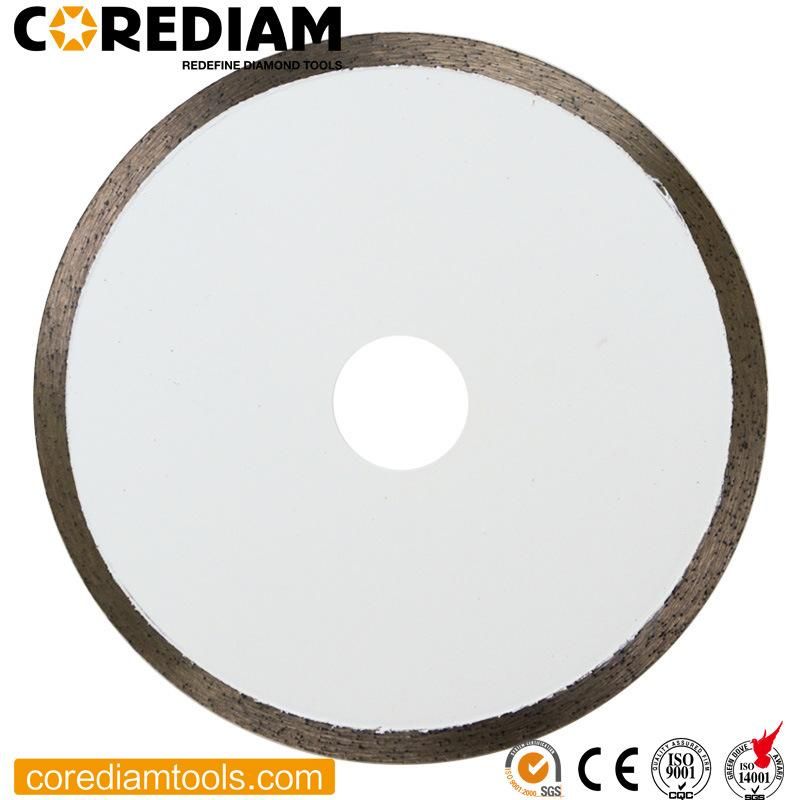

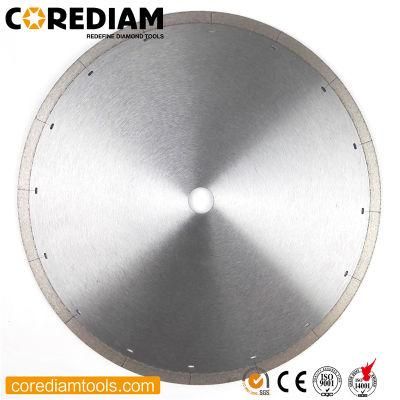

This type of blade is manufacturing by sinter hot-pressing production line. The diamond saw blade is universal wet cutting blades, designed for professionally cutting and nondestructive grooving on ceramic, tile, porcelain, and you also can use it for cutting marble and granite. It can provide very fast, precise, smooth cutting with minimum chipping. Tile saw blades can be installed on Angle Grinder, Circular Saw, Tile Saw equipment. The tile will have a very clear edge during the cutting job.
2. Features:
- It can provide very fast, precise, smooth cutting with minimum chipping.
- The tile will have a very clear edge during the cutting job.
- These blades are used for professionally cutting ceramic tile and porcelain with good efficiency.
- Different grade to choose.
3. Specification
| Item No. | Diameter | Segment Height | Segment Width | Arbor |
| CTSA105 | 105mm | 7/10mm | 1.7mm | 22.23mm |
| CTSA115 | 115mm | 7/10mm | 1.7mm | 22.23mm |
| CTSA125 | 125mm | 7/10mm | 1.7mm | 22.23mm |
| CTSA150 | 150mm | 7/10mm | 1.7mm | 22.23mm |
| CTSA180 | 180mm | 7/10mm | 1.7mm | 22.23mm |
| CTSA200 | 200mm | 7/10mm | 1.7mm | 22.23mm |
| CTSA230 | 230mm | 7/10mm | 1.7mm | 22.23mm |
| CTSA250 | 250mm | 7/10mm | 1.7mm | 22.23mm |
| CTSA300 | 300mm | 7/10mm | 2.2mm | 25.4/50/60mm |
| CTSA350 | 350mm | 7/10mm | 2.4mm | 25.4/50/60mm |
| CTSA400 | 400mm | 7/10mm | 2.6mm | 25.4/50/60mm |
OEM service offered.
4. Delivery time
Our leading time will be about 1 week for batch order.

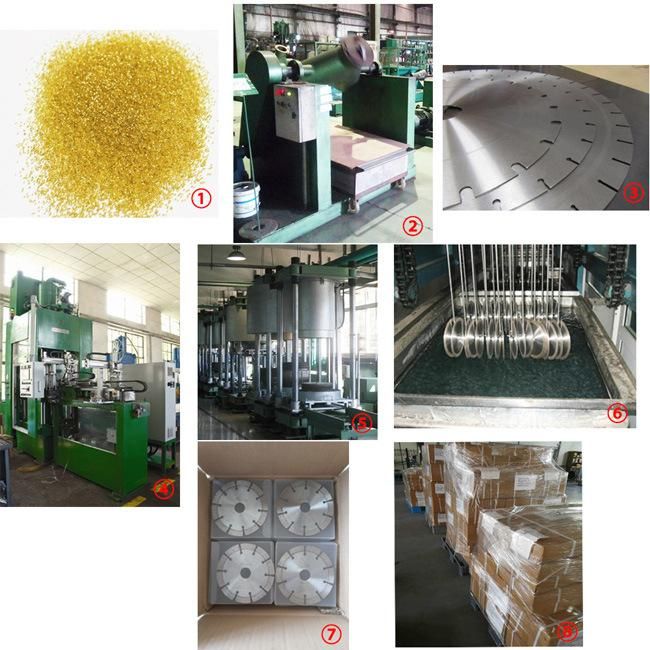

5. Sinter Hot-pressed Diamond Saw Blade Manufacturing Technique
Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch
6. Testing process
7. Types of equipment
8. Corediam sales network
