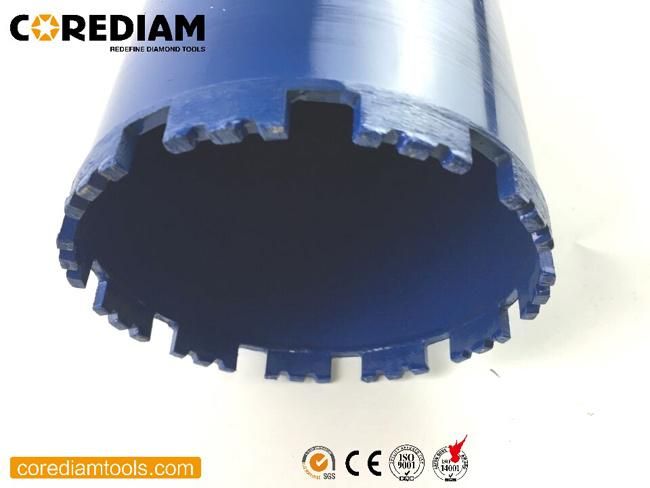

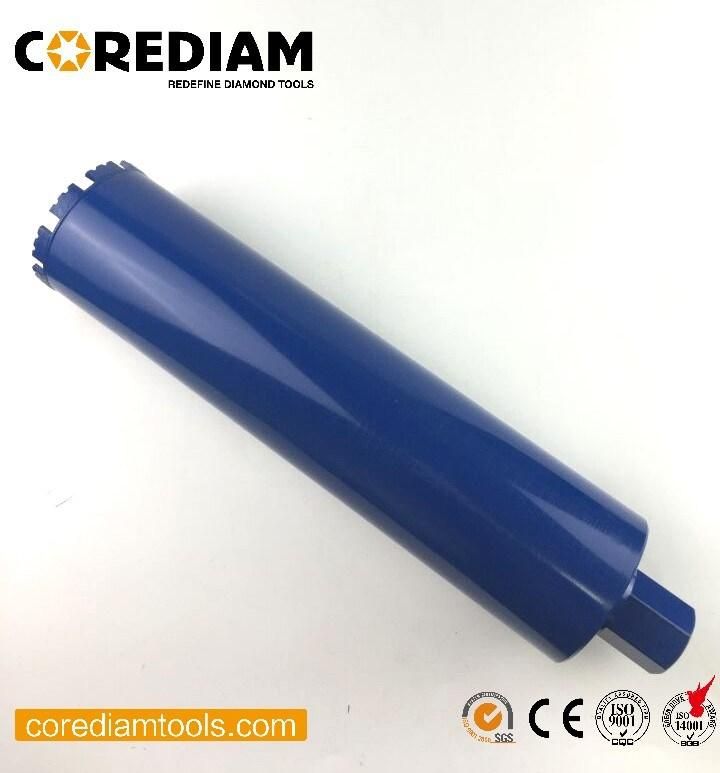

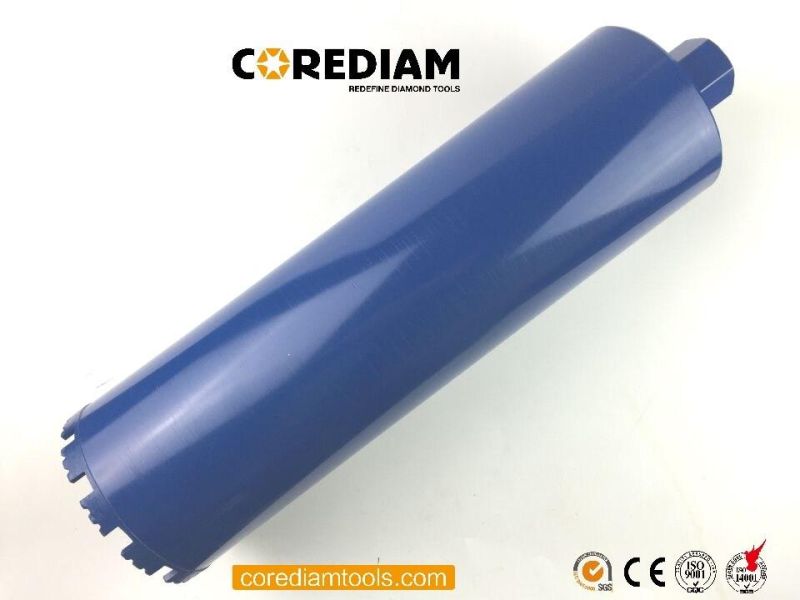

Brazed Diamond Wet Core Drill/Core Bits/Core Drill/Diamond Tool
Shijiazhuang Corediam Tools Technology Co., Ltd.- Type：Core Drill
- Usage：Masonry Drilling, Reinforced Conrete Drilling
- Manufacturing Technology：High Frequency Welding
- Segment Height：10mm
- Application：Wet Drilling Concrete, Reinforced Concrete
- Installing Equipment：Stand Core Driller, Hand-Held Drillers
Base Info
- Model NO.：CWDA
- Transport Package：Carton, Case, Pallet
- Specification：25mm-500mm
- Trademark：COREDIAM
- Origin：China
- HS Code：82071910
- Production Capacity：2000 Pieces Per Month
Description
2.Specification
| Item No. | Diameter | Segment Height | Arbor | Effective Length |
| CWDA02545010 | 25mm | 10 | 1 1/4"-7 | 450mm |
| CWDA03245010 | 32mm | 10 | 1 1/4"-7 | 450mm |
| CWDA03645010 | 36mm | 10 | 1 1/4"-7 | 450mm |
| CWDA04245010 | 42mm | 10 | 1 1/4"-7 | 450mm |
| CWDA05245010 | 52mm | 10 | 1 1/4"-7 | 450mm |
| CWDA06245010 | 62mm | 10 | 1 1/4"-7 | 450mm |
| CWDA06645010 | 66mm | 10 | 1 1/4"-7 | 450mm |
| CWDA07245010 | 72mm | 10 | 1 1/4"-7 | 450mm |
| CWDA07645010 | 76mm | 10 | 1 1/4"-7 | 450mm |
| CWDA08245010 | 82mm | 10 | 1 1/4"-7 | 450mm |
| CWDA09245010 | 92mm | 10 | 1 1/4"-7 | 450mm |
| CWDA10245010 | 102mm | 10 | 1 1/4"-7 | 450mm |
| CWDA11245010 | 112mm | 10 | 1 1/4"-7 | 450mm |
| CWDA12745010 | 127mm | 10 | 1 1/4"-7 | 450mm |
| CWDA13245010 | 132mm | 10 | 1 1/4"-7 | 450mm |
| CWDA15245010 | 152mm | 10 | 1 1/4"-7 | 450mm |
| CWDA16245010 | 162mm | 10 | 1 1/4"-7 | 450mm |
| CWDA17245010 | 172mm | 10 | 1 1/4"-7 | 450mm |
| CWDA18245010 | 182mm | 10 | 1 1/4"-7 | 450mm |
| CWDA20045010 | 200mm | 10 | 1 1/4"-7 | 450mm |
| CWDA25045010 | 250mm | 10 | 1 1/4"-7 | 450mm |
| CWDA30045010 | 300mm | 10 | 1 1/4"-7 | 450mm |
| CWDA35045010 | 350mm | 10 | 1 1/4"-7 | 450mm |
3.Features
Manufacturer technology: laser welded
Suitable: wet drilling concrete, reinforced concrete, masonary with superior efficiency.
Advantage: very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have resonable lifespan

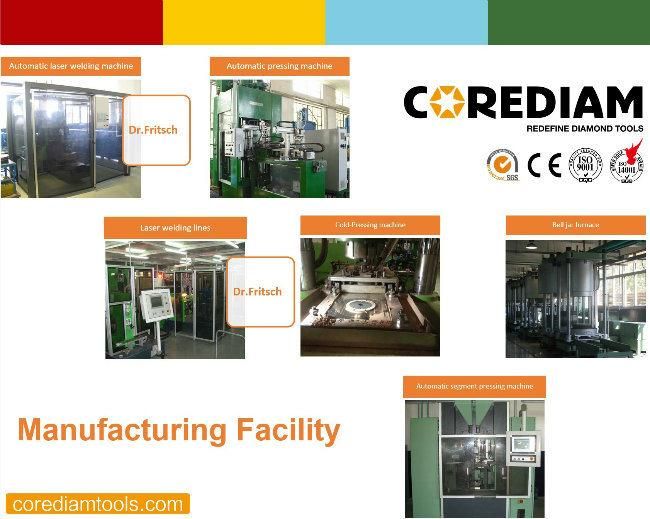

4.Corediam facility
5.Quality Control&Test
6.Delivery time&Packing
2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.
7.Corediam introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
