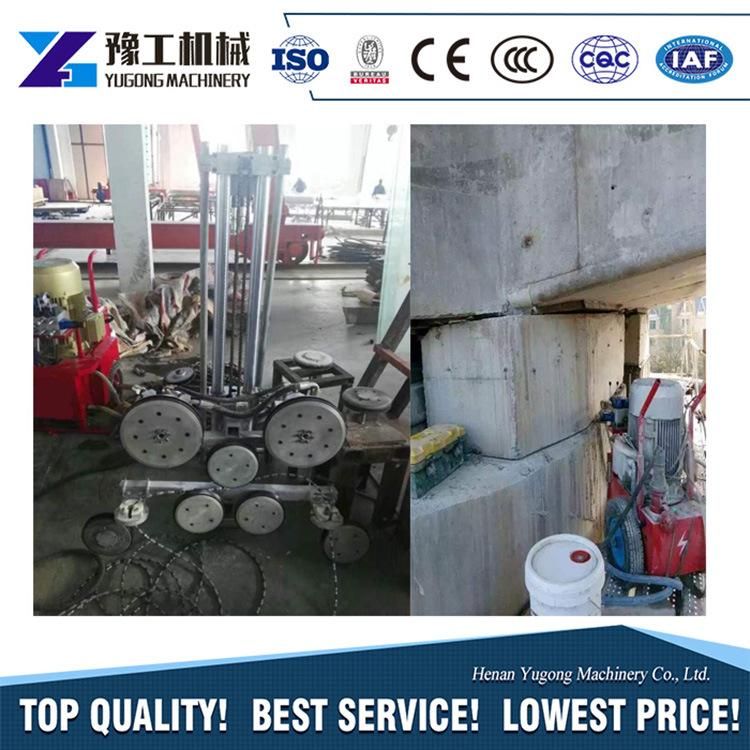

Diamond Automatic Water Cooling Chain Hydraulic Wire Saw for Stone

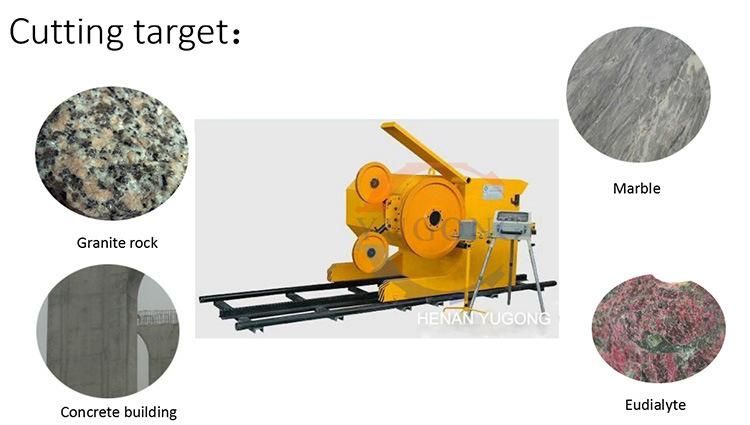

Henan Yugong Machinery Co., Ltd.- Application：Ceramic, Concrete, Stone, Marble, Granite
- Type：Electroplating
- Name：Hydraulic Diamond Wire Saw
- Keyword：Diamond Concrete Cutting Saw
- Usage：Jadestone, Cement Brick, Concrete Curb, Marble
- Power Source：Hydraulic Power Unit
Base Info
- Model NO.：YG Diamond Wire Saw
- Automation：Semi-Automatic
- Dimension：1300*2500*300mm
- Power：Hydraulic or Electric
- Motor Power：25kw
- Source Voltage：380V,220V
- Sawing Material：Reinforced Concrete; Bridge Column Wall, Granite
- Hydraulic Pump Type：Gear Pump
- Hydraulic Pump Power：25kw
- Main Motor Flow：40-100L,Min
- Wire Rope Diameter：11.5mm
- Wire Driving Type：Hydraulic
- Transport Package：Wooden Case
- Specification：210kg
- Trademark：YUGONG
- Origin：Henan( China)
- HS Code：8461500090
- Production Capacity：500sets,Month
Description

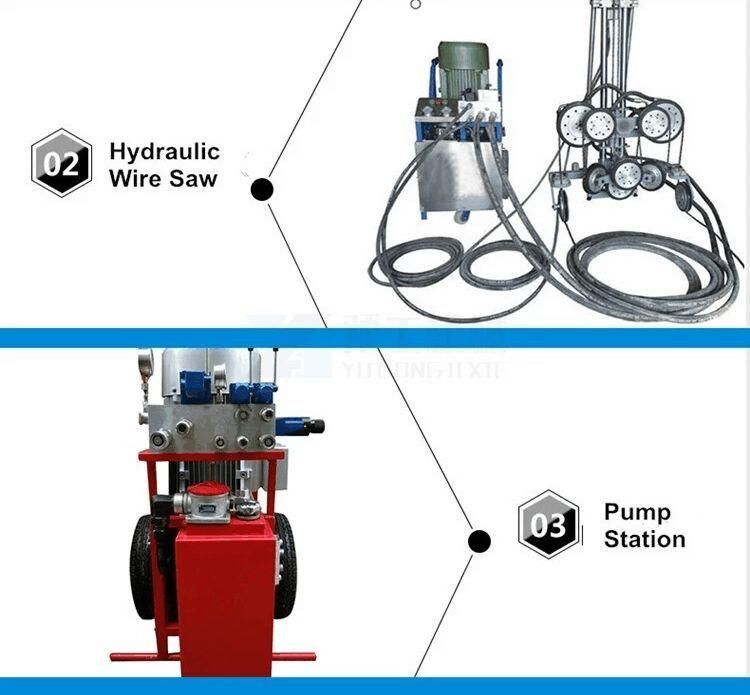

Hydraulic Pump
YG-25
Motor Power
25kw
Voltage
220V/380V, 50Hz
Motor Type
HM-80, 2 Cylinders
Rotation
1300r/min
Working Pressure
15-20Mpa
Weight
170kg
Size
720*650*1050mm

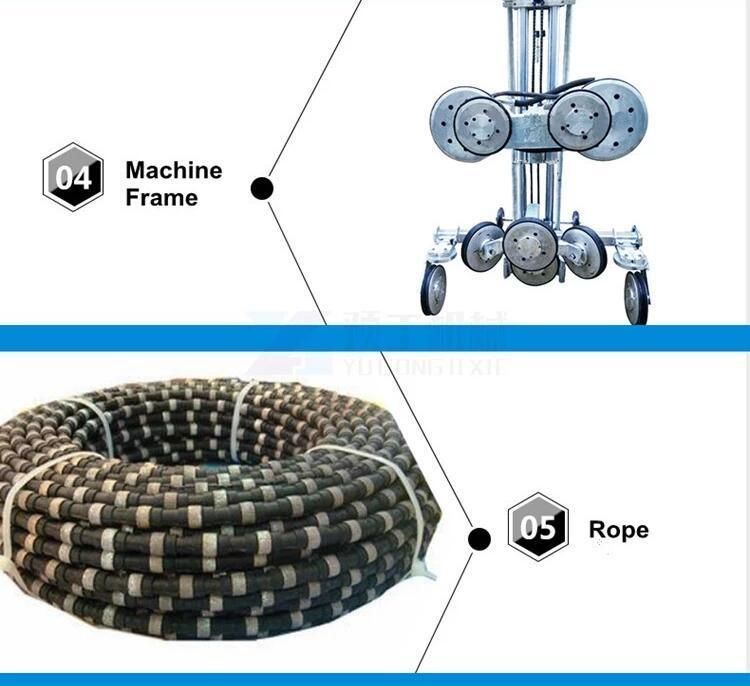

Frame & Wheels
Aluminum
Wheels
10
Weight
75kg
Size
90*90*1700mm

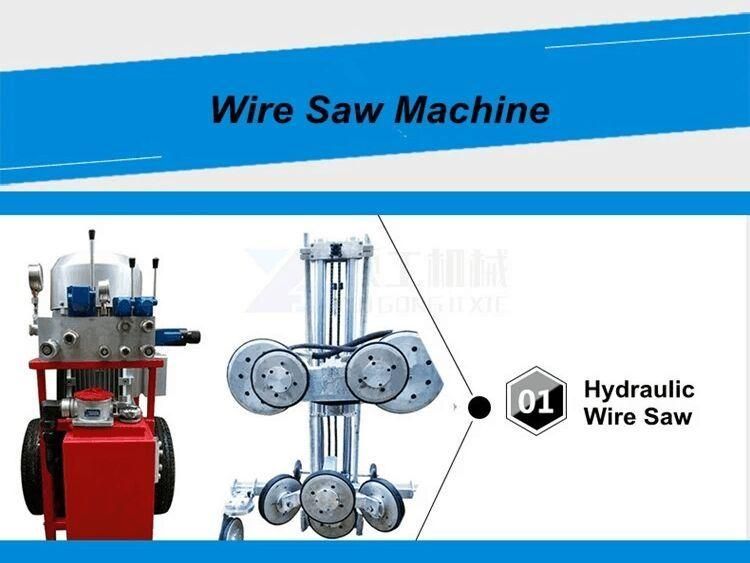

Diamond Wire Saw
Diamond Wire
Specification
φ11.5mm 40beads/m
Cutting speed
3~5m2/h
Wire life
2~3m2/m
Structure
According to the power, it can be divided into two types: electric wire saw and hydraulic wire saw. According to the different cutting purposes and requirements, it can be divided into concrete cutting wire saw, mining wire saw (mining wire saw mainly for marble, granite mining shaping processing with mining waste stone cutting machine at the same time mining waste material)

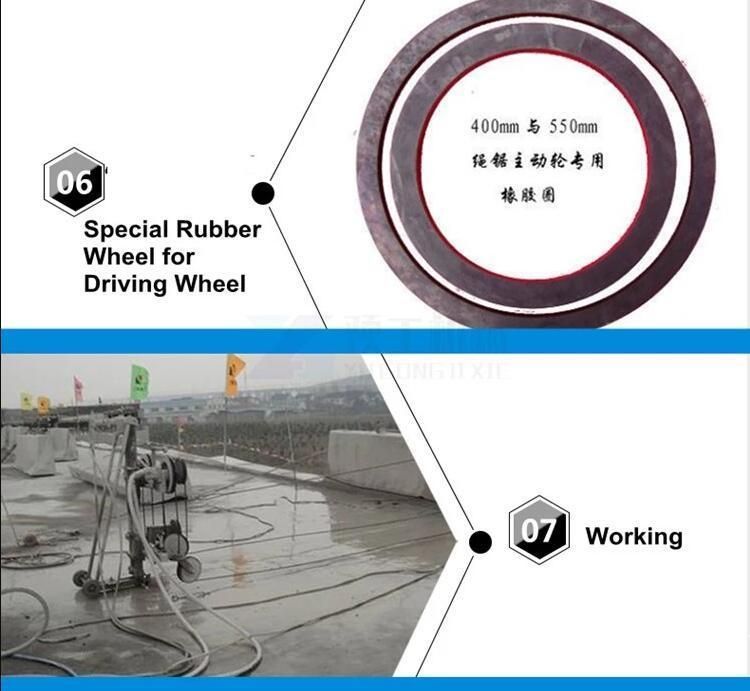

Working Site
Hydraulic Diamond Wire Saw Machine is used to cut concrete, granite, rock, walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.
Packaging& Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
