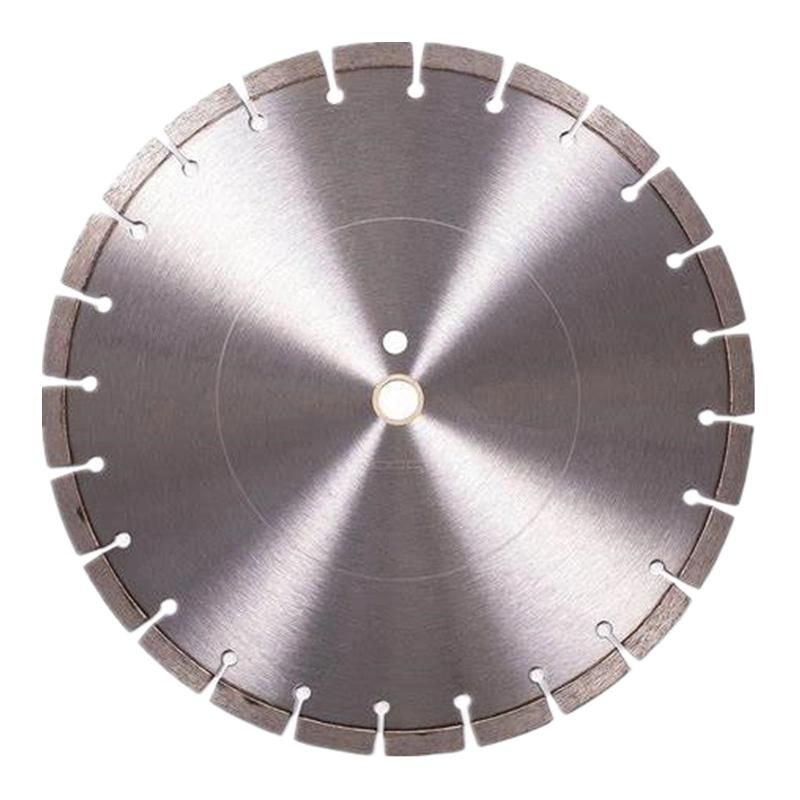

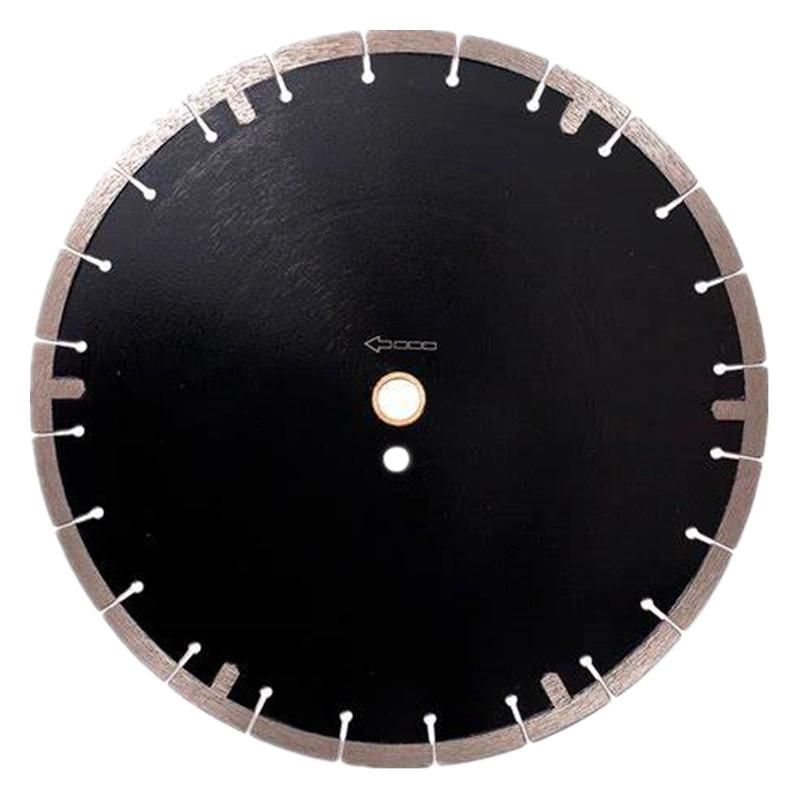

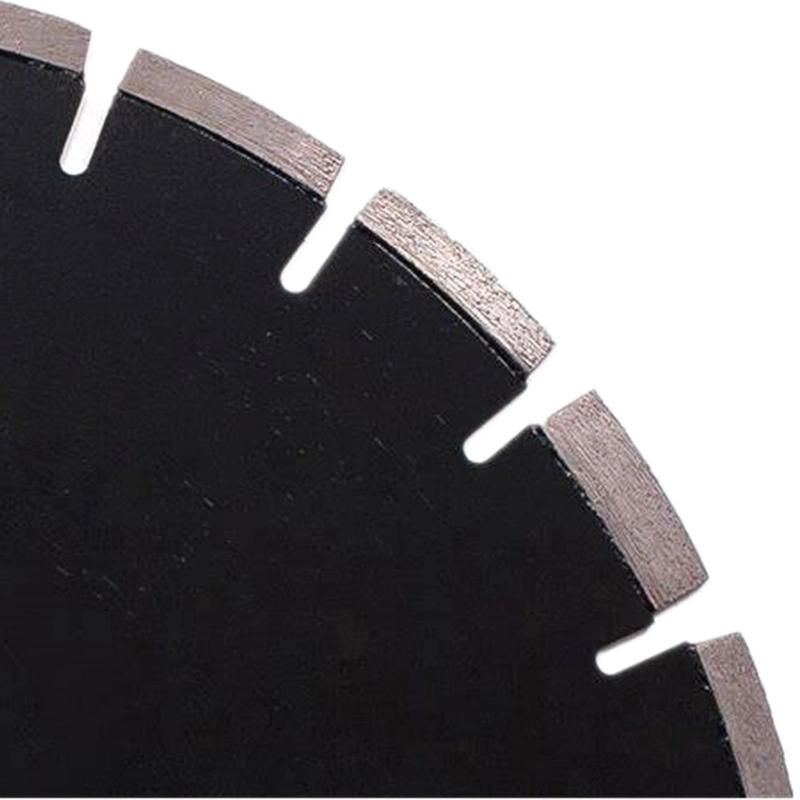

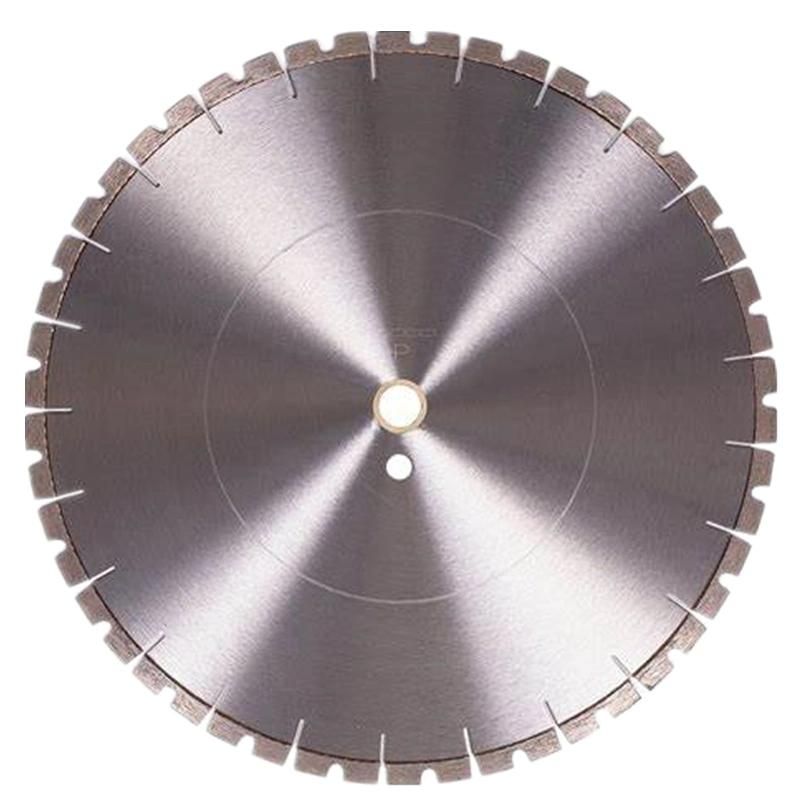

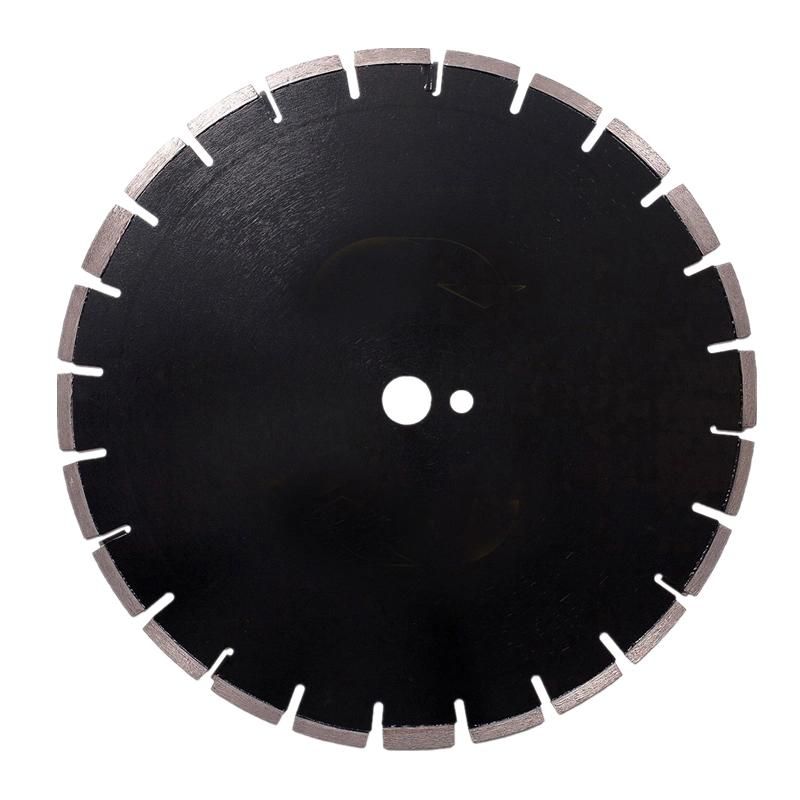

Electroplated Diamond Disc for Marble
Quanzhou Keen Diamond Tool Co., Ltd.- Blade Type：Cutter Head
- Manufacturing Process：Sintered
- Application：for Cutting Natural Stone
- Name：Electroplated Diamond Disc for Marble
- Item：Diamond
- Size：300-4200mm
Base Info
- Model NO.：LQ400C
- Segment：Sintered
- Welding：High Frequency Welding
- Finishing：Ti-Coated
- Making Material：Silent Core with Sintered Segment
- Transport Package：Carton Box and Crate
- Specification：D400MM
- Trademark：KEENTOOL
- Origin：Quanzhou, China
- HS Code：82023100
- Production Capacity：1000PCS,Week
Description
DiameterLength
(mm) Width
(mm) Height
(mm) Segment No. Arbor size
(mm) Inch Metric(mm) 12" 300 40 3.0 10/12/15/20 21 50/60 14" 350 40 3.2 10/12/15/20 24 16" 400 40 3.4 10/12/15/20 28 18" 450 40 3.6 10/12/15/20 32 20" 500 40 4.0 10/12/15/20 36 24" 600 40 4.5 10/12/15/20 42 28" 700 40 5.0 10/12/15/20 50 32" 800 40 6.0 10/12/15/20 57 36" 900 24 6.5/7.5 13/15 64 100 40" 1000 24 6.5/7.5 13/15 70 48" 1200 24 7.0/8.0 13/15 80 64" 1600 24 8.2/9.2 13/15 108 72" 1800 24 9.0/10.0 13/15 120 80" 2000 24 9.5/10.5 13/15 128 110" 2500 24 11/12 15/20 140 120" 3000 24 11/12 15/20 160 135" 3500 24 12.5/13.5 15/20 180 150/200 155" 4000 24 13.5/14.5 15/20 200 165" 4200 24 13.5/14.5 15/20 210
1) Diameter (Inch or mm)
2) Inner Hole Size (Inch or mm)
3) Installation hole (If, need drawing)
4) Silent or None Silent Saw Blade
5) Segment No. (how many PCS segment per blade)
6) Segment Size (L x W x H, if possible please inform Steel Core Thickness)
7) Use of saw blade (For Granite, or marble, or limestone, or Sandstone. Or other material)
8) Quantity NO. (How many PCS, or how many sets segments)
9) Machine Powder/RPM (If possible)
10) Expected Shipping Date
11) Special Requirements (If)
If you are interested and would like to know more about us, welcome to visit us at http://keentool.en.made-in-china.com
ALWAYS AT YOUR SERVICE--KEENTOOL
