• Model NO.：DWS-3
• Craft：Sinter, Injection, Ect
• Accessory：Steel Connecting Tubes
• Connection：Steel Rope with Plastic Injection
• Customized：Customized
• Manufacturing Arts：Sinter
• Brand：Jdk
• Fixing Methods：Rubber , Spring , Plastic
• Usage：Quarry , Block Cutting , Profiling
• Transport Package：Plastic Bag, Box, Carton, Wooden Case
• Specification：SGS, CE
• Trademark：JDK
• Origin：Quanzhou. China
• HS Code：84641020
• Production Capacity：1000meter,Week

Basic Info.

Model NO. DWS-3 Craft Sinter, Injection, Ect Accessory Steel Connecting Tubes Connection Steel Rope with Plastic Injection Customized Customized Manufacturing Arts Sinter Brand Jdk Fixing Methods Rubber / Spring / Plastic Usage Quarry / Block Cutting / Profiling Transport Package Plastic Bag, Box, Carton, Wooden Case Specification SGS, CE Trademark JDK Origin Quanzhou. China HS Code 84641020 Production Capacity 1000meter/Week

Product Description

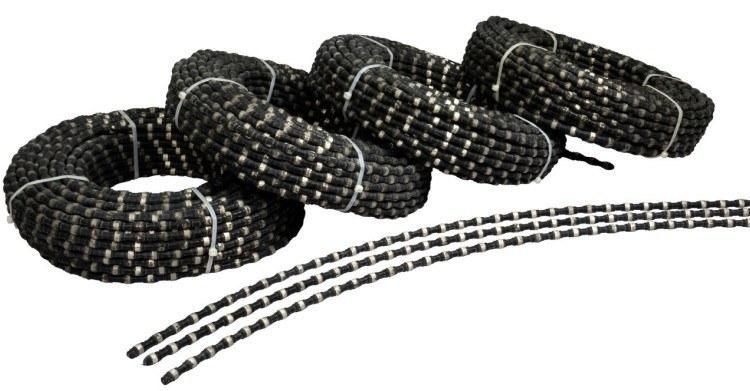

For Granite Profiling 9.0mm Diamond Beads Plastic Injection Diamond Wire Saw

Diameter	Application	Fixing methods	Beads/meter
11.5mm	Reinforced concrete cutting	Rubber injection	40
11.5mm	Granite quarrying	Rubber injection	40
11mm or  10.5mm	Marble quarrying	Rubber injection	40
11mm or 10.5mm	Marble quarrying	Spring holding up	28
10.5mm	Granite block squaring	Plastic injection	37
10.5mm	Marble block squaring	Plastic injection	33
7  to 9mm	Granite profiling	Plastic injection	37
7 to 8.5mm	Marble profiling	Plastic injection	33

Technology Parameter(quarrying)

Cutting material	Linear speed(m/s)	Cutting speed(m 2 /h )	Wire life(m 2 /m )
Hard granite	20-24	1-2	5-9
Mid-hard granite	22-26	2-4	6-12
Soft granite	24-28	4-8	8-18
Hard marble	28-23	4-8	20-30
Mid-hard marble	30-35	6-10	25-35
Soft marble	33-38	8-12	30-45

Other specification are available upon request.


Our Company


Material	Application	Diameter	Height	Length	Reinforcement	Beads/meter
Granite	Profiling	8	6	9.5	Plastic	37
Granite	Profiling	8.5	6	9.5	Plastic	37
Granite	Profiling	8.8	6	9.5	Plastic	37
Granite	Block Cutting	10.5	6.4	10	Plastic	37
Granite	Block Cutting	11	6.4	10	Plastic	37/40
Granite	Quarry	11	6.4	11.5	Plastic/Rubber	40
Granite	Quarry	11.5	6.4	11.5	Plastic/Rubber	40
Marble	Profiling	8	6	9.5	Plastic	37
Marble	Profiling	8.5	6	9.5	Plastic	37
Marble	Profiling	8.8	6	9.5	Plastic	37
Marble	Block Cutting	10.5	6.4	10	Plastic	37
Marble	Block Cutting	11	6.4	10	Plastic	37
Marble	Quarry	11	6	9.5	Spring	28
Marble	Quarry	11	6	9.5	Plastic	37
Marble	Quarry	11.5	6.4	11.5	Rubber	40
Concrete	Cutting	10.5	6.4	10	Rubber+Spring	40
Concrete	Cutting	10.5	6.4	10	Plastic+Spring	40
Concrete	Cutting	11.5	6.4	10	Rubber+Spring	40
Concrete	Cutting	11.5	6.4	10	Plastic+Spring	40

Attention:
If you only order diamond segments from us, to get the best performance, we would suggest you use high frequency Silver Welded machine to make the brazing.

Our Feature:
Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM

Our advantage:
1. Manufactory with more than 15 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.

Payment:
T/T, Western Union, L/C, Cash

Delivery day:
For samples, we can ship them within 3 days after receiving the deposit, for regular order, we need 3-7 days, depends on the quantity of your order.

Packaging:
Inner package is carton box, outside package are choose according to the transport way. By air used carton packing to reduce the weight and by sea, use wooden cases for waterproof.

Shipment:
For Less than 45kgs, we would suggest ship them by couriers by DHL, FedEx, UPS, EMS and so on. For 45-200kgs, if you need the cargo urgent, we would suggest ship them by air. And for very heavy and bulky cargo, by sea is our best choice.
