Concrete Cement Road Cutting Circular Diamond Cutting Blade
Quanzhou Keen Diamond Tool Co., Ltd.- Blade Type：Segmented
- Manufacturing Process：Sintered

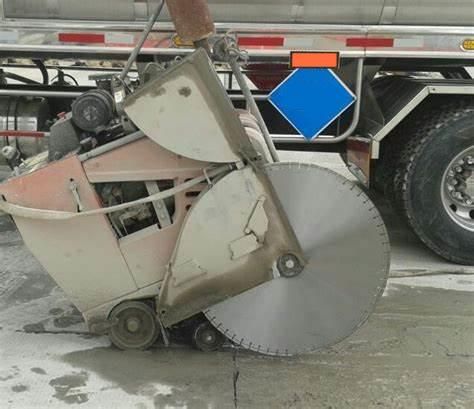

- Application：Asphalt and Concrete
- Item：Diamond Cutting Blade
- Diameter：From 350mm
- Technology：High Frequency Welding
Base Info
- Model NO.：350mm
- Material：Silent Core with Sintered Diamond Segment
- Transport Package：Carton
- Trademark：KEENTOOL
- Origin：China
- HS Code：82023100
- Production Capacity：1000PCS,Week
Description
DiameterLength
(mm) Width
(mm) Height
(mm) Segment No. Arbor size
(mm) Inch Metric(mm) 12" 300 40 3.0 10/12/15/20 21 50/60 14" 350 40 3.2 10/12/15/20 24 16" 400 40 3.4 10/12/15/20 28 18" 450 40 3.6 10/12/15/20 32 20" 500 40 4.0 10/12/15/20 36 24" 600 40 4.5 10/12/15/20 42 28" 700 40 5.0 10/12/15/20 50 32" 800 40 6.0 10/12/15/20 57 36" 900 24 6.5/7.5 13/15 64 100 40" 1000 24 6.5/7.5 13/15 70 48" 1200 24 7.0/8.0 13/15 80 64" 1600 24 8.2/9.2 13/15 108 72" 1800 24 9.0/10.0 13/15 120 80" 2000 24 9.5/10.5 13/15 128 110" 2500 24 11/12 15/20 140 120" 3000 24 11/12 15/20 160 135" 3500 24 12.5/13.5 15/20 180 150/200 155" 4000 24 13.5/14.5 15/20 200 165" 4200 24 13.5/14.5 15/20 210
