• Model NO.：CTSA
• Specification：115x10x22.23mm
• Trademark：Corediam
• Origin：China
• HS Code：82023910
• Production Capacity：1000PCS,Day

Basic Info.

Model NO. CTSA Specification 115x10x22.23mm Trademark Corediam Origin China HS Code 82023910 Production Capacity 1000PCS/Day

Product Description

1. Product Introduction
This type of blade is sinter hot-pressed. It is universal wet cutting blades, designed for professionally cutting and nondestructive grooving on ceramic, tile, porcelain, and you also can use it for cutting marble and granite. It can provide very fast, precise, smooth cutting with minimum chipping. Tile saw blades can be installed on Angle Grinder, Circular Saw, Tile Saw equipment. The tile will have a very clear edge during the cutting job.

2. Features:
- It can provide very fast, precise, smooth cutting with minimum chipping.
- The tile will have a very clear edge during the cutting job.
- These blades are used for professionally cutting ceramic tile and porcelain with good efficiency.
- Different grade to choose.


3. Specification

Item No.	Diameter	Segment Height	Segment Width	Arbor
CTSA105	105mm	7/10mm	1.7mm	22.23mm
CTSA115	115mm	7/10mm	1.7mm	22.23mm
CTSA125	125mm	7/10mm	1.7mm	22.23mm
CTSA150	150mm	7/10mm	1.7mm	22.23mm
CTSA180	180mm	7/10mm	1.7mm	22.23mm
CTSA200	200mm	7/10mm	1.7mm	22.23mm
CTSA230	230mm	7/10mm	1.7mm	22.23mm
CTSA250	250mm	7/10mm	1.7mm	22.23mm
CTSA300	300mm	7/10mm	2.2mm	25.4/50/60mm
CTSA350	350mm	7/10mm	2.4mm	25.4/50/60mm
CTSA400	400mm	7/10mm	2.6mm	25.4/50/60mm

OEM service offered.


4. Delivery time
Our leading time will be about 1 week for batch order.

5. Sinter Hot-pressed Diamond Saw Blade Manufacturing Technique
Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch

6. Packing and delivery.

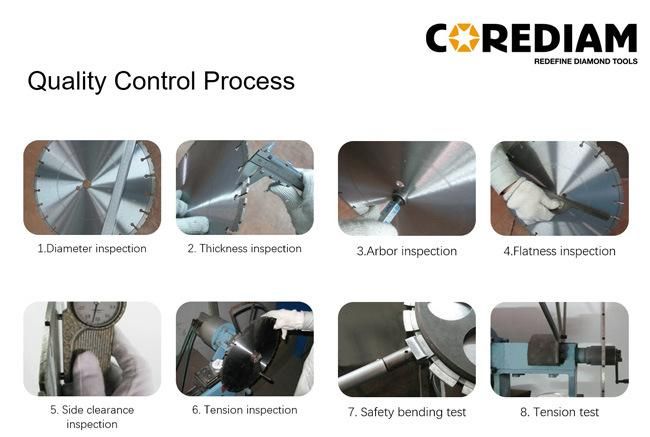

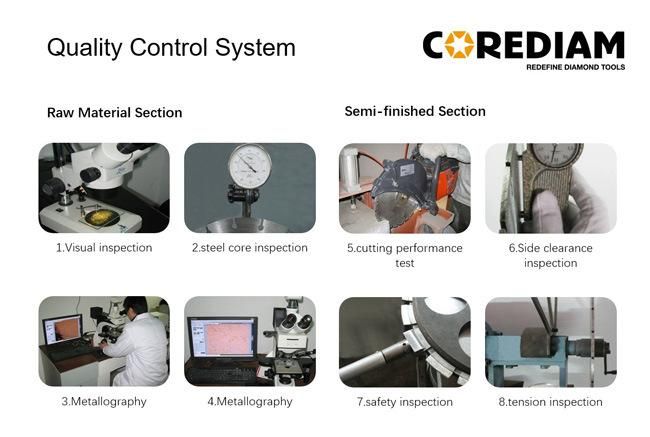

7. Corediam quatlity control system

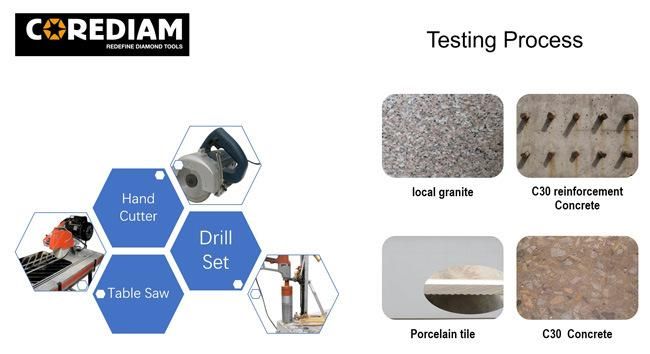

8. Testing process



9. Corediam sales network
