• Model NO.：JINGSTAR
• Testing：Hardness, Dimension Cutting Materialall Kinds of M
• Usage：Stone Cutting
• Kind：Diamond Segment
• Use：Marble, Limstone, Sandstone, Ceramatic, Porcelain
• Blade Size：300-3000mm
• Technology：High Frequency Welding, Laser
• Transport Package：Carton, Wooden Carton, etc
• Specification：24,40MM Length
• Trademark：JINGSTAR
• Origin：Fujian, China
• HS Code：82023990

DiameterSegment DimensionNO. on one bladeSegment LengthSegment ThicknessSegment Height350403.0/3.28/10/12/1524400403.4/3.68/10/12/1528450403.8/4.28/10/12/1532500404.0/4.28/10/12/1536600404.6/4.88/10/12/1542700405.0/5.28/10/12/1550800405.5/6.08/10/12/1557900246.0/6.812/13/15/20641000246.0/7.012/13/15/20701200246.5/7.512/13/15801600248.4/9.012/13/15/201081800249.1/9.712/13/15/2012020002410.5/1112/13/15/2012825002411/1212/13/15/2014030002411.5/12.520/25/3316035002412/12.520/26180Features

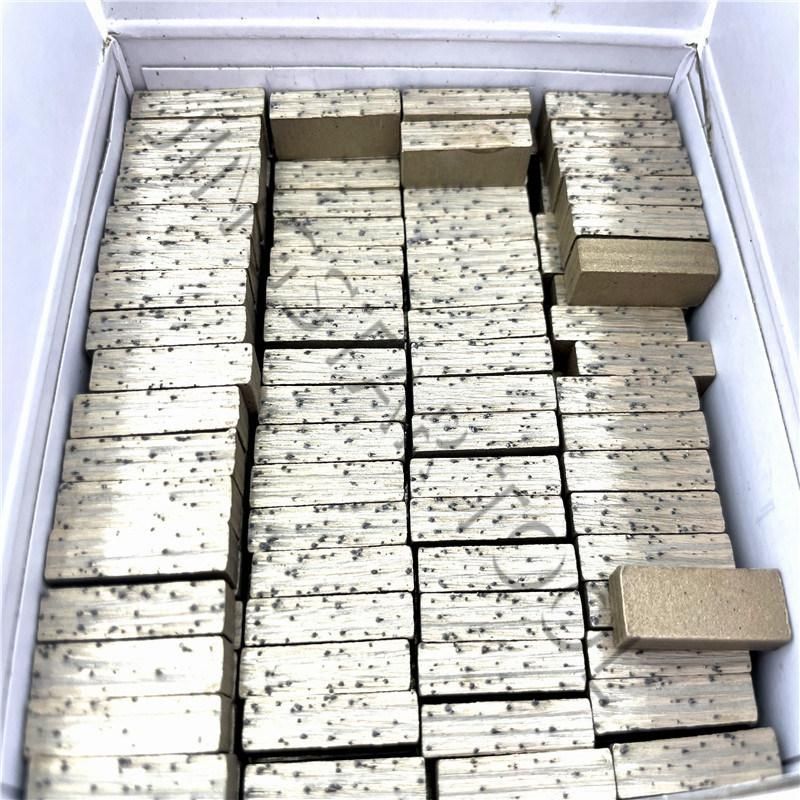

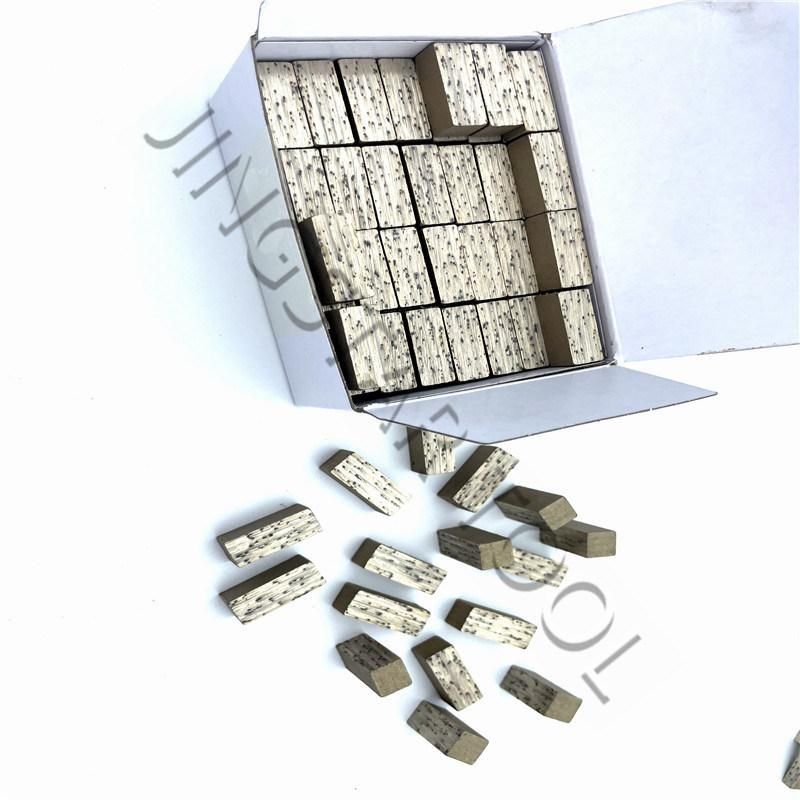

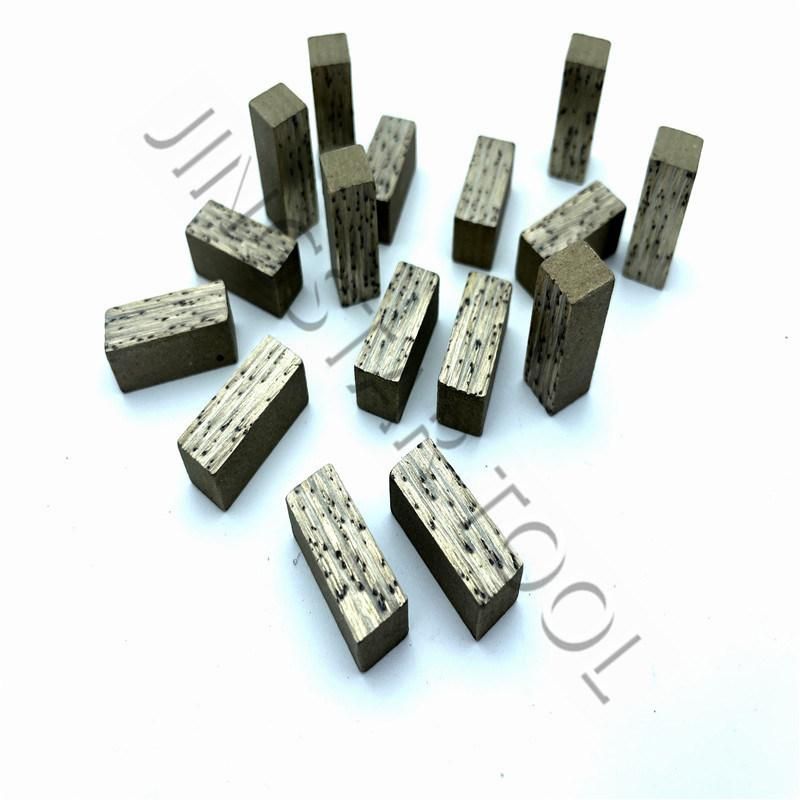

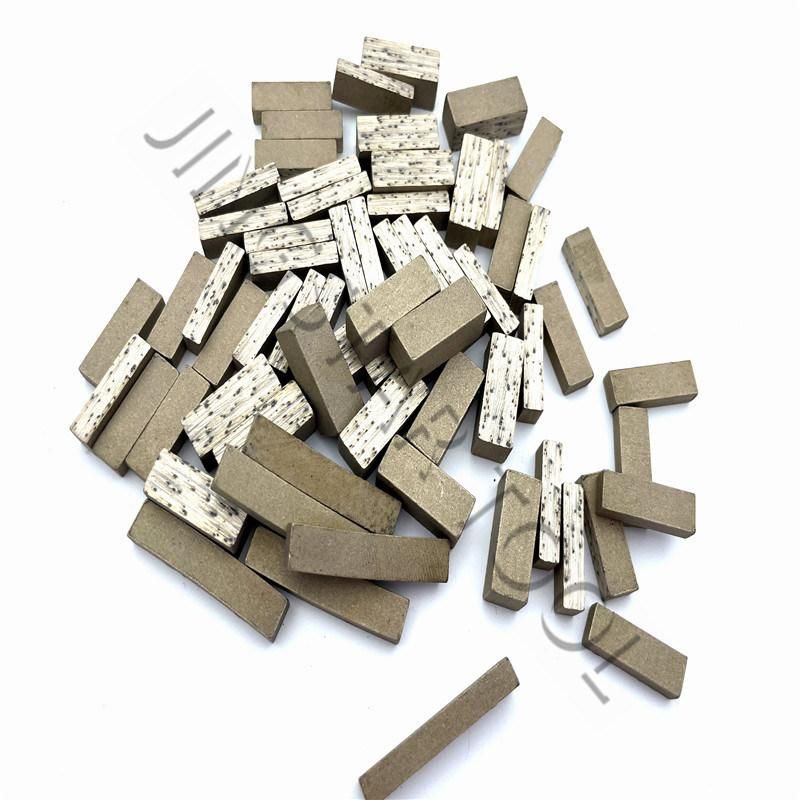

Diamond segment for cutting granite, marble, limestone, concrete, andesite, ceramic and so on.
The diamond segment for diamond saw blade from 200mm-4000mm.
Diamond segment type: Layer type, "K" type, "V" type, taper type, sandwich.
Diamond segment could be installed on diamond saw blade, gang saw blade, drill machine, grinding wheel, multi saw blade, single saw blade etc.
We can design different specification of diamond segment, it based on your requirements.
The diamond segment: High efficiency, sharp, high cutting speed, long life.
.
