• Model NO.：CCLD
• Trademark：Corediam
• Origin：China
• HS Code：82023910
• Production Capacity：50PCS,Day

Basic Info.

Model NO. CCLD Trademark Corediam Origin China HS Code 82023910 Production Capacity 50PCS/Day

Product Description

1. Product Introduction

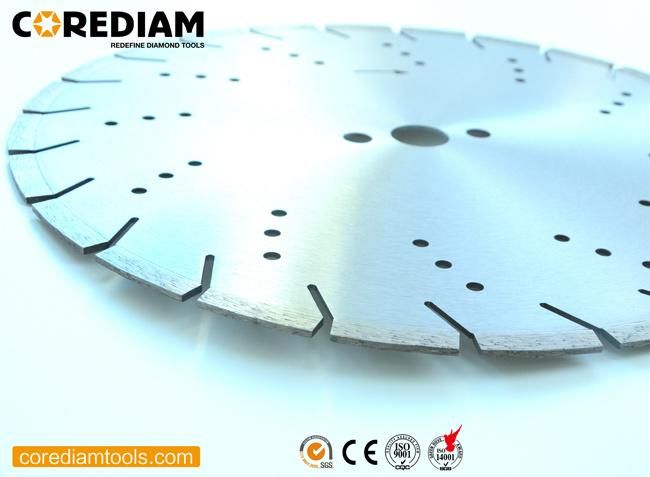

 This blade is laser welded by full-automatic laser welding production line, designed for universally dry and wet cutting for concrete, cured concrete, reinforced concrete, masonry, asphalt, green concrete and other kinds of construction materials. Narrow U slots are suitable for cooling and noise reduction.  It can be installed on the handheld circular saw, angle grinder, table saw. The diameter is 400mm, the segment height is 10mm.

Features of Laser Welded Turbo Saw Blade for General Purpose
1). Specially designed tilted slots segments improve cooling of blades and provide better removal of debris.
2). Due to laser welding technology, it can offer fast, smooth, safe cutting during your projects, having high performance/price ratio.
3). Maximizing the value with good performance.
4). Superior fast cutting
5). Sandwich structure turbo segment
6). Different grade to choose



2. Application

These blades are used for cutting green concrete,asphalt-concrete and other abrasive materials with superior efficiency.

3. Specification


Item No.	Diameter	Segment Height	Segment Width	Arbor
CCLD30010	300mm	10mm	3.2mm	20/25.4mm
CCLD35010	350mm	10mm	3.2mm	25.4mm
CCLD40010	400mm	10mm	3.2mm	25.4mm
CCLD45010	450mm	10mm	3.6mm	25.4mm
CCLD50010	500mm	10mm	3.6mm	25.4mm

OEM service offered.

4. Delivery time

Our leading time will be about 2 weeks for the batch order.

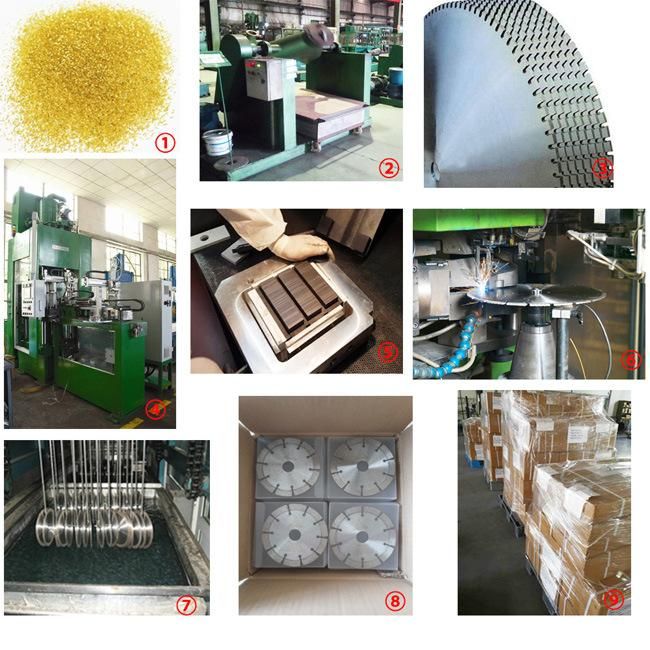

5. Laser Welded Diamond Saw Blade Manufacturing Technique
Raw material→ powder mixing → Steel core process → cold press → segment sintering → welding → surface treatment → package → dispatch



6. Corediam Introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.

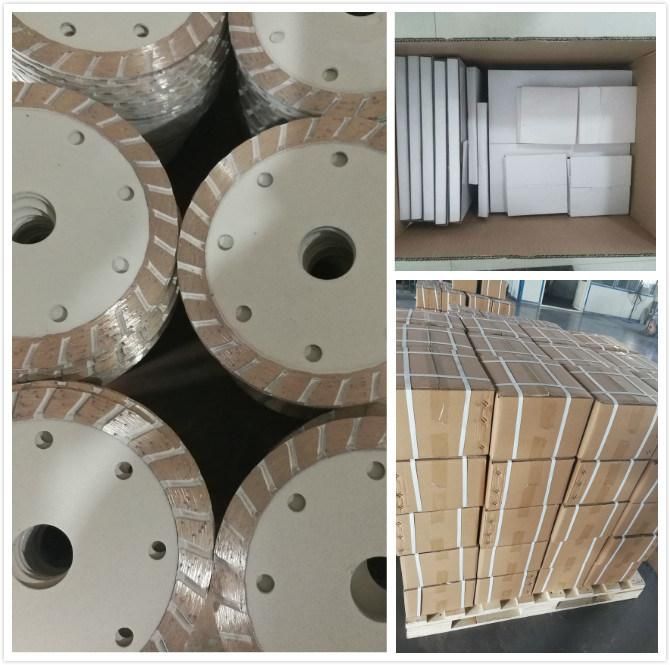

7.Packing and delivery.
