Nwg Hwg Nx Hx Cross Profile Impregnated Diamond Core Bit for Very Hard Rock Drilling
Changsha Miracleland Import & Export Co., Ltd.- Type：Core Drill
- Usage：Geotechnical Exploration, Mining Drill
- Certification：ISO
- Matrix Height：6mm-12mm
- Shape：Round
- Manufacturing Arts：Sinter
Base Info
- Model NO.：NWG HWG NX HX
- Kind：Diamond Drill
- Transport Package：Plywood Case & Carton
- Specification：WG
- Trademark：Csmiracleland
- Origin：Changsha, Hunan, China
- HS Code：8207191000
- Production Capacity：10, 000PCS,Year
Description
Basic Info.
Model NO. NWG HWG NX HX Kind Diamond Drill Transport Package Plywood Case & Carton Specification WG Trademark Csmiracleland Origin Changsha, Hunan, China HS Code 8207191000 Production Capacity 10, 000PCS/YearProduct Description
Impregnated bits can penetrate a broad range of formations from the softest to the hardest rocks. They are manufactured with very small, high quality synthetic diamonds mixed evenly through a tungsten carbide matrix. During drilling the matrix wears away evenly resulting in continuous exposure of new, sharp diamond points throughout the life of the bit.
All impregnated bits have T.C. and diamond gauge protection. The optimum diamond size, concentration and matrix composition varies according to the hardness and abrasiveness of the rock formations to be drilled.
Our impregnated bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum.
Crown Height:
We could offers crown impreg depths of 8mm, 10mm, 12mm and 14mm .The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.
Waterways:
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.
Size:
| Diamond Core Drill Bits Size Available: |
| AQ, BQ, BQ3, NQ, NQ2, NQ3 (NQTT), HQ, HQ3 (HQTT), PQ, PQ3... |
| T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-86, T2-101 |
| T6-76, T6-86, T6-101, T6-116, T6-131, T6-146 |
| T6S-76, T6S-86, T6S-116, T6S-131, T6S-146 |
| TBW, TNW, PWF, SWF, UWF, ZWF |
| AWG, BWG, NWG, HWG, AX, BX, NX, HX |
| EWM, AWM, BWM, NWM, HWM, AWT, BWT, NWT, HWT |
| LTK48, LTK60, BMLC, NMLC, HMLC |
| B36, B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| 36, 46, 56, 59, 75, 91, 110, 130, 150, 170, 219, 275... |

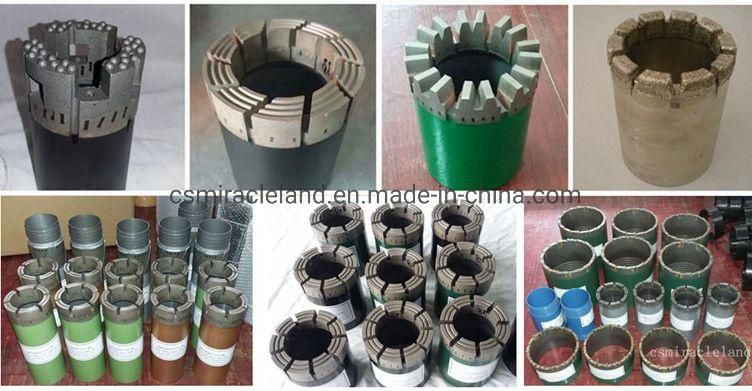

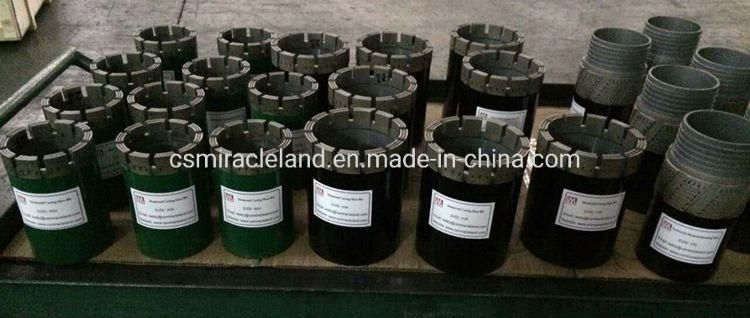

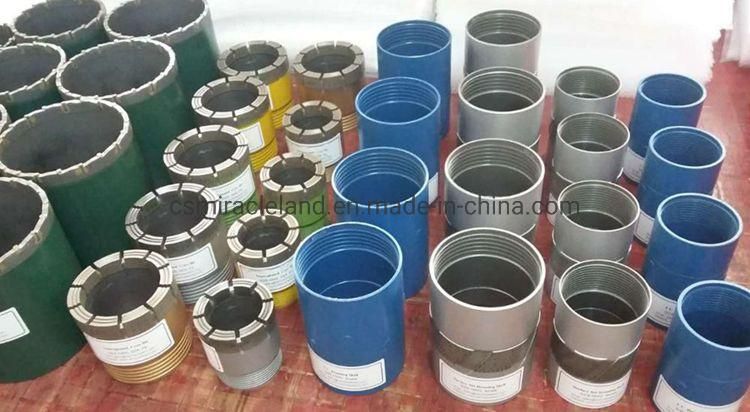

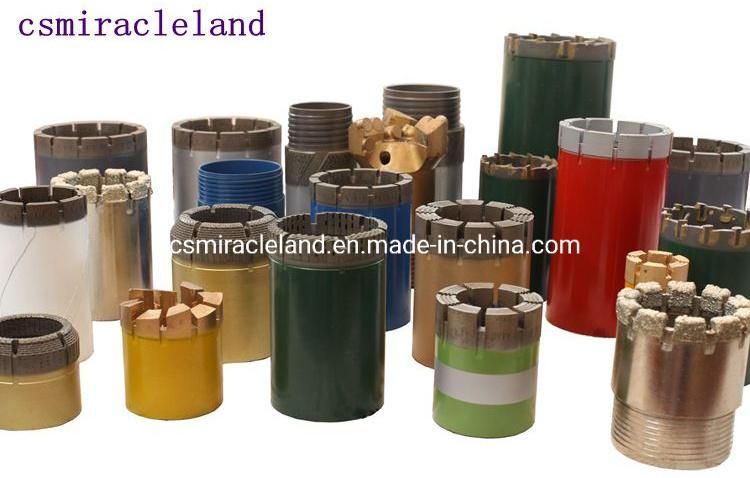

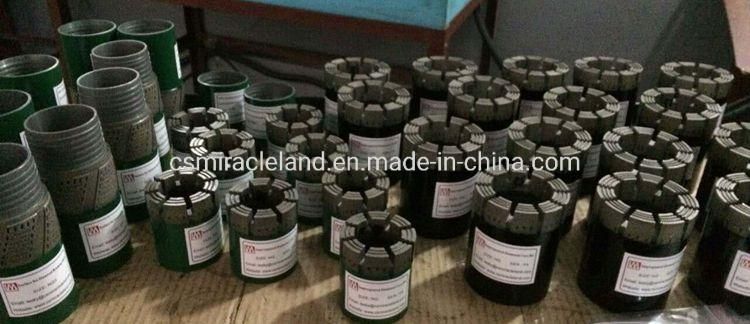

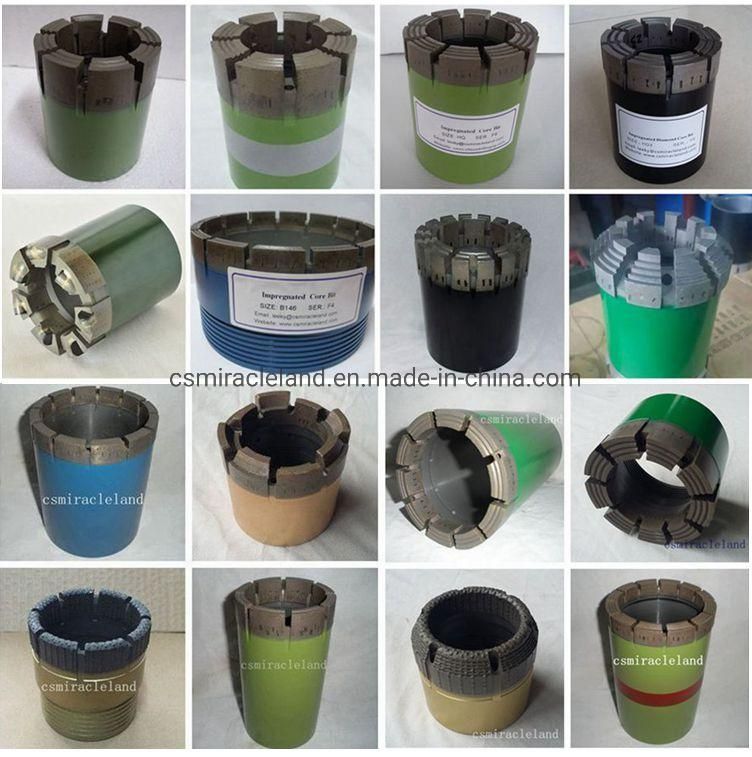

Related Pictures:

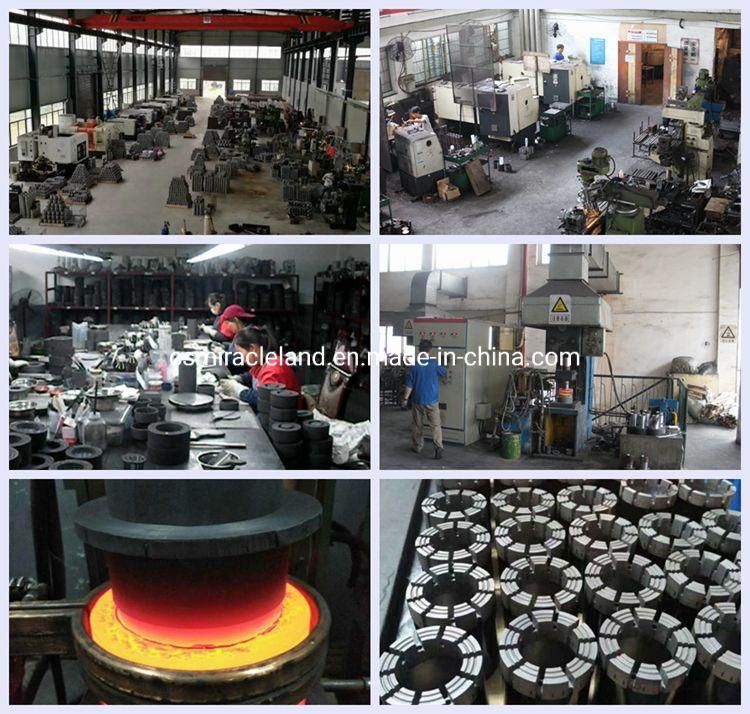

Production Flow:
Packaging & Shipping:
Using plywood case package for sea shipment, and using carton packages for air delivery.
