Diamond Tools

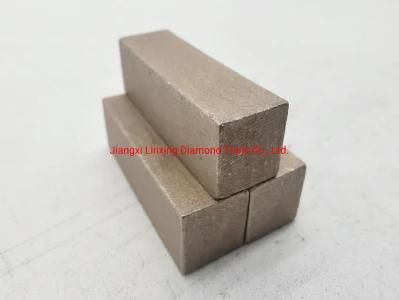

1200mm Single Diamond Segment for Cutting Natural Stone Travertine Segment 30*8*10

Jiangxi Linxing Diamond Tools Co., Ltd.
  • Type:Chemical Vapor Deposition Diamond
  • Surface Finishing:Ti-coated
  • Blade Material:Diamond
  • Feature:Good Sharpness
  • Application:Hard Travertine Cutting
  • Main Market:Kyrgyzstan, Kazakhstan, Tajikistan

Base Info

  • Segment Shape:Layer or Sandwish Type
  • MOQ:3 Sets
  • Transport Package:Waterproof and Damageproof Standard Packaging Cart
  • Specification:30*8*10mm
  • Trademark:Linsing
  • Origin:Shangrao, China
  • Production Capacity:15000PCS,Day

Description

Basic Info.

Segment Shape Layer or Sandwish Type MOQ 3 Sets Transport Package Waterproof and Damageproof Standard Packaging Cart Specification 30*8*10mm Trademark Linsing Origin Shangrao, China Production Capacity 15000PCS/Day

Product Description

LINSING diamond segment features:
1:The segments has good sharpness and high efficiency at the process of stone cutting.
2:Good cutting result: smooth cutting, flat surface and even size,.
3:Stable cutting,narrow cutting gap, stone waste reduction.
4:Good sharpness cutting in high speed without chipping, less noise in work and save power
5:Long life span and stable cutting performance.
6:smooth cutting, flat surface and even size cutting result.
7:Good segment shape easy for diamond opening.
8:High cost-effective.

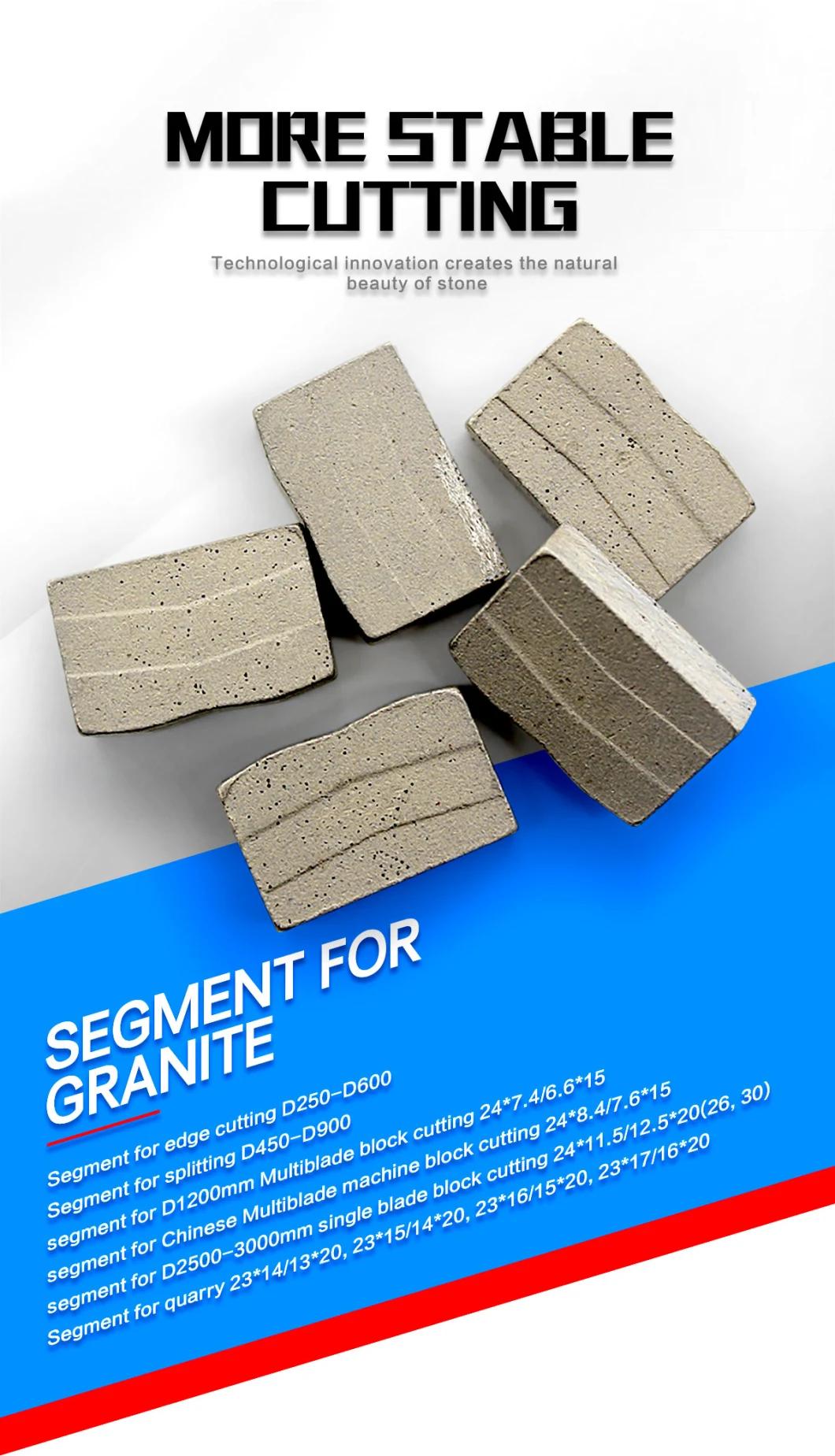

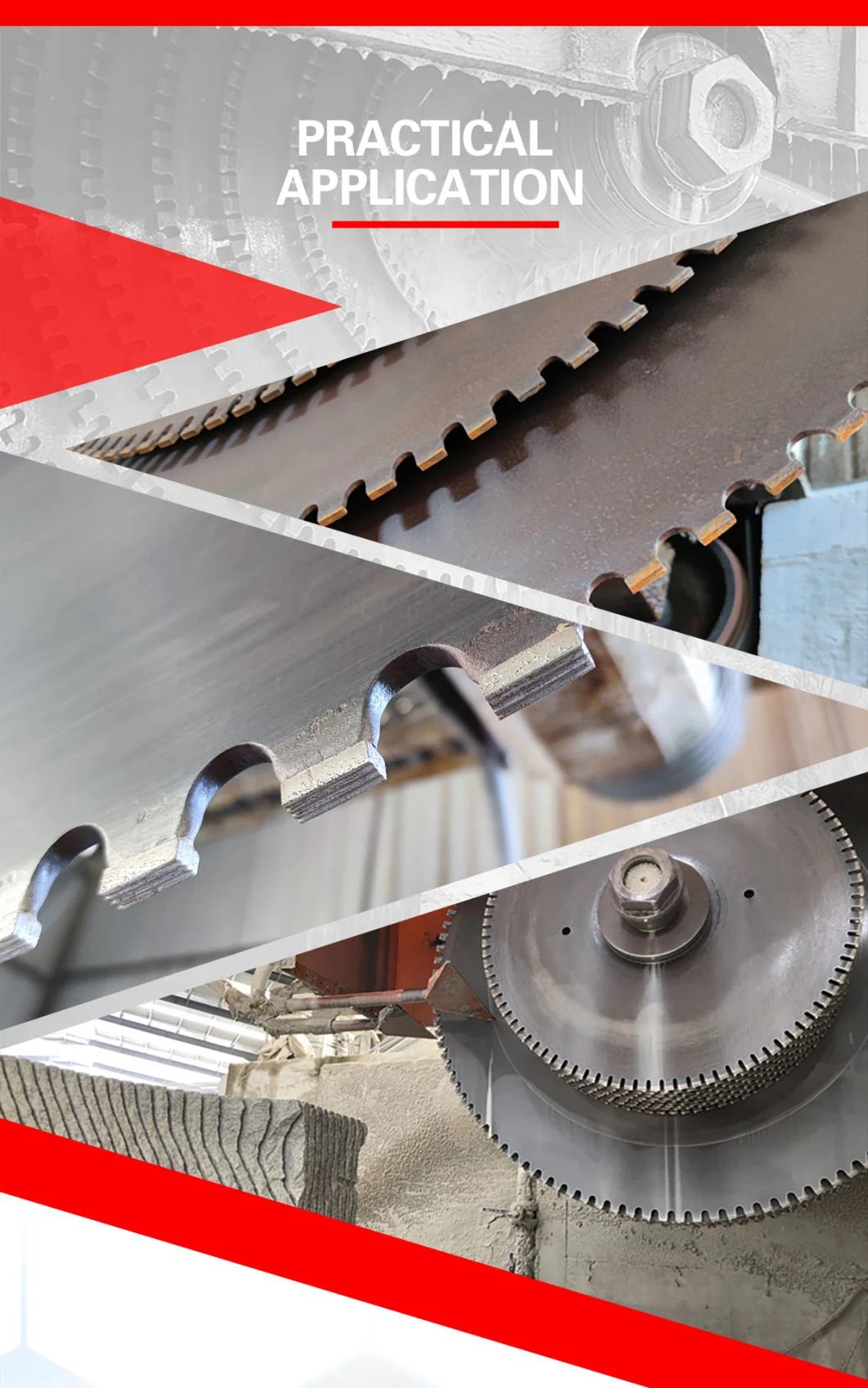

Product application:
Segment for edge cutting D250-D600
Segment for splitting D450-D900
segment for D1200mm Multiblade block cutting 24*7.4/6.6*15
segment for Chinese Multiblade machine block cutting 24*8.4/7.6*15
segment for D2500-3000mm single blade block cutting 24*11.5/12.5*20(26, 30)
Segment for quarry 23*14/13*20, 23*15/14*20, 23*16/15*20, 23*17/16*20

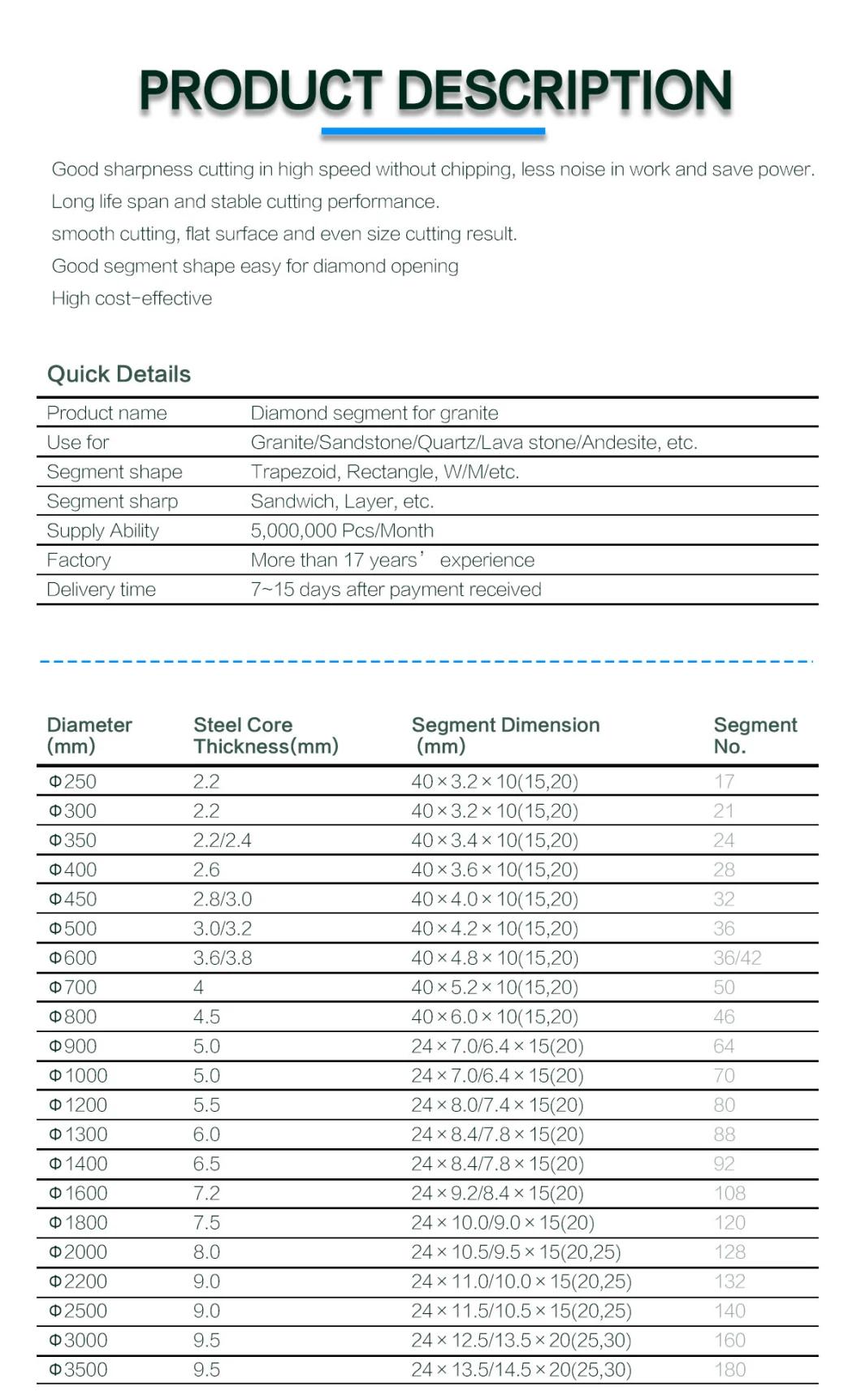

Product dimension:
Diameter (mm)Steel Core Thickness(mm)Segment Dimension (mm)Segment No.
Φ3002.240×3.2×10(12,15)21
Φ3502.2/2.440×3.4×10(12,15)24
Φ4002.640×3.6×10(12,15,20)28
Φ4502.8/3.040×4.0×10(12,15,20)32
Φ5003.0/3.240×4.2×10(12,15,20)36
Φ6003.6/3.840×4.8×10(12,15,20)36/42
Φ700440×5.2×10(12,15,20)42
Φ8004.540×6.0×10(12,15,20)46
9005.0 24×7.0/6.4×12(15,20)64
10005.0 24×7.0/6.4×12(15,20)70
12005.5 24×8.0/7.4×12(15,20)80
13006.0 24×8.4/7.8×12(15,20)88
14006.5 24×8.4/7.8×12(15,20)92
16007.2 24×9.2/8.4×12(15,20)108
18007.5 24×10.0/9.0×12(15,20)120
20008.0 24×10.5/9.5×15(20,25)128
22009.0 24×11.0/10.0×15(20,25)132
25009.0 24×11.5/10.5×15(20,25)140
30009.5 24×12.5/13.5×20(25,30)160
35009.5 24×13.5/14.5×20(25,30)180
Other specifications are available upon request.For different blade and stones, customized segment size and numbers will be suggested and LINXING can supply different specifications and diameters as per customer's requirement.
