• Model NO.：CY-4001
• Warranty：One Year
• Certificate：Ce,TUV
• Transport Package：Wooden Box
• Specification：dia. 1000mm
• Trademark：CY
• Origin：Zhengzhou, China
• HS Code：8464101000
• Production Capacity：230 Sets Per Month

Basic Info.

Model NO. CY-4001 Warranty One Year Certificate Ce/TUV Transport Package Wooden Box Specification dia. 1000mm Trademark CY Origin Zhengzhou, China HS Code 8464101000 Production Capacity 230 Sets Per Month

Product Description

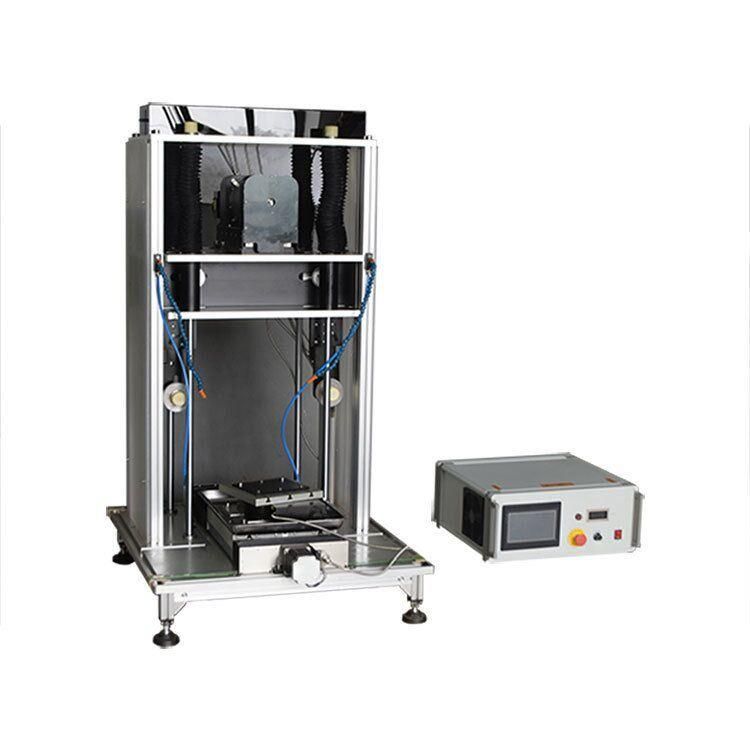

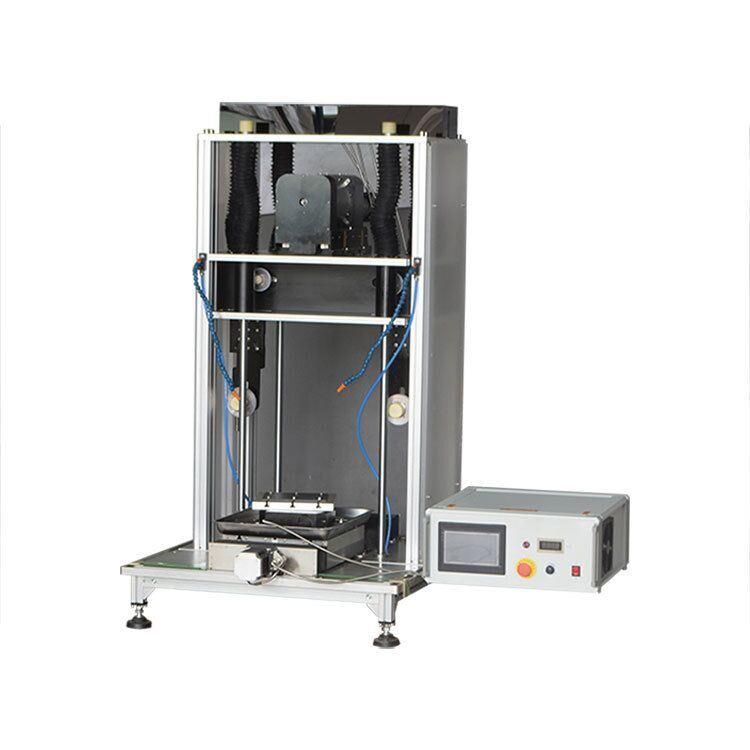

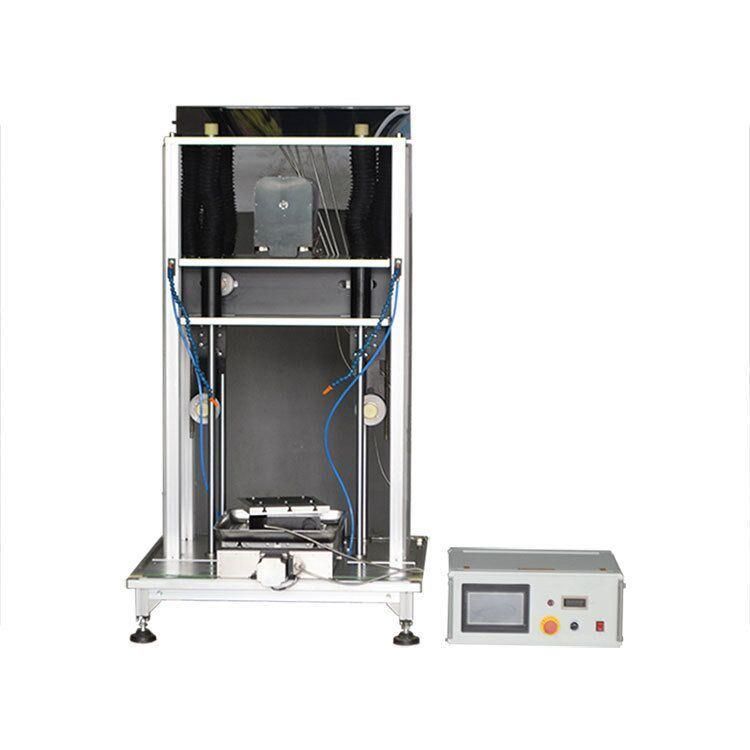

Larger Precision Diamond Wire Cutting Saw with 3D Sample Stage - 40" Dia Cutting Capability
 is a CE certified large precision diamond wire cutting saw. It is designed to provide the smooth cutting or slicing for all kinds of materials (especially for larger size crystals, such as Si, CaF, glass, and sapphire, etc.) with the diameter up to 40" (1000 mm).  It cuts the sample by a diamond impregnated wire (0.28 mm diameter) which moves back and forth repeatedly with the help of a digital controller.


Power Supply	AC208-24 VAC, 50/60 Hz, 6000W, Single Phase
Cutting Speed	0.05 - 100 mm/ minute adjustable
Wire Moving Speed	0 - 5 Meter/ second variable

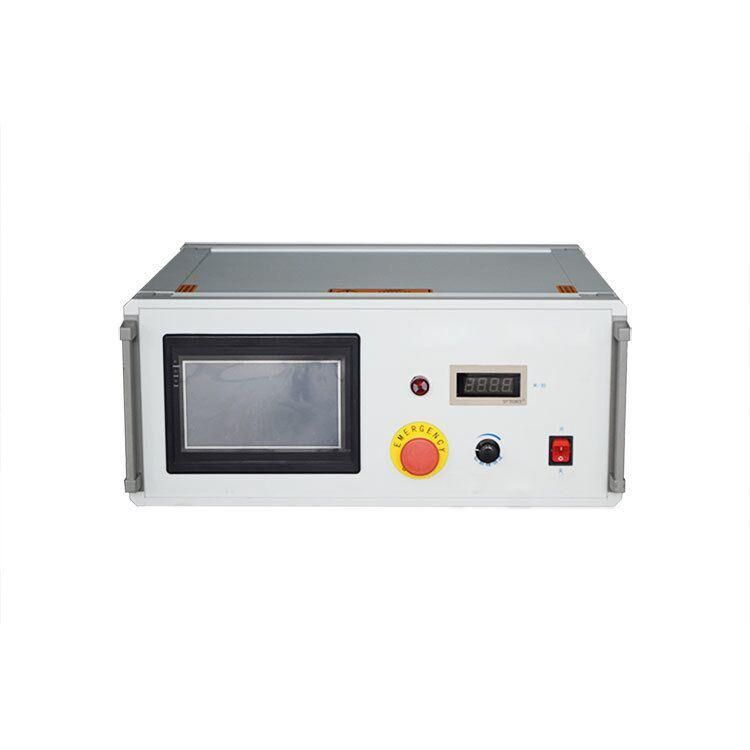

Controller	6" color LCD touchscreen control unit allows you to set the program to control the Moving Speed of the diamond wire, feeding speed of the sample stage, the slicing thickness, and coolant pump operation.
Sample Stage	The sample stage can move in the X-axis and rotate towards two directions (clockwise and counter-clockwise) for precision orientation. Max. Load Capacity: 1500KG
Diamond wire	Ø 0.65mm x  400 m Length
Cutting Area	Ø1000mm × 1000mm
Wire Tension	Built-in pneumatic valves can easily adjust the tension of cutting wire. (air pump with >20 PSI pressure is required, but not included)
Cooling	Circulating water/coolant system by two water pumps (included)
Product Dimensions	Wire saw: 2850mm L x 1850mm W x 3500 mm H
Warranty	One years limited, not include the diamond wire and rusty parts
Certification	CE Certified.
