Dia 11mm Rubber Diamond Quarry Wire Saw Rope Marble Cutting
Fujian Quanzhou Huazuan Diamond Tools Co., Ltd.- Application：Reinforce Concrete Cutting
- Type：Power Tool Part
- Beads Number：40PCS,Meter
- Transport Package：Inner Package Is Carton Box
- Specification：diameter 11mm
- Trademark：HUAZUAN
Base Info
- Model NO.：HZ-EDWS080606
- Origin：China
- Production Capacity：100000
Description
Basic Info.
Model NO. HZ-EDWS080606 Origin China Production Capacity 100000Product Description
Dia 11mm Rubber Diamond Quarry Wire Saw Rope Marble Cutting
Product Description
Application |
1.For Stone Quarry,Block Squaring&Chamfering,Profiling Cutting 2.For Cutting Reinforce Concrete
|
Diameter Of Wire Saw | 7.2mm, 8.0mm, 8.5mm,9.0mm,11.0mm,11.5mm |
Technology | Sintered,Electroplated,Vaccum Brazed |
Coating Fix Injection | Plastic,Rubber,Spring,Rubber+Spring,Plastic+Spring |
Beads/Meter | 40/37/33/28/26pcs |
Attention |
l. Checking the saw regularly and adjust timely. 2.Checking the pearl abrade regularly,Avoid the eccentric wear
|

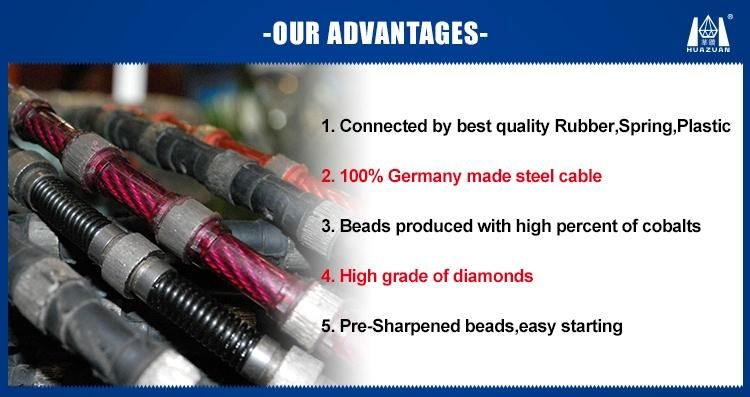

Feature | 1.Very less breakage ratio when using therefore increase the working lifetime. 2.Automatic production ensures stable quality performance. 3.Safe, high efficiency and environment protecting. |

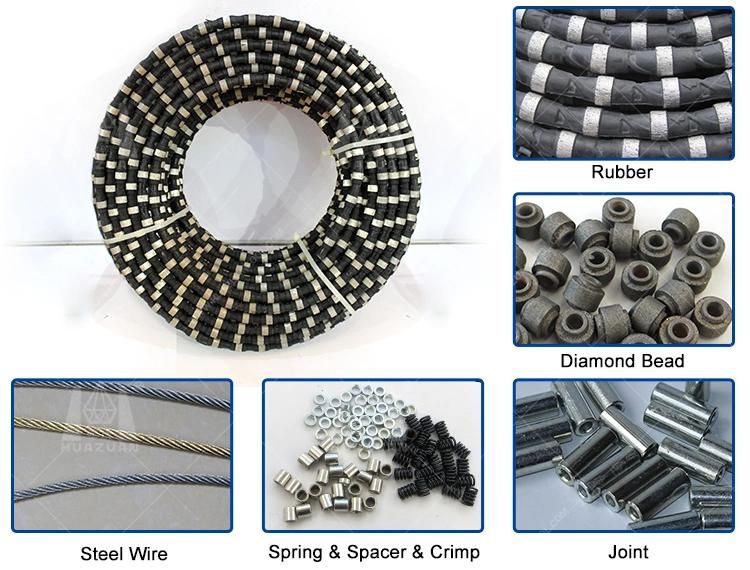

We recommend rubber wire,it can protect the wire saw rope very well and increase the wire's strength.
The rubber has good temperature resistance, and it can be used when water is not enough.
Strong flexibility can reduce the cut-in-one-side problem.
Diameter(mm) | Applications | Coating | Bead/m | Cutting Speed(m2/h) | Wire Life(m2/m) |
Φ11.5/Φ10.5 | Reinforced concrete | rubber+spring | 40 | 0.5-5 | 0.5-8 |
Φ11.5/Φ11.0 | Granite mine/quarry | rubber/rubber+spring | 40 | 2-12 | 7-22 |
Φ11.5/Φ11.0/Φ10.5 | Marble mine/quarry | spring/spring+plastic | 28-40 | 4-20 | 15-50 |
Φ11.0/10.5 | Granite & marble block | plastic/rubber | 37/40 | 6-30 | 7-50 |
Φ8.8/Φ8.5 | Granite&marble profiling | plastic/rubber | 33/37/40 | 7-30 | 7-40 |
Φ7.2/Φ8.5 | Granite slab | plastic | 37 | 0.5-1.6 | 6-15 |
2. Diamond Wire Saw for Block Dresssing
3. Diamond Wire Saw for Profiling
