• Model NO.：CCLE
• Trademark：Corediam
• Origin：China
• HS Code：82023910
• Production Capacity：50PCS,Day

Basic Info.

Model NO. CCLE Trademark Corediam Origin China HS Code 82023910 Production Capacity 50PCS/Day

Product Description

1. Product Introduction

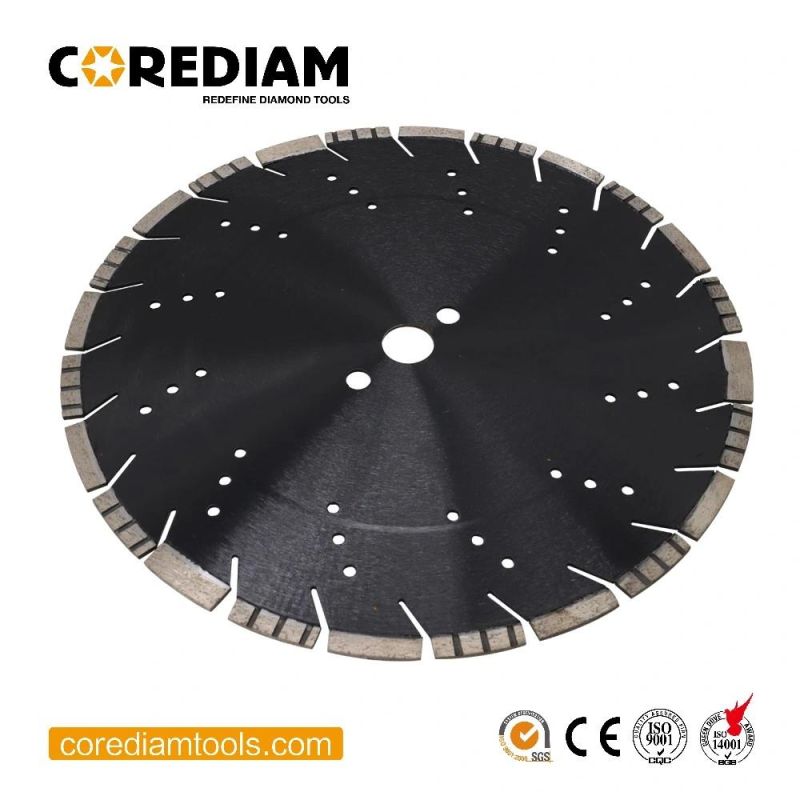

Diamond Concrete Blade  is laser welded, in this state we make the segmented saw blade have high strength and also improve its cutting performance. The laser welded concrete saw blade can be installed on handheld saw, floor saw, walk-behind saw, using for dry or wet cutting concrete, cured concrete, green concrete reinforced concrete cutting. Concrete saw blades have good cutting performance, fast cutting speed, and long life.

2. Features of Concrete diamond saw blade

1). Laser welded technology, the segmented type with efficient cutting all range of materials.
2). Both Dry and Wet Use.
3). Maximizing the value with good performance.
4). Easy and smooth cutting
5). Long cutting life
6). Different grade to choose



3. Application

These blades are used for cutting various kinds of cured concrete, reinforced concrete, concrete slab with superior efficiency.

4. Specification


Item No.	Diameter	Segment Height	Segment Thickness	Arbor
CCLE30012	300mm	12mm	3.2mm	20/25.4mm
CCLE35012	350mm	12mm	3.2mm	25.4mm
CCLE40012	400mm	12mm	3.4mm	25.4mm
CCLE45012	450mm	12mm	3.4mm	25.4mm
CCLE50012	500mm	12mm	3.6mm	25.4mm

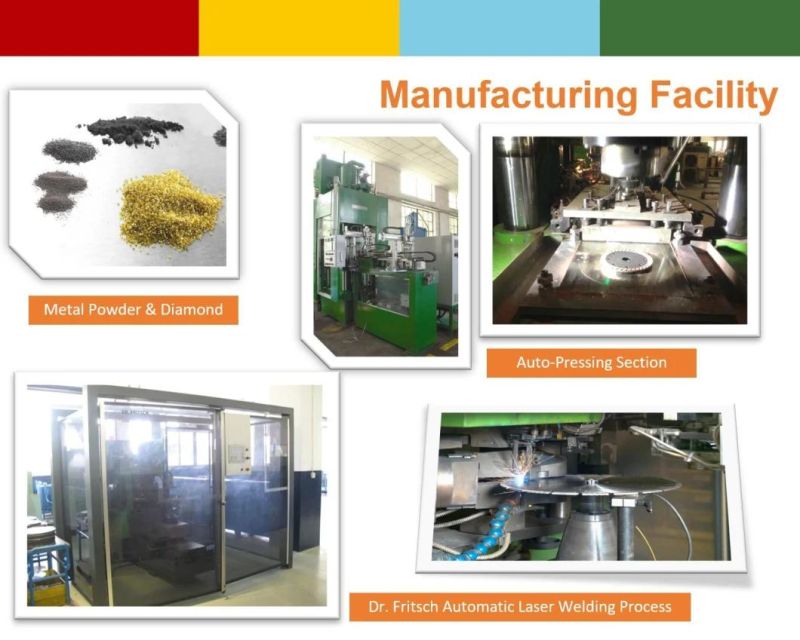

5. Manufacturing & QC





6. Delivery time&Packing

Our leading time will be about 2-3 weeks for the batch order.
For sample test, we can finish preparation within 2 weeks




7. Corediam Introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
