• Model NO.：STBC
• Certificate：En13236
• Abor：22.23mm
• Segment Width：9mm
• Transport Package：Carton
• Specification：125x9x22.23mm
• Trademark：COREDIAM
• Origin：China
• HS Code：82023910
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. STBC Certificate En13236 Abor 22.23mm Segment Width 9mm Transport Package Carton Specification 125x9x22.23mm Trademark COREDIAM Origin China HS Code 82023910 Production Capacity 10000PCS/Month

Product Description

1. Introduction

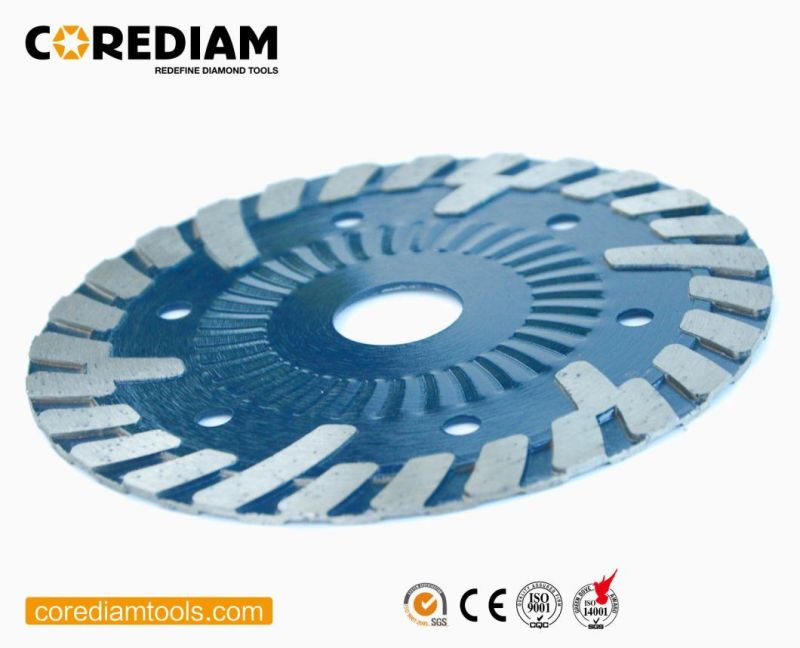

 This turbo type blade can be widely used in wet cutting granite, marble and other stone materials with good efficiency. It is sinter hot-pressed. The diameter of this turbo type blade is 125mm, the segment height is 9mm,
The quality level is premium. This type blade is with wave steel core. Turbo segments for better cooling and better dust removal, the deep segments can well be protected the blades from undercutting.

2. Cutting materials & equipment
Cutting materials: granite, marble and other stone materials with good efficiency.
Install equipment: angle grinder, circular saw, tile saw

3. Features:
 - Light, easily-carried
 - Universal dry and wet cutting blades.
 - Turbo segment for better cooling and better dust removal, the deep segment style can well be protected the blades from undercutting.
- The wave steel core improves blade rigidity, reduces friction, avoids wobbling during cutting and is a better removal of filings.


4. Production process.
Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch

5. Delivery time
Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.

For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.

Specification  for reference: (others also availiable as per required)

Item No.	Diameter	Segment Height	Segment Width	Arbor
STBC10509	105mm	9mm	2.2mm	22.23mm
STBC11509	115mm	9mm	2.2mm	22.23mm
STBC12509	125mm	9mm	2.2mm	22.23mm
STBC15009	150mm	9mm	2.2mm	22.23mm
STBC18009	180mm	9mm	2.5mm	22.23mm
STBC23009	230mm	9mm	2.7mm	22.23mm
STBC30012	300mm	12mm	3.0mm	25.4mm
STBC35012	350mm	12mm	3.0mm	25.4mm

6.Packing and delivery.


7. Quality Control System.

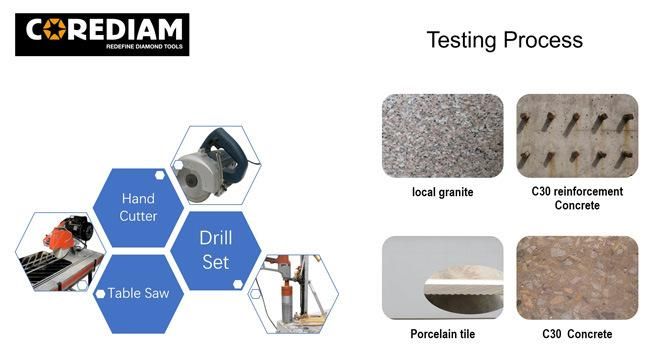

8. Corediam testing process

9. Corediam sales network
