102mm Diamond Reinforced Concrete Three-Piece Core Drill with High Efficiency-Lengthening Drilling/Diamond Tool
Shijiazhuang Corediam Tools Technology Co., Ltd.- Type：Core Drill
- Usage：Masonry Drilling, Reinforced Conrete Drilling
- Manufacturing Technology：Brazing
- Segment Height：10mm
- Application：Wet Drilling Concrete, Reinforced Concrete
- Installing Equipment：Stand Core Driller, Hand-Held Drillers
Base Info
- Model NO.：CTCD
- Transport Package：Carton, Case, Pallet
- Specification：25mm-500mm
- Trademark：COREDIAM
- Origin：China
- HS Code：82071910
- Production Capacity：2000 Pieces Per Month
Description
Basic Info.
Model NO. CTCD Transport Package Carton, Case, Pallet Specification 25mm-500mm Trademark COREDIAM Origin China HS Code 82071910 Production Capacity 2000 Pieces Per MonthProduct Description

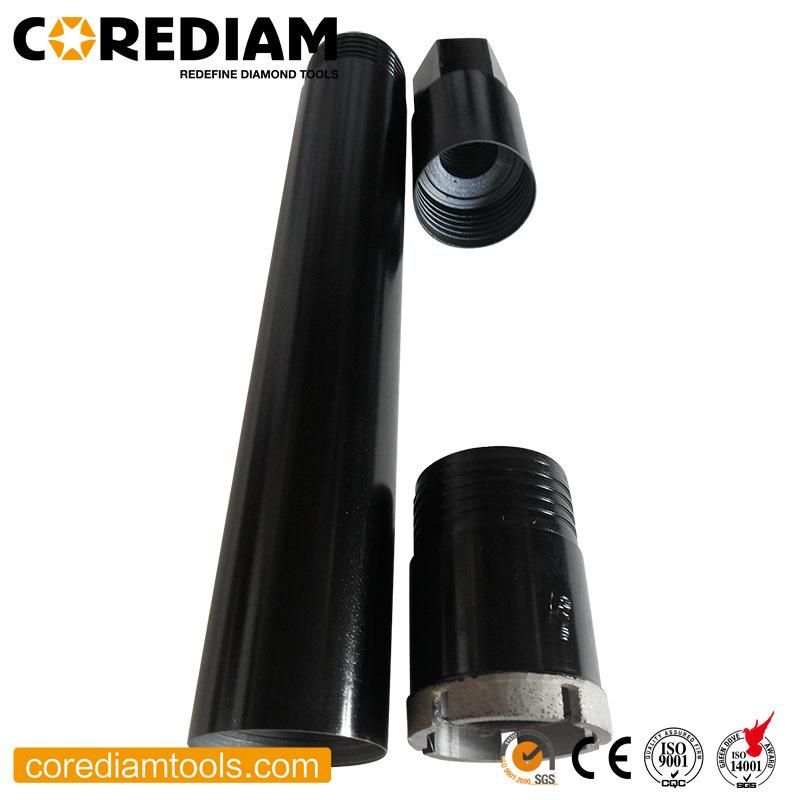

1.Three-piece diamond core drill introductionThis type of core drill is brazed, the segment height is 10mm, segment shape can be customized, working length is 450mm, OEM working length accept. It can be widely used in wet drilling concrete, reinforced concrete structures, fast drilling with a reasonable lifespan.
2. Features:
- Long drilling, you can add steel tube to achieve any length drilling job.
- Suitable: wet drilling concrete, reinforced concrete, masonry with superior efficiency.
- very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill has the reasonable lifespan.
3.Specification
| Item No. | Diameter | Core Bit Length | Steel Tube Length | Adapter Length | Total Length | Barrel Thickness |
| CTCD02509 | 1" | 50mm | 300mm | 100mm | 420mm | 2.6mm |
| CTCD03209 | 1-1/4" | 55mm | 300mm | 100mm | 415mm | 2.6mm |
| CTCD03809 | 1-1/2" | 65mm | 300mm | 100mm | 405mm | 2.6mm |
| CTCD05109 | 2" | 65mm | 300mm | 100mm | 405mm | 2.6mm |
| CTCD06209 | 2-1/2" | 70mm | 300mm | 100mm | 410mm | 2.6mm |
| CTCD07509 | 3" | 70mm | 300mm | 100mm | 410mm | 2.6mm |
| CTCD08809 | 3-1/2" | 70mm | 300mm | 100mm | 410mm | 2.6mm |
| CTCD10809 | 4" | 100mm | 300mm | 100mm | 440mm | 3.0mm |
| CTCD12609 | 5" | 120mm | 300mm | 100mm | 460mm | 3.0mm |
| CTCD15809 | 6" | 120mm | 300mm | 100mm | 460mm | 3.0mm |
| CTCD17809 | 7" | 120mm | 300mm | 100mm | 460mm | 3.0mm |
| CTCD20309 | 8" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
| CTCD22809 | 9" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
| CTCD25209 | 10" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
| CTCD30009 | 12" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
| CTCD35009 | 14" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
| CTCD40009 | 16" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
| CTCD45009 | 18" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
| CTCD50009 | 20" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
4.Delivery time
2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.
5. Corediam quality control system
6.Corediam service
We accept customized lengths and segments for wet core drills.
Also, we help to design the total solution of core drilling projects.
7. Packing and Delivery
8. Corediam sales network
