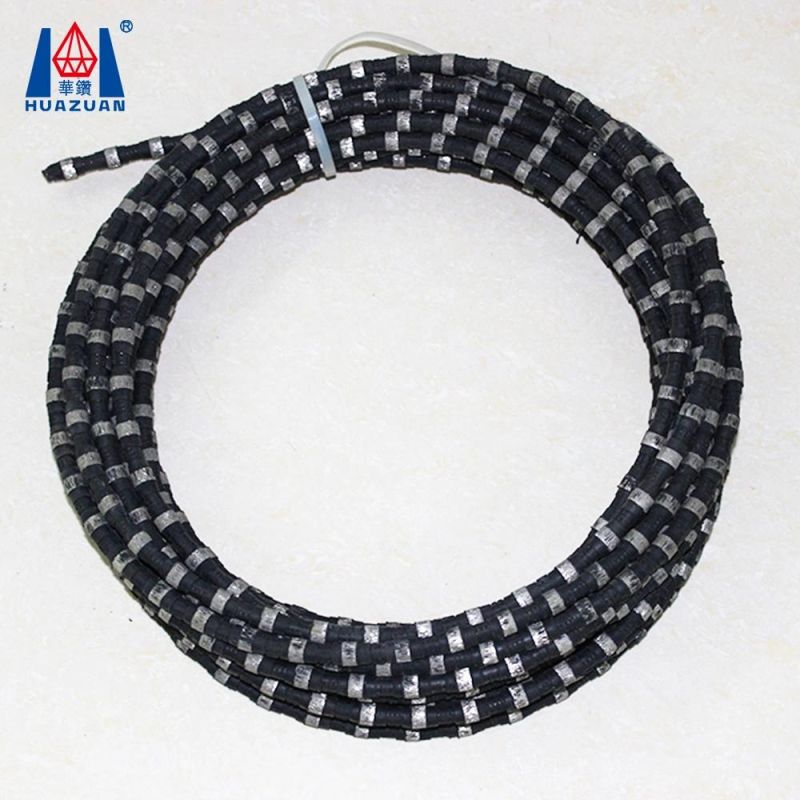

Dia 11-11.5 Granite Rubber Sintered Diamond Wire Cutting Rope Saw for Stone Cutting
Fujian Quanzhou Huazuan Diamond Tools Co., Ltd.- Application：Granite Quarrying, Squaring
- Type：Power Tool Part
- Transport Package：Inner Package Is Carton Box
- Specification：diameter 11-11.5mm
- Trademark：HUAZUAN
- Origin：China
Base Info
- Model NO.：HZ-EDWS080602
- Production Capacity：100000
Description
Basic Info.
Model NO. HZ-EDWS080602 Production Capacity 100000Product Description
Dia 11-11.5 Granite Rubber Sintered Diamond Wire Cutting Rope Saw for Stone Cutting
Product Description
*Other Specification of Diamond Wire Saw Are Aviable Upon your request.
Our service
Diameter(mm) | Applications | Coating | Bead/m | Cutting Speed(m2/h) | Wire Life(m2/m) |
Φ11.5/Φ10.5 | Reinforced concrete | rubber+spring | 40 | 0.5-5 | 0.5-8 |
Φ11.5/Φ11.0 | Granite mine/quarry | rubber/rubber+spring | 40 | 2-12 | 7-22 |
Φ11.5/Φ11.0/Φ10.5 | Marble mine/quarry | spring/spring+plastic | 28-40 | 4-20 | 15-50 |
Φ11.0/10.5 | Granite & marble block | plastic/rubber | 37/40 | 6-30 | 7-50 |
Φ8.8/Φ8.5 | Granite&marble profiling | plastic/rubber | 33/37/40 | 7-30 | 7-40 |
Φ7.2/Φ8.5 | Granite slab | plastic | 37 | 0.5-1.6 | 6-15 |
2. Diamond Wire Saw for Block Dresssing
3. Diamond Wire Saw for Profiling
4. Diamond Wire Saw for Reinforce Concrete Cutting
5.Diamond Multi-Wire Saw For Slab Cutting
