• Model NO.：5inch
• Production Capacity：10000pieces,Day

Basic Info.

Model NO. 5inch Production Capacity 10000pieces/Day

Product Description

1. Continuous edge saw blade: continuous serrated diamond saw blade is generally made by sintering method. Bronze binder is commonly used as basic matrix material.

2. Caky saw blade: sawtooth separation, fast cutting speed, suitable for dry and wet cutting methods.

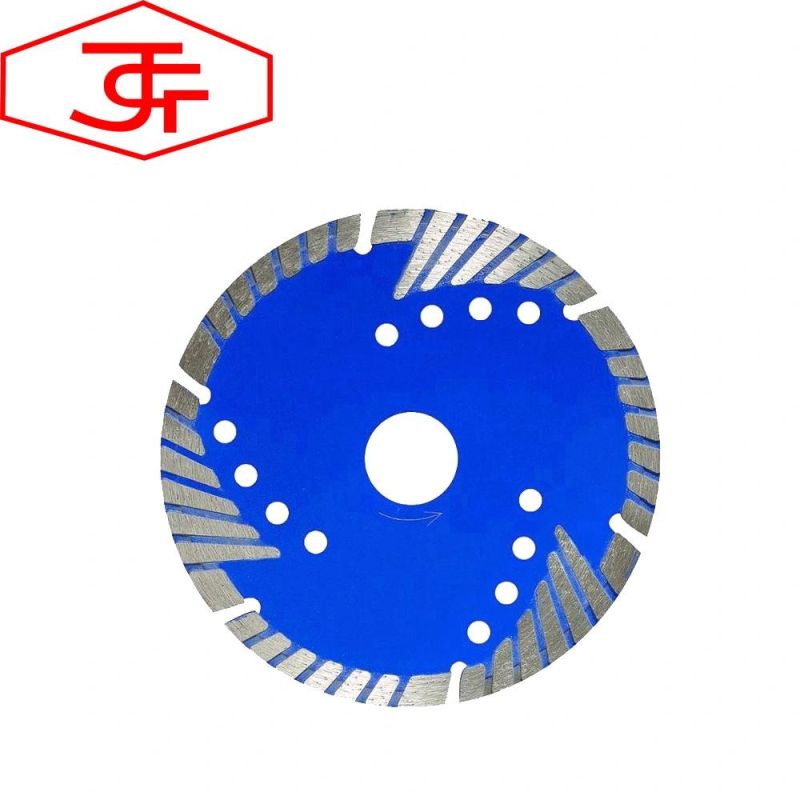

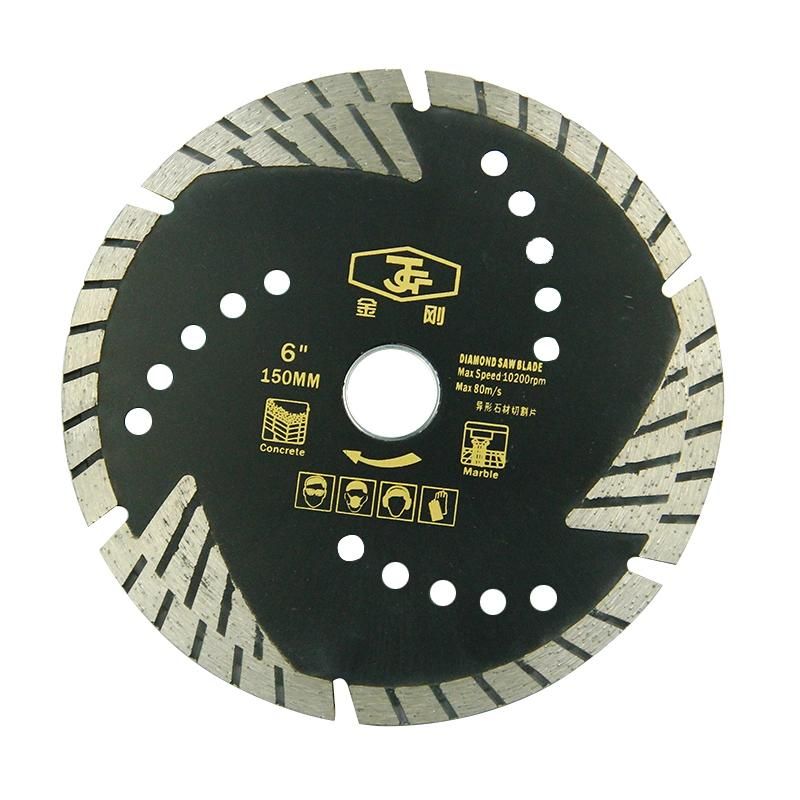

3. Turbo-saw blade: Combined with the advantages of the first two items, the sawtooth presents turbine-shaped uniform convexity and concavity continuously, which improves the cutting speed and service life.

My company mainly produces sintered diamond saw blade, dry piece, for example, with 125 mm center aperture 22.23, substrate thickness: 1.2, substrate material: 65 mn steel, the thickness of the cutting tools: 2.0 mm, material of the cutting tools, diamond and all kinds of metal powder, diamond mesh: 40/50 each half, diamond intensity is 12 to 18 kg, diamond concentration 25%, cold-press segment hardness is 70 °, maximum speed: 12250 RPM/SEC, cutting object: marble, granite, cement, brick, block, etc.The cutting speed is 23m-25m/s.The factors affecting the efficiency and life of diamond circular saw blades include cutting parameters, diamond size, concentration and binder hardness, etc.Saw cutting parameters include blade cutting speed and feeding speed.
