• Weight：170kg
• Engine：Electric Motor
• Cutting Speed：3~5m2,H
• Working Pressure：15-20MPa
• Wire Life：2~3m2,M
• Rotation：1300r,Min
• Transport Package：Wooden Case or as Customers′ Requirement
• Specification：720*650*1050mm
• Trademark：YUGONG
• Origin：China
• Production Capacity：100 Sets,Month

Basic Info.

Weight 170kg Engine Electric Motor Cutting Speed 3~5m2/H Working Pressure 15-20MPa Wire Life 2~3m2/M Rotation 1300r/Min Transport Package Wooden Case or as Customers′ Requirement Specification 720*650*1050mm Trademark YUGONG Origin China Production Capacity 100 Sets/Month

Product Description

China Shandong Datang machinery diamond wire saw for quarry mining

Brife introduction

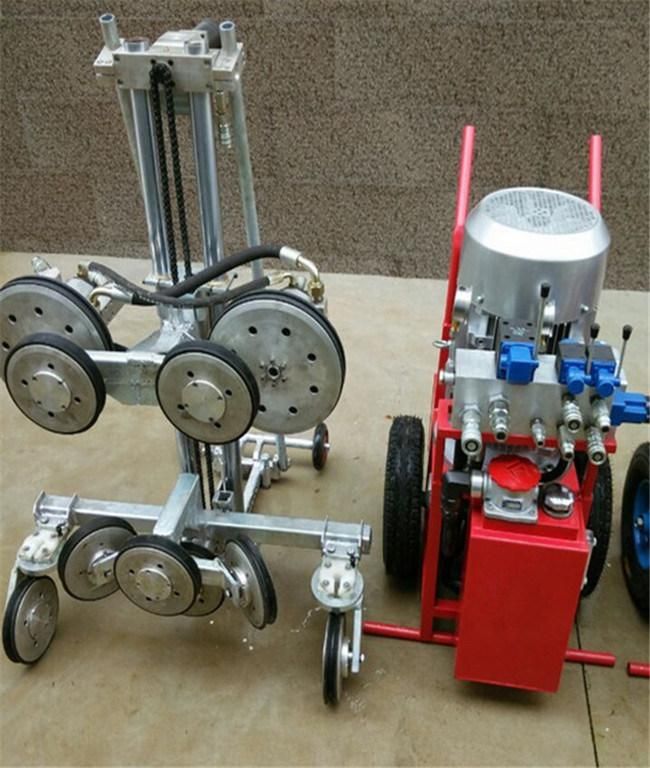

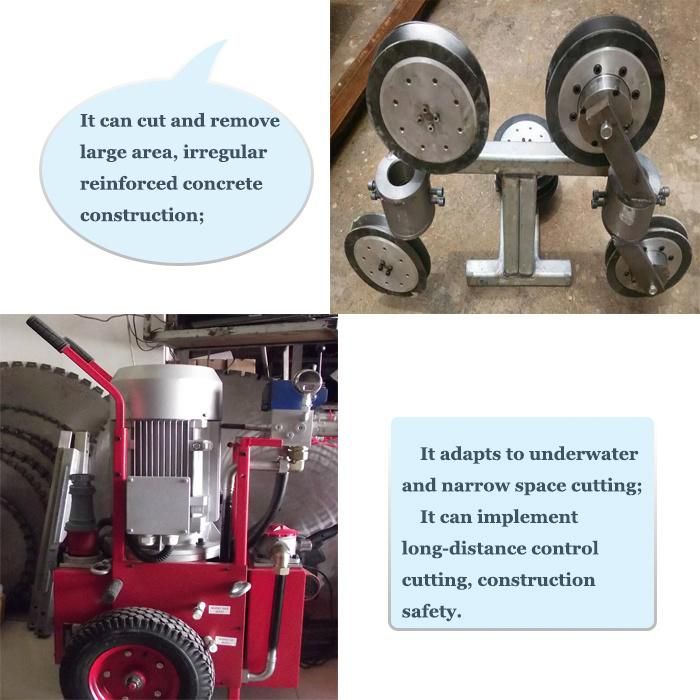

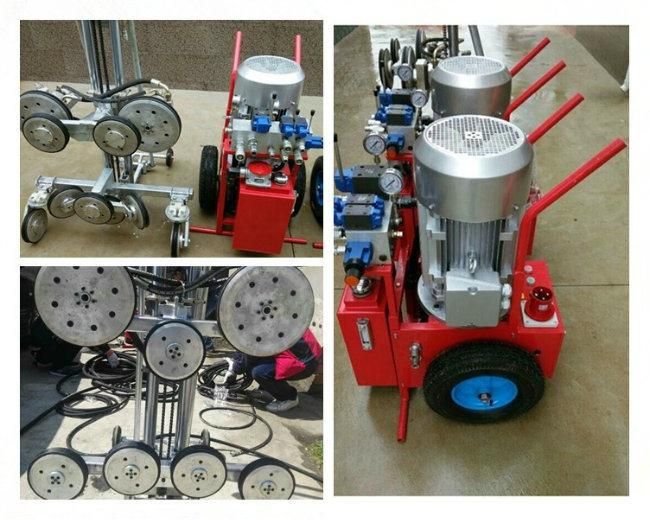

Hydraulic Diamond Wire Saw Machine is used to cut concrete, granite, rock, walls and beams in constructionof bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.

Main features

1. Hydraulic-driven, Diamond Wire Saw Machine can work in different situations.

2. It's made of hard materials. The wedges are running stability. Long surviving life.

3. Powerful cutting ability, it can split the stone or concrete easily with no cutting depth limitation.

4. High Efficiency, and it's easy and comfortable to operate and maintain.

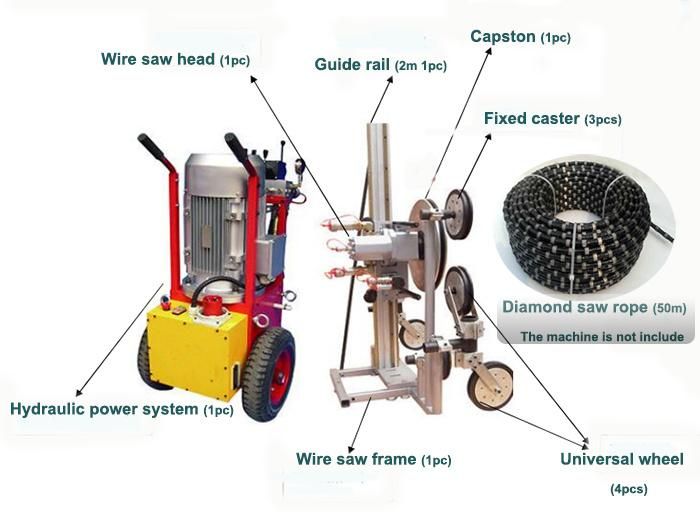

Technical parameter

Hydraulic Pump	YG-25	Motor Power	25kw
Voltage	220V/380V, 50Hz	Motor Type	HM-80, 2 Cylinders
Rotation	1300r/min	Working Pressure	15-20Mpa
Weight	170kg	Size	720*650*1050mm
Frame & Wheels	Aluminum	Wheels	10
Weight	75kg	Size	90*90*1700mm

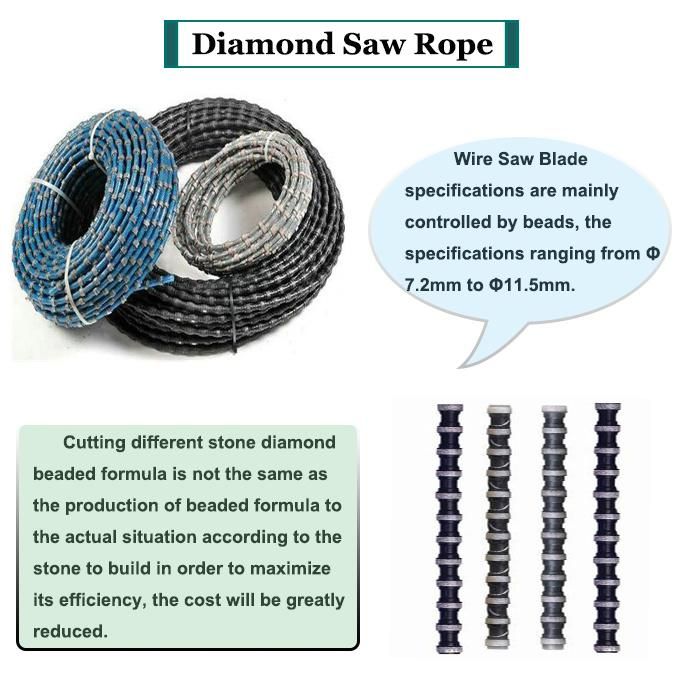

Diamond Wire Saw	Diamond Wire	Specification	φ11.5mm  40beads/m
Cutting speed	3~5m2/h	Wire life	2~3m2/m

Product Overviews



Company Information

Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.

We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.

All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!

Packaging & Shipping

1. Packaging:  1)Wrapped by proctective film;

                        2)Packed by standard import & export wooden cases or carton boxes.

2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
