• Model NO.：SGBB
• Customized：Customized
• Transport Package：Carton
• Specification：500x15x60mm
• Trademark：COREDIAM
• Origin：China
• HS Code：82023910
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. SGBB Customized Customized Transport Package Carton Specification 500x15x60mm Trademark COREDIAM Origin China HS Code 82023910 Production Capacity 1000PCS/Month

Product Description

1. Introduction

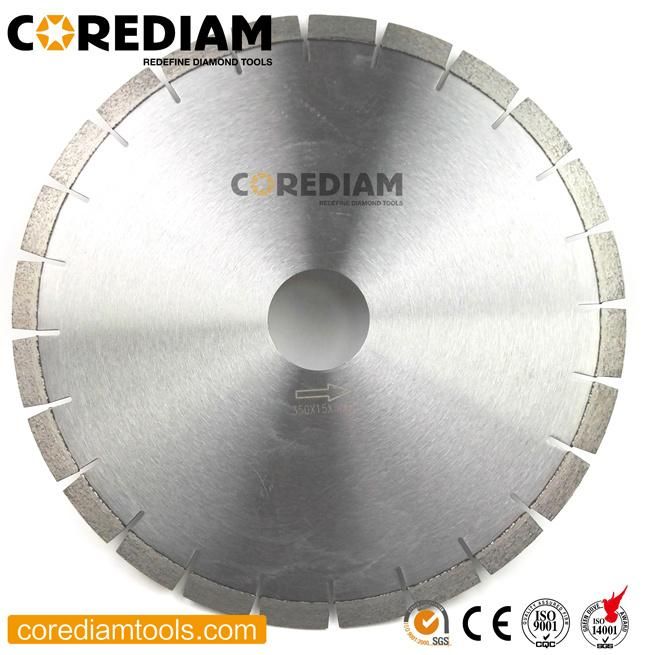

The blade is designed for granite cutting. This blade is laser welded, it is silent type, the steel core is sandwich steel core. The diameter is 500mm, the segment height is 15mm, the arbor size is 60mm. It has good sharpness and super efficiency during working. Meanwhile, low-noise is a special feature, it is also stable cutting, narrow gap, and stone waste reduction. Also, the silent blade has a long lifespan, it is your best choice.

2. Size data are as below:

Item No.	Diameter	Segment Height	Segment Width	Arbor
SGBB25015	250mm	15mm	3.0mm	60mm
SGBB30015	300mm	15mm	3.2mm	60mm
SGBB35015	350mm	15mm	3.2mm	60mm
SGBB40015	400mm	15mm	3.4mm	60mm
SGBB45015	450mm	15mm	3.6mm	60mm
SGBB50015	500mm	15mm	3.6mm	60mm
SGBB60015	600mm	15mm	4.0mm	60mm

3. Features:
- Manufacturer technology: laser welded
- Suitable: wet cutting.
- With silent steel core, low-noise.
- The segments are not easy to fall off during working.
- Stable cutting, narrow cutting gap, stone waste reduction.

4.Production process.
Raw material→ powder mixing → steel core process → cold press → segment sintering → welding → surface treatment → package → dispatch

5. Delivery time.
Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.

For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.


6. Testing Process




7. Quality Control System




8. Corediam sales network
