• Model NO.：1908
• Transport Package：Plastic
• Specification：A
• Trademark：HX
• Origin：Henan China
• HS Code：4113960213
• Production Capacity：5000PCS

Basic Info.

Model NO. 1908 Transport Package Plastic Specification A Trademark HX Origin Henan China HS Code 4113960213 Production Capacity 5000PCS

Product Description

Introduction

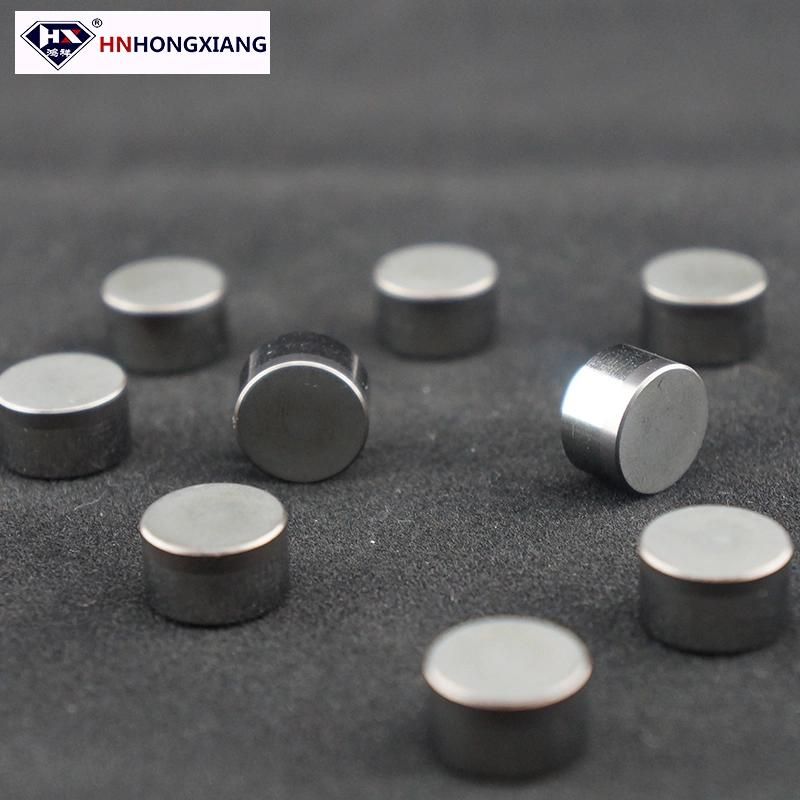

PDC bits uses PDC as main cutting components, with the excellent wear-ability and impact toughness of the PDC.
It has a long useful life, high-efficiency, and good cost performance.
PDC bit is mainly used for drilling soft and big drainage.

Features
1. The PDC cutter has high abrasive resistance. High quality materials are sintered to form the diamond layer which is of rigid framework structure. The PDC features compact structure and good abrasive resistance.
2. The PDC cutter features good impact resistance. The PDC uses tungsten carbide material which has good impact resistance and the diamond layer can guarantee the toughness of the impact resistance.
3. The PDC cutter has strong binding force. The junction plane of the diamond layer and the tungsten carbide layer uses a corrugated tooth design. The binding force can be increased and the bad impact of the plane residual stress on the PDC performance can be avoided.
4. The PDC cutter has good self sharpening performance. The good organization microstructure of the diamond makes the diamond particle remain sharp all times.
5. The PDC cutter features good thermal conductivity. Its highest bearing temperature can reach 700° C.


All of our business is carried out in full compliance with the ISO9001 Certification.
Please contact us if you would like any further information.

Product Number	Diameter (D)(mm)	Height (T) (mm)	Diamond Thickness (t) (mm)	Diamond  Chamfer (mm)
1308	13.44±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1313	13.44±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1608	15.88/16.00±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1613	15.88/16.00±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1908	19.05±0.05	8.00±0.10	2.30±0.20	0.30±0.10
1913	19.05±0.05	13.20±0.10	2.30±0.20	0.30±0.10
1916	19.05±0.05	16.31±0.10	2.30±0.20	0.30±0.10

Zhecheng Hongxiang Superhard Material CO.,LTD was founded in 1990 which in affiliated with Wanke Group. The company is a high-tech enterprise with modern management experience and strong research and development ability. Besides, it has won many national and local awards and obtained several invention.
Constant innovation and good faith are our foothold.
Our products has exported to United Kingdom France , Germany, Spain, Italy, USA, Canada, Brazil, Japan, Korea, Thailand, Vietnam, India, Egypt, Iran, Turkey etc 52 countries and participated in many
Domestic and international exhibitions.
Main products:
1.synthetic diamond and diamond powder
2.In 2000,creative product:diamond drill bit,diamond wheel,diamond finger bit etc glass tools.The product is fit for kinds of glass machine,bilaterial machine and numerical control machine etc
3.In 2008,research and development product,Mainly include diamond saw blade ,diamond core bit,diamond abrasive fickert etc stone and ceramices tools.
4.In 2011,selfdevelop PCD ,PDC,etc oil and cutting tools products,which mainly used for oil drilling,coal drilling and geological exploration etc.
