• Model NO.：CALU
• Trademark：Corediam
• Origin：China
• HS Code：82023910
• Production Capacity：50PCS,Day

Basic Info.

Model NO. CALU Trademark Corediam Origin China HS Code 82023910 Production Capacity 50PCS/Day

Product Description

1. Product Introduction

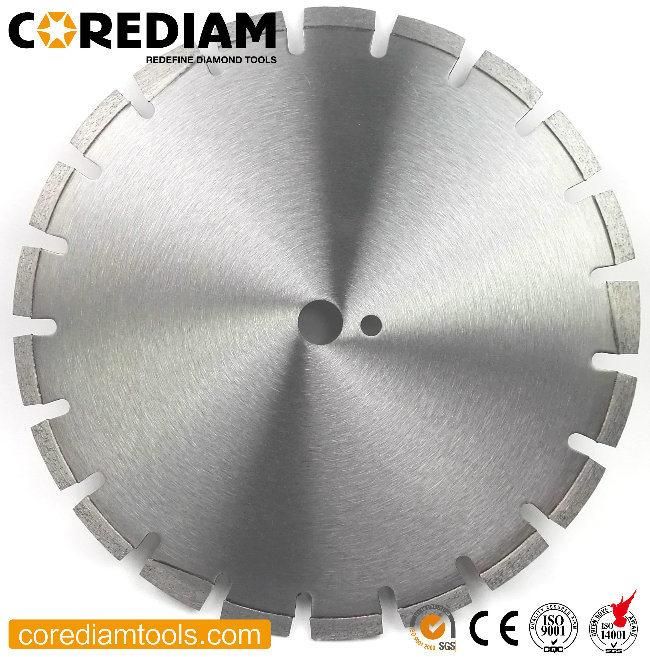

The blade is laser welded, in this status we have making the diamond blades have high strength and also improve its cutting performance. The undercut segments can protect the steel core, it can reduce the stress to the steel core and prevent steel core cracking during cutting some hard materials. Laser welded segmented saw blades for concrete cutting are installed on handheld saw, floor saw, walk-behind saw, it is using for dry or wet cutting asphalt, asphalt-concrete and other abrasive materials with superior efficiency.

 Features of Cutting Asphalt diamond saw blade

1) Undercut Protection segments provide longer life when cutting Abrasive Materials.
2). Both Dry and Wet Use.
4). Easy and smooth cutting
5). It has good cutting performance, fast cutting speed and long life.
6). Different grade to choose

2. Application

These blades are used for cutting asphalt,asphalt-concrete and other abrasive materials with superior efficiency.



3. Specification


Item No.	Diameter	Segment Height	Segment Width	Arbor
CALU30010	300mm	10mm	3.2mm	20/25.4mm
CALU35010	350mm	10mm	3.2mm	25.4mm
CALU40010	400mm	10mm	3.2mm	25.4mm
CALU45010	450mm	10mm	3.6mm	25.4mm
CALU50010	500mm	10mm	3.6mm	25.4mm
CALU55010	550mm	10mm	3.6mm	25.4mm
CALU60010	600mm	10mm	4.5mm	25.4mm

OEM service offered.

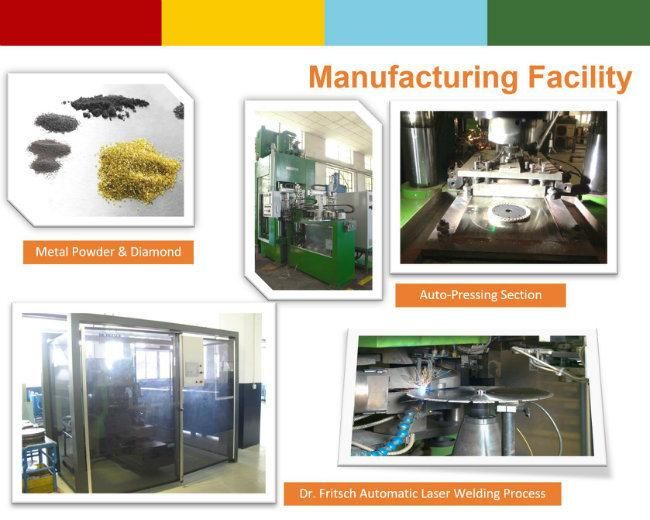

4. Manufacturing & Quality Control





5. Delivery time &Packing

Our leading time will be about 2 weeks for the batch order.



6. Corediam Introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
