New Hydraulic Concrete Wall Saw Cutting Machine Price
Henan Yugong Machinery Co., Ltd.- Application：Concrete Wall Cutting
- Type：Concrete
- Power：Electric,Hydraulic
- Saw Type：Circular Saw
- Packing：Carton or Wooden Case.
- Color：Red or Customized
Base Info
- Model NO.：YG-600,700
- No-Load Speed：4500rpm
- Rated Input Power：6800W,Hydraulic
- Voltage：220V or Customized
- Frequency：50Hz,60Hz
- Cutting Disc：Diamond Cutting Disc
- Warranty：1 Year
- Cutting Depth：350-750mm
- Transport Package：Wooden Case Export Package
- Specification：95kg, 0.45m3
- Trademark：Yugong
- Origin：China, Henan
- HS Code：8464101000
- Production Capacity：1000sets,Month
Description
Basic Info.
Model NO. YG-600/700 No-Load Speed 4500rpm Rated Input Power 6800W/Hydraulic Voltage 220V or Customized Frequency 50Hz/60Hz Cutting Disc Diamond Cutting Disc Warranty 1 Year Cutting Depth 350-750mm Transport Package Wooden Case Export Package Specification 95kg, 0.45m3 Trademark Yugong Origin China, Henan HS Code 8464101000 Production Capacity 1000sets/MonthProduct Description
Hydraulic Concrete Wall Saw Cutting Machine for Sale
Product Description
Electric Driven Concrete Wall Saw Cutting Machine is designed to cut concrete, wall, road, rocks, etc.It can cut general reinforced concrete walls, board cutting, demolition or the door hole. The cutting surface requires to be a smooth and straight concrete cutting, cutting depth is decided by the blade size adjustment, 800/1000/1200mm blade adjustable, cutting depth up 0-550mm.
Technical Parameters
| Model | YG-800 | YG-1000 | YG-1200 |
| Motor | 220V, 50Hz, 1Phase | 220V, 50Hz, 1Phase | 220V, 50Hz, 1Phase |
| Power | 6250w | 6580w | 6980w |
| Blade | 800mm | 1000mm | 1200mm |
| Cutting Depth | 350mm | 450mm | 550mm |
| Watering | Manual | Manual | Manual |
| Middle Handle | Depth | Depth | Depth |
| Side Handle | Movement | Movement | Movement |
| Dimension | 1200*450*1150mm | 1200*550*1250mm | 1200*650*1300mm |
| Weight | 80kg | 87kg | 95kg |
Product Advantages
Simple Operation instructions:
1. fix the rails on the wall with anchors.
2. put the frame in the rails.
3. fix the disc and saw cover.
4. power on, then move the handle to cut.
(Middle handle is for disc in/out, side handle is for machine movement.)

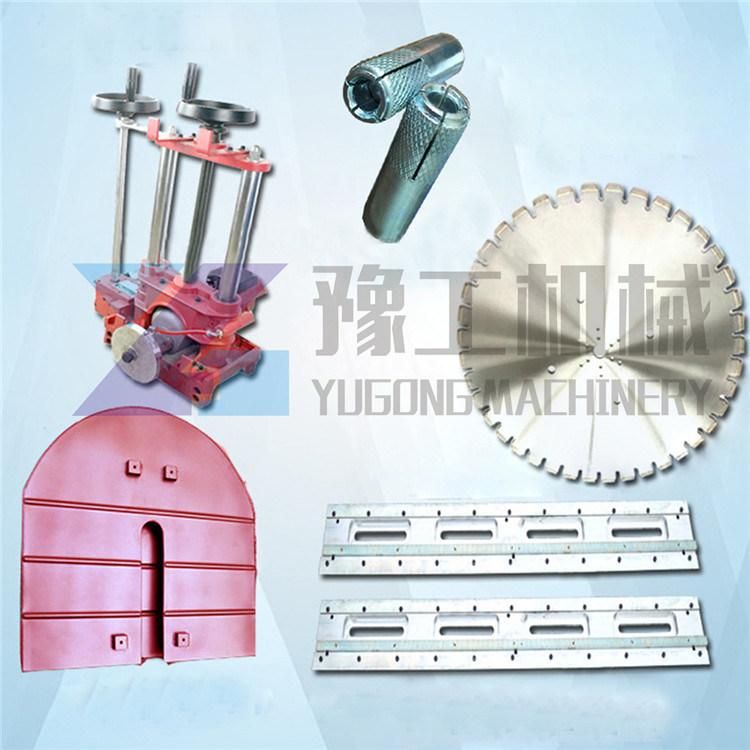

The Whole Set of Machine Includes
1. one frame with an electric motor, 220V, 50Hz, 3000w.
(We could customize the motor according to your requirement.)
2. one disk, 1000mm.
3. one saw cover.
4. one set of rails, 1.2m*2 pcs.
5. one set of anchors

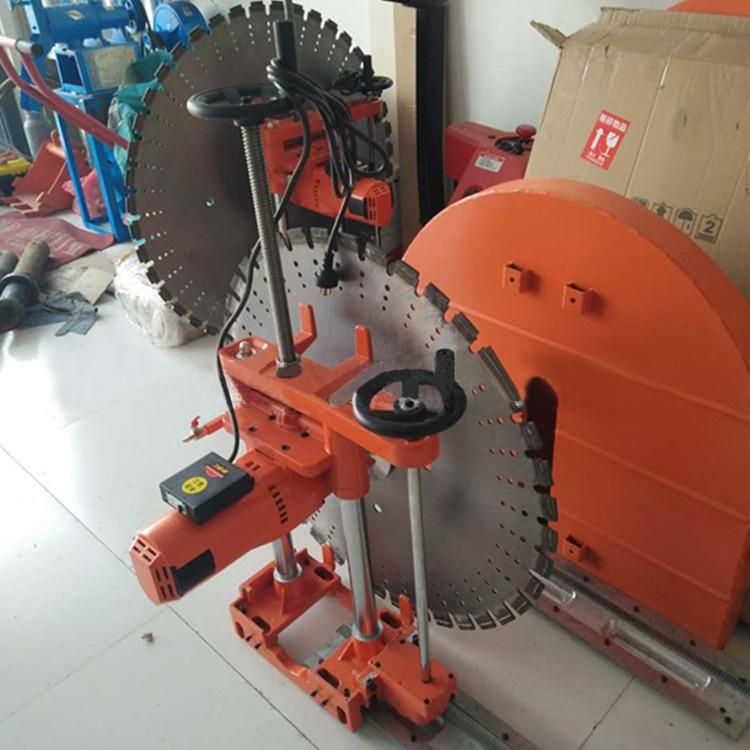

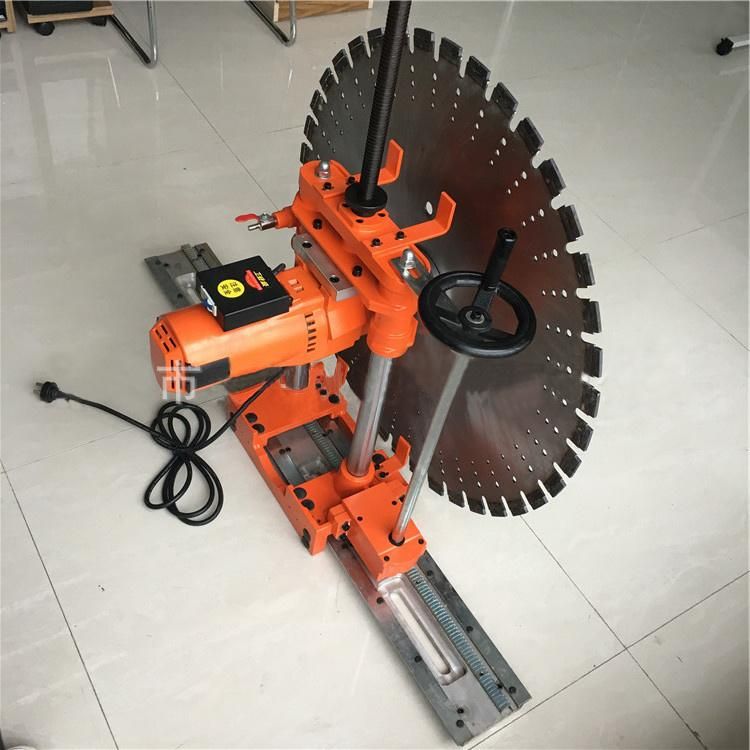

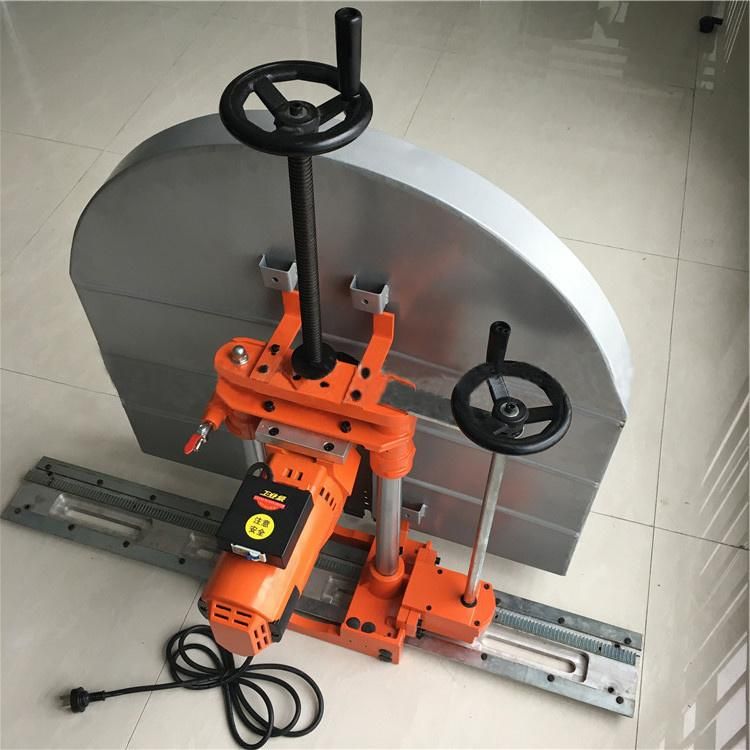

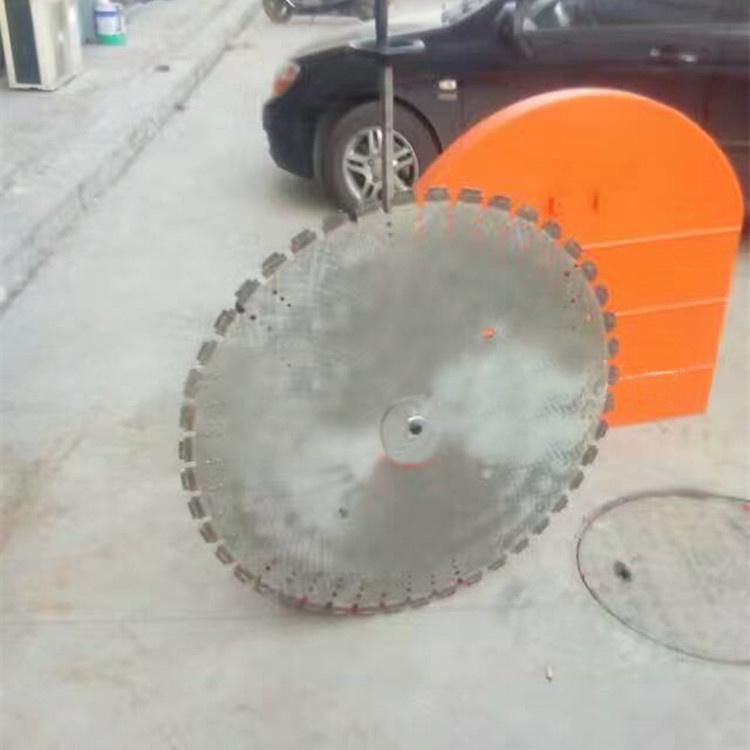

Detailed Images
Packing&Delivery:

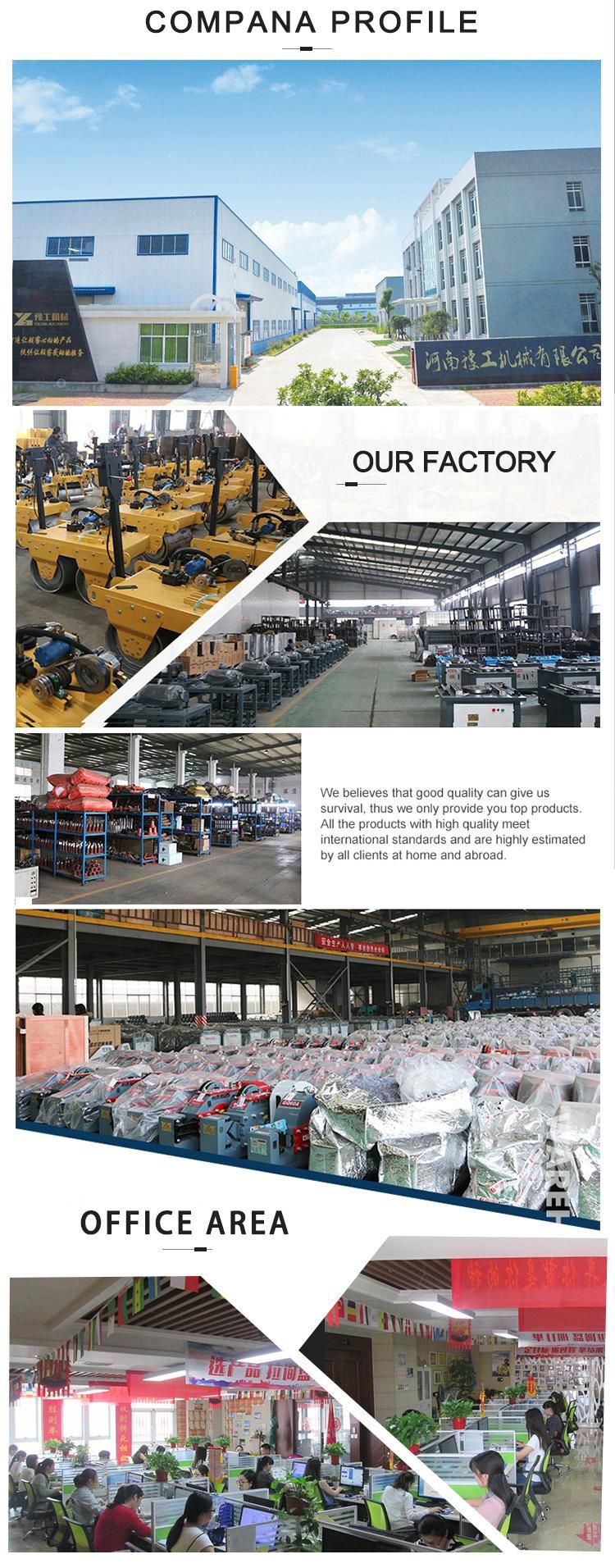

Company Informations:
