• Model NO.：1608
• Thickness：3mm - 20mm
• Transport Package：Carton
• Specification：ISO9001
• Trademark：HX
• Origin：Henan China
• HS Code：4113960213
• Production Capacity：5000PCS

Basic Info.

Model NO. 1608 Thickness 3mm - 20mm Transport Package Carton Specification ISO9001 Trademark HX Origin Henan China HS Code 4113960213 Production Capacity 5000PCS

Product Description

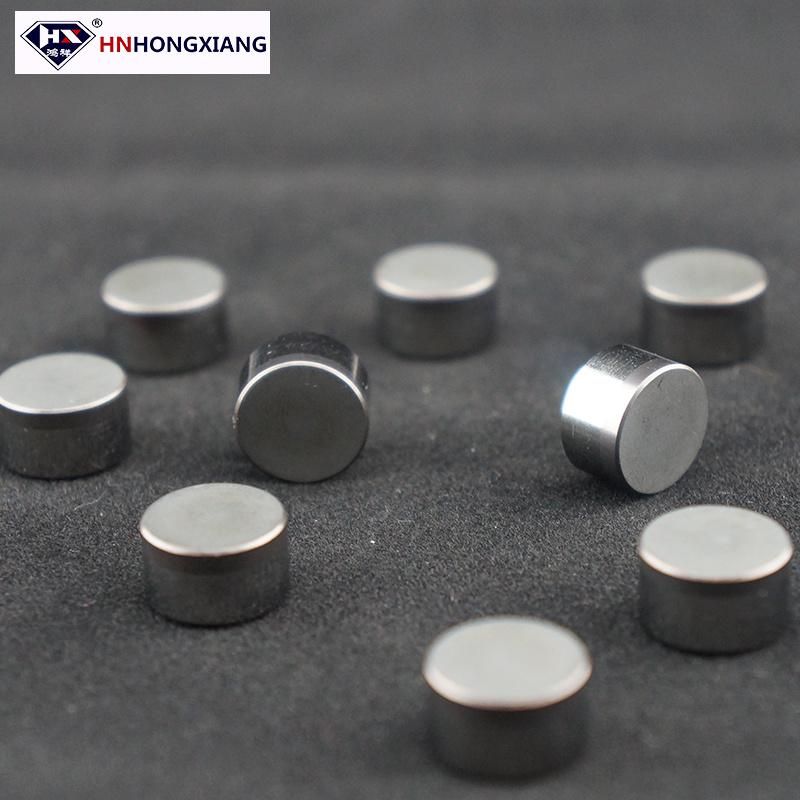

PDC diamond Feature:
1 Cutting structure is force balanced and it blade is asymmetrically designed so that the load on bit is balanced that resulting better stablity of the bit.
2 Main cutter is high performance PDC cutter to insure service life of the bit while improving ROP.
3 Cutter exposure is optimized to insure the bit can achieve higher ROP is soft to medium formations.
4 Shock absorbers are designed to make the bit capable of drilling through formations with hard strigers.
5 Hydraulic systems of the bit is optimized using dynamic flow pattern simulation technology enhance cleaning and

All of our business is carried out in full compliance with the ISO9001 Certification.
Please contact us if you would like any further information.

Product Number	Diameter (D)(mm)	Height (T) (mm)	Diamond Thickness (t) (mm)	Diamond  Chamfer (mm)
1308	13.44±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1313	13.44±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1608	15.88/16.00±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1613	15.88/16.00±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1908	19.05±0.05	8.00±0.10	2.30±0.20	0.30±0.10
1913	19.05±0.05	13.20±0.10	2.30±0.20	0.30±0.10
1916	19.05±0.05	16.31±0.10	2.30±0.20	0.30±0.10
