• Model NO.：JINGSTAR
• Segment Type：Sandwich, Multi Layer
• Transport Package：Carton, Wooden Carton, etc
• Trademark：JINGSTAR
• Origin：Fujian, China
• HS Code：82023990

Basic Info.

Model NO. JINGSTAR Segment Type Sandwich, Multi Layer Transport Package Carton, Wooden Carton, etc Trademark JINGSTAR Origin Fujian, China HS Code 82023990

Product Description

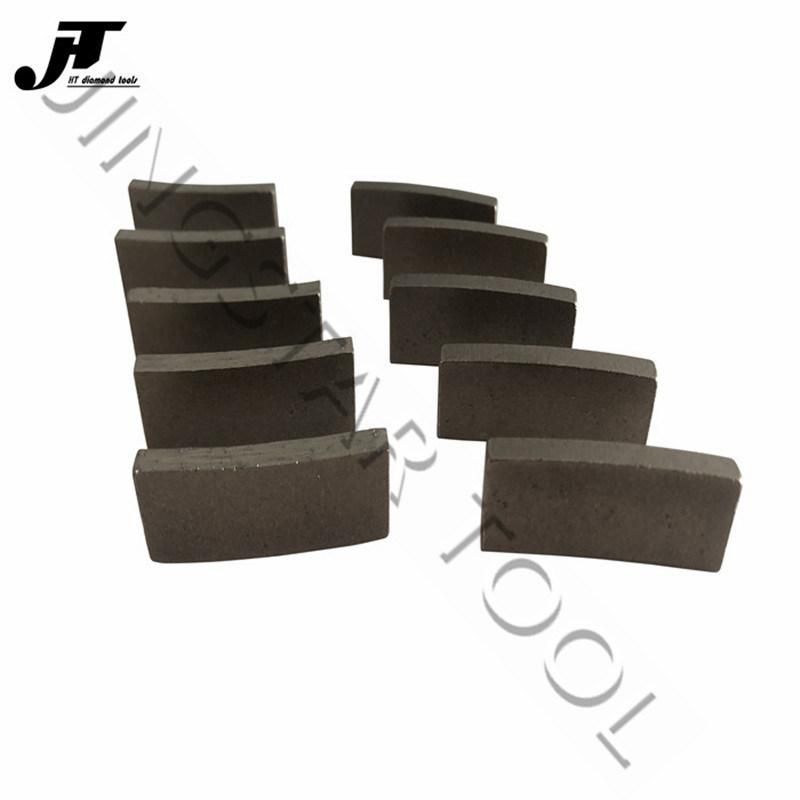

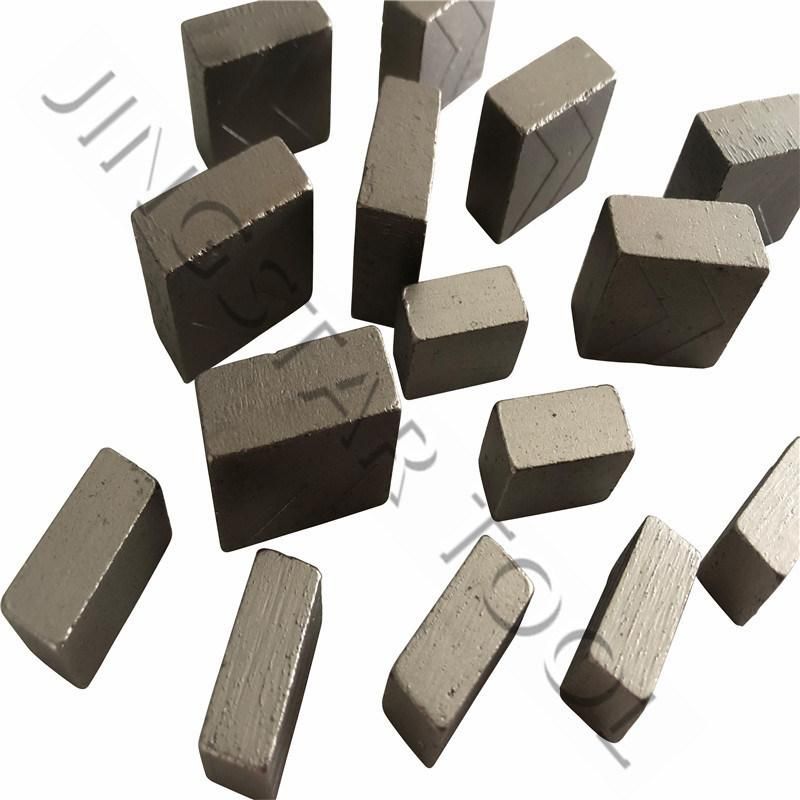

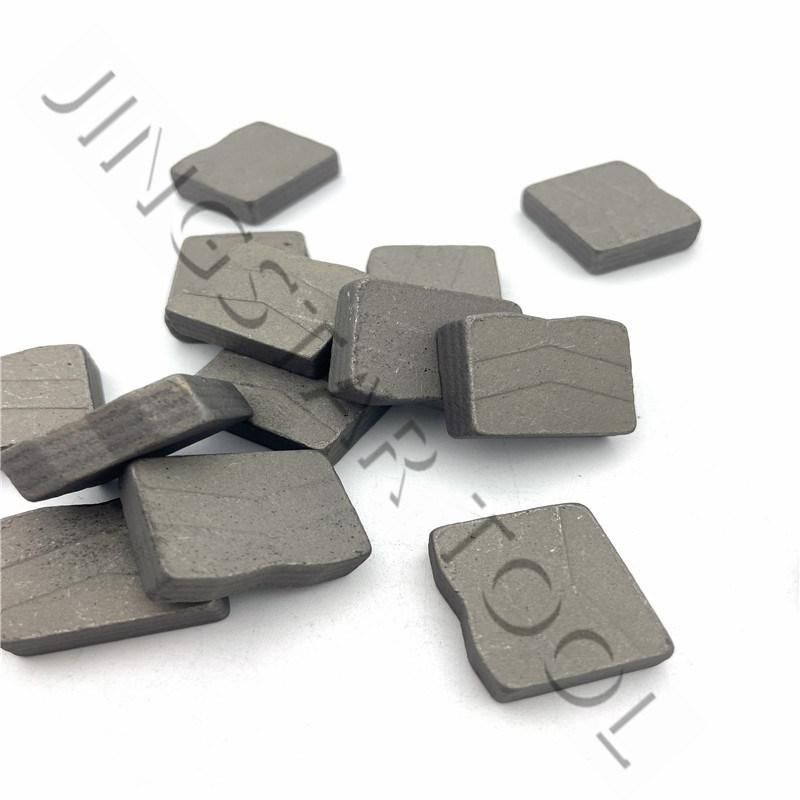

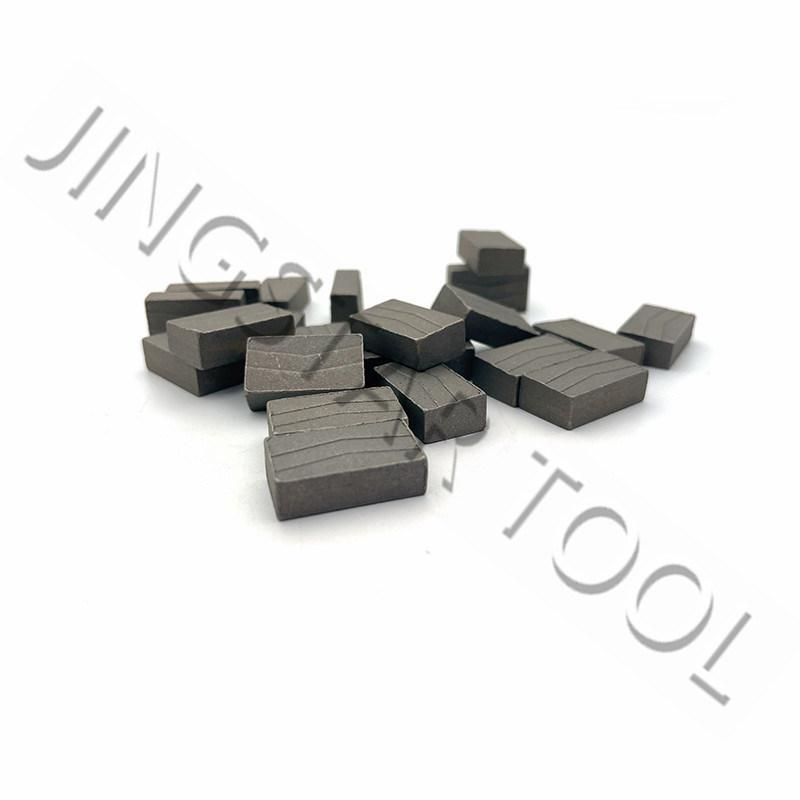

Diamond stone cutting segment for Granite Cutting

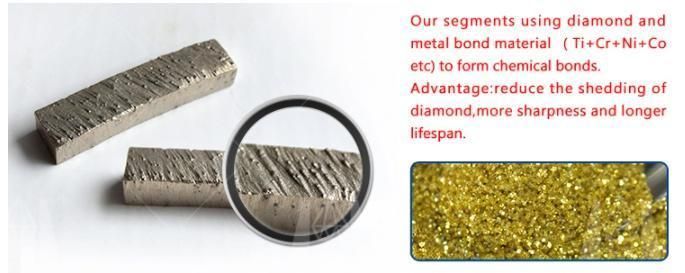

Diamond segments are brazed or laser-welded on circular saw blades, multi saw blades, which is suitable for cutting all kinds of stone(such as marble, granite, limestone, basalt stone, sand stone, grit stone, etc. ) and construction industry (such as concrete, reinforced concrete, cured concrete, green concrete, asphalt, etc). There are normal type, sandwich type, ring type and ladder type segments.

1. Sharp, Nice cutting performance & smooth
2. Improving the quantity of slab, High cutting effeciency.
3. Low cost,
4. Longlife

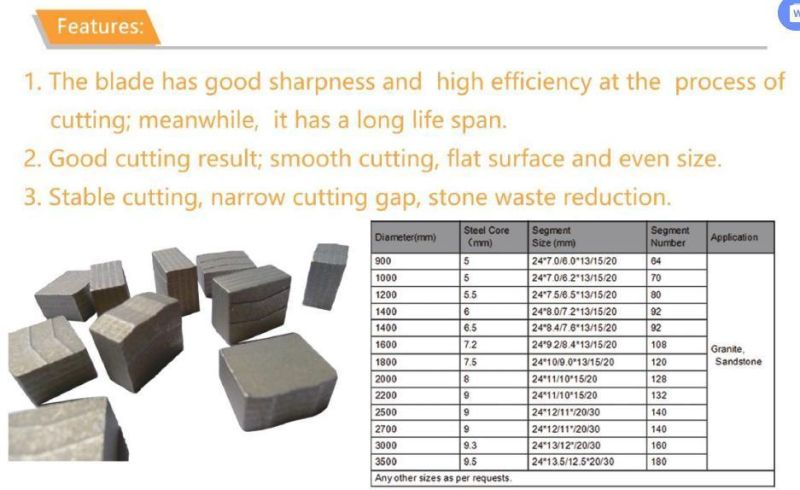

Diameter	Segment length	Segment Thickness	Segment Height
300	40	2.8/3.0	8/10/12/15/20
350	40	3.0/3.2	8/10/12/15/20
400	40	3.4/3.6	8/10/12/15/20
450	40	3.8/4.2	8/10/12/15/20
500	40	4.0/4.2	8/10/12/15/20
550	40	4.6/4.8	8/10/12/15/20
600	40	4.6/4.8	8/10/12/15/20
700	40	5.0/5.2	8/10/12/15/20
750	40	5.2/5.6	8/10/12/15/20
800	40	5.5/6.0	8/10/12/15/20
900	24	6.0	8/10/12/15/20
1000	24	6.5/7.0	8/10/12/15/20
1200	24	6.5/6.6/6.8/7.5	8/10/12/15/20
1300	24	7.2/7.8	8/10/12/15/20
1400	24	7.2/7.6/7.8/8.4	8/10/12/15/20
1600	24	8.0/8.2/8.4/8.6/9.0/9.2	8/10/12/15/20
1800	24	9.0/9.2	8/10/12/15/20
2000	24	8.5/8.8/9.5	8/10/12/15/20
2200	24	9.9/10.0/10.6/11.2	8/10/12/15/20
2500	24	10.5/11.5	8/10/12/15/20
2700	24	11.0/12.2	8/10/12/15/20
3000	24	11.0/11.2/12.5/13.0	20/25/33
3500	24	12. /12.2/13.5	20/26
