• Model NO.：Sandstone Segments

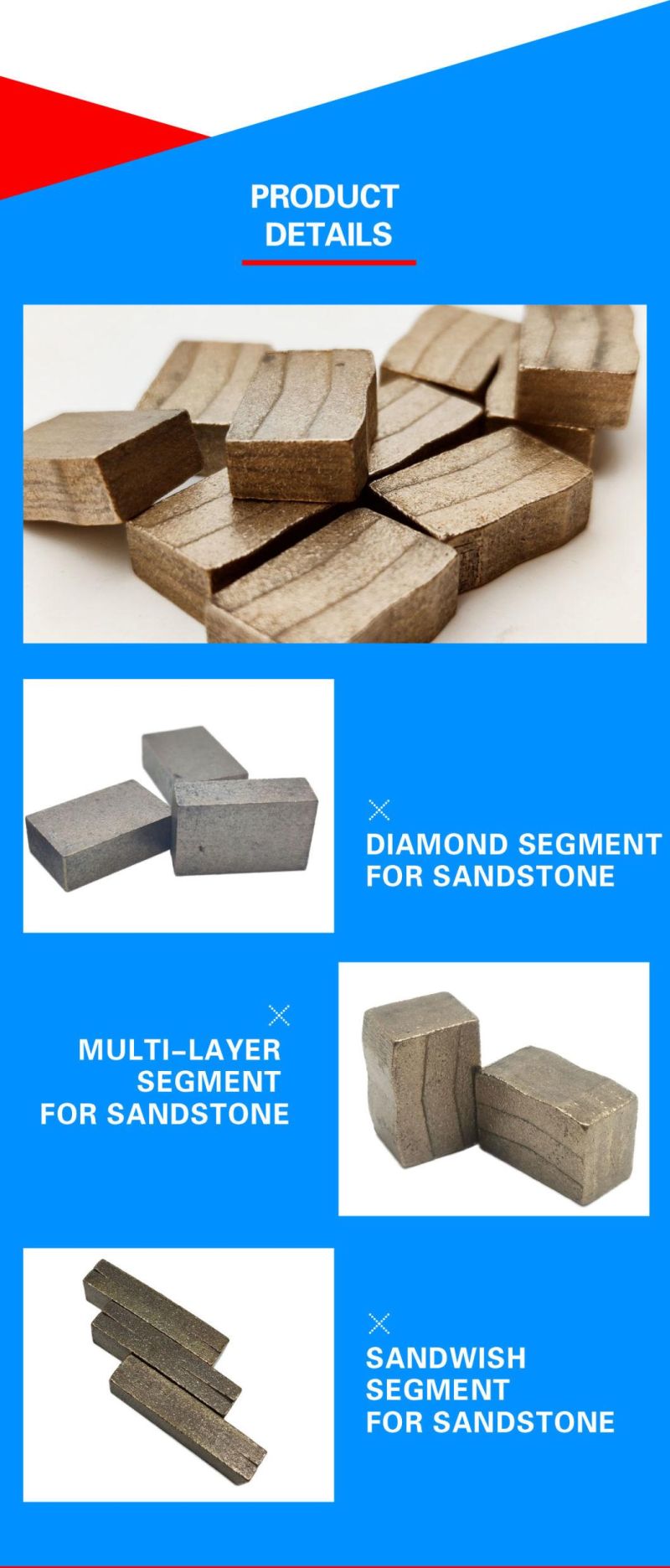

• Structure：Sandwich or Multi-Layer
• Features：Fast Cutting Speed and Long Lifespan.
• Material：Diamond Powder, Metal Powder
• Segments Bond：Soft, Medium, Hard
• Transport Package：Carton and Wooden Box Packaging.
• Specification：Diameter: 250-3500mm
• Trademark：LINSING
• Origin：China
• Production Capacity：1000000piece,Day

Basic Info.

Model NO. Sandstone Segments Structure Sandwich or Multi-Layer Features Fast Cutting Speed and Long Lifespan. Material Diamond Powder, Metal Powder Segments Bond Soft, Medium, Hard Transport Package Carton and Wooden Box Packaging. Specification Diameter: 250-3500mm Trademark LINSING Origin China Production Capacity 1000000piece/Day

Product Description

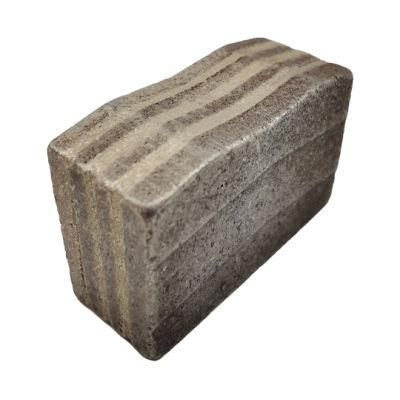

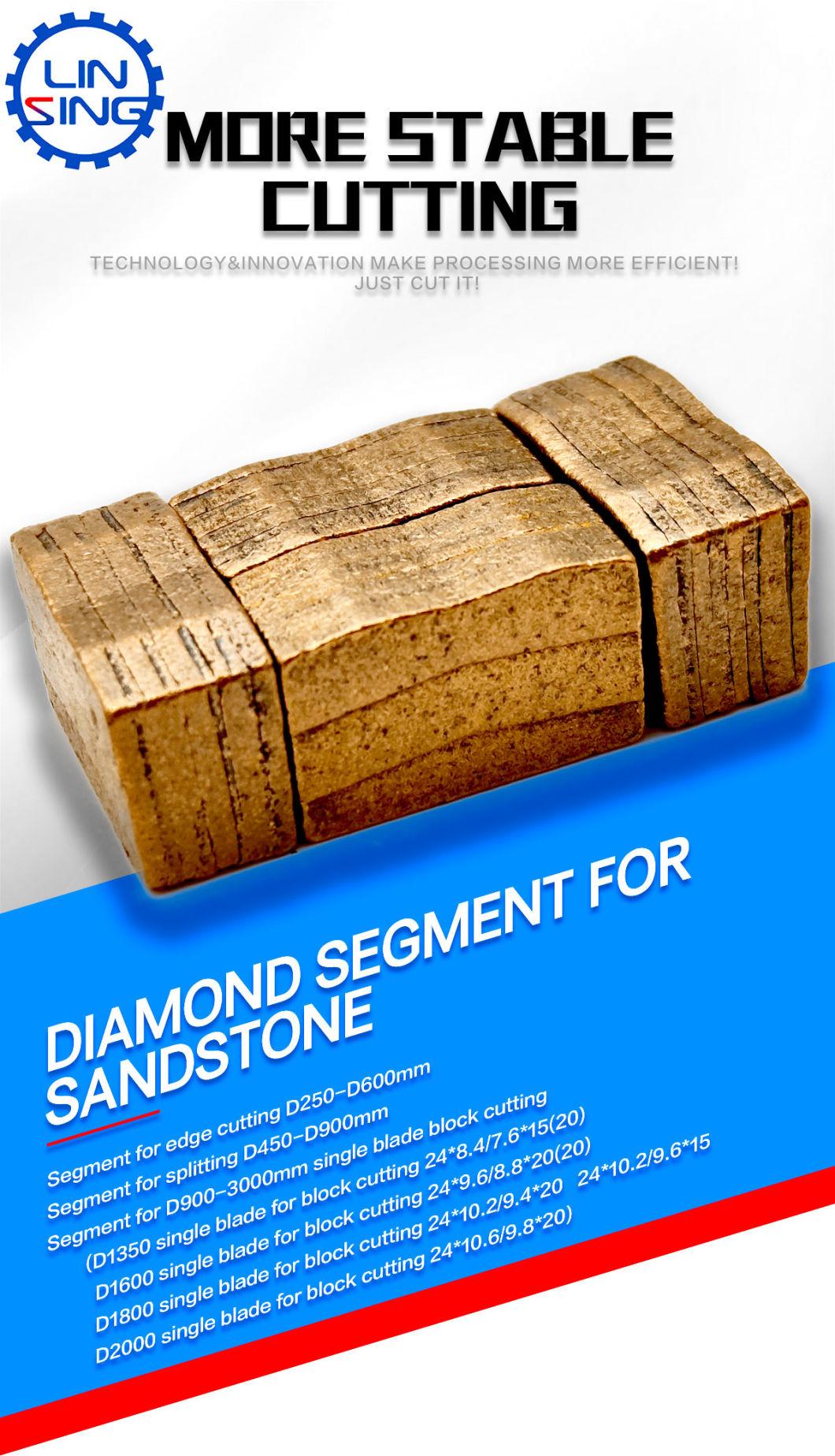

Diamond segments for sandstone block & slab cutting

Sandstone segment is used for cutting sandstone, . The sandstone material is soft and easy to break the slab edge. Therefore, the sharpness requirements are very high. The sandstone segment produced by Linsing diamond segments is extremely acceptable, and our products can easily cut the Australian and Indian sandstone. Not only that, in terms of price and style, K-shape and M-shape segments also have strong cutting performance for special sandstones.

Linsing diamond segments features:

1. The segments has good sharpness and high efficiency at the process of cutting, meanwhile, it has a long lifespan.
2. Good cutting result: Smooth cutting, flat surface and even size.
3. Stable cutting, narrow cutting gap, stone waste reduction.
4. M-shape segment is easy for diamond opening.

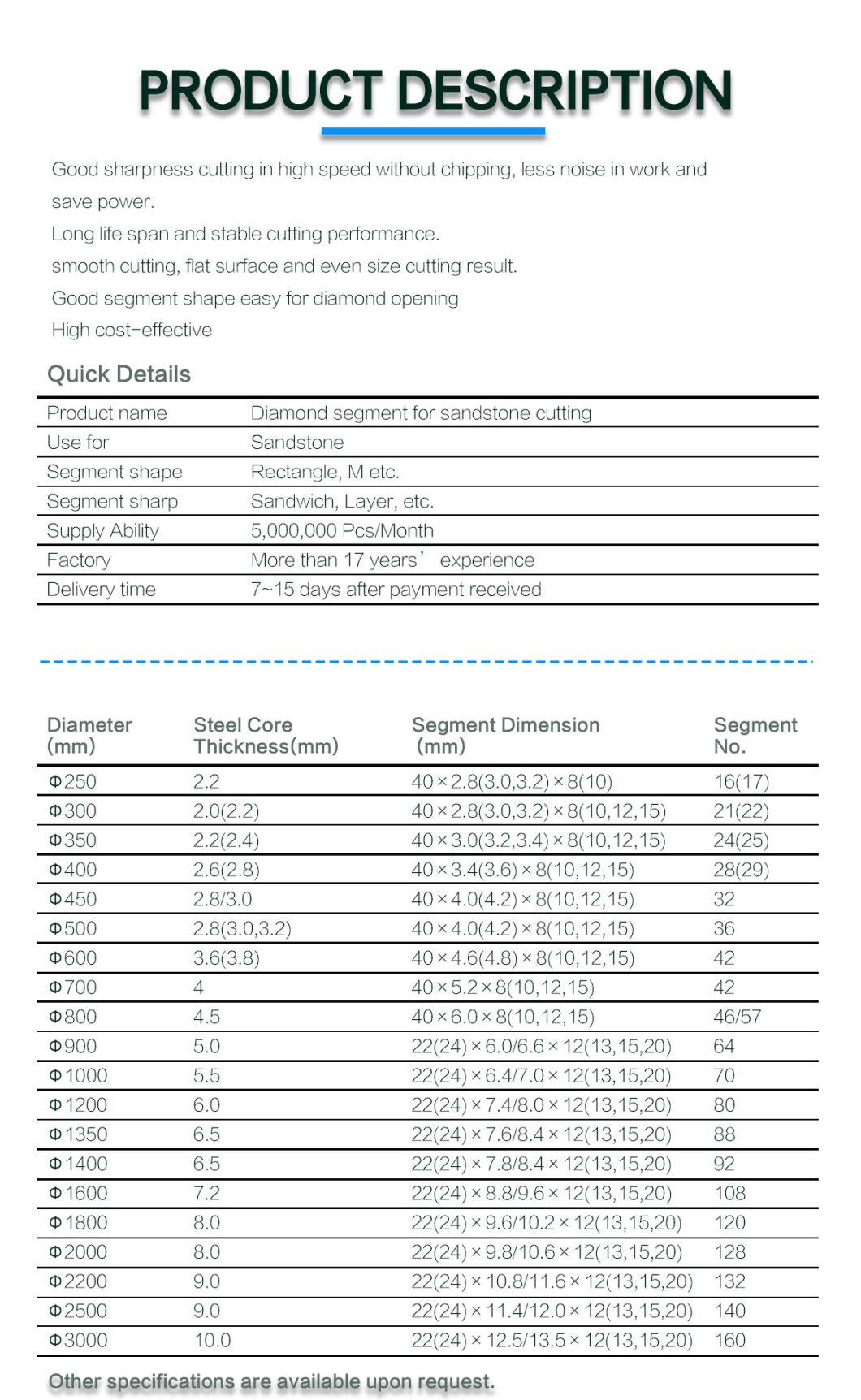

Diamond segments for 300-800mm saw blade:

Diameter	Diameter	Core Thickness (mm)				No. of Teeth
mm	inch		Length	Thickness	Height
300	12″	2.0/2.2	40	2.8/3.0	8/10/12/15	21
350	14″	2.2/2.4	40	3.0/3.2	8/10/12/15	24
400	16″	2.6/2.8	40	3.4/3.6	8/10/12/15	28
450	18″	2.8/3.0	40	4.0/4.2	8/10/12/15	32
500	20″	2.8/3.0	40	4.0/4.2	8/10/12/15	36
600	24″	3.6	40	4.6	8/10/12/15	42
700	28″	4	40	5.2	8/10/12/15	42
800	32″	4.5	40	6	8/10/12/15	46/57

Diamond segments for 900-3500mm single/multi diamond blades

Diameter	Diameter	Core Thickness (mm)				No. of Teeth
mm	inch		Length	Thickness	Height
900	36″	5	22/24	6.0/6.6	12/13/15	64
1000	40″	5.5	22/24	6.4/7.0	12/13/15	70
1200	48″	6	22/24	7.4/8.0	12/13/15	80
1400	55″	6.5	22/24	7.8/8.4	12/13/15	92
1600	64″	7.2	22/24	8.4/9.0	12/13/15	108
1800	72″	8	22/24	9.2/9.8	12/13/15/20	120
2000	80″	8	22/24	9.5/10.5	12/13/15/20	128
2200	88″	9	22/24	10.5/11.5	12/13/15/20	132
2500	110″	9	22/24	11.5/12.5	12/13/15/20	140
3000	120″	10	22/24	12.5/13.5	12/13/15/20	160
3500	140″	10	22/24	13.5/14.5	12/13/15/20	180
