• Model NO.：YG70,80
• Feeding Speed：350,940,1300r,Min
• Power：22,25kw
• Motor：Hm-40,80
• Pressure：15-20MPa
• Oil Tank Capacity：17L
• Transport Package：Wooden Case Package
• Trademark：Yugong
• Origin：Henan Province, China
• HS Code：8464102000
• Production Capacity：1000 Pieces Per Month

Model

YG70

YG80

Model of Power Unit

600TM

600TM

Power Source

Hydraulic Pressure

Hydraulic Pressure

Output Power

25kw

25kw

Voltage

380/400V

380/400V

Control Type

Hydraulic Automatic

Hydraulic Automatic

Wire Speed

24m/s

24m/s

Storage Wire Length

20m

25m

Max. Cutting Depth

No Limitation

No Limitation

Max. Operating Pressure

20Mpa

20Mpa

Rotation Speed

900Rpm

1200Rpm

Weight of Wire Saw

35kg

55kg

Weight of Saw Head

25kg

35kg

Product Feature

1.Powerful cutting ability, it can split the stone or concrete easily with no cutting depth limitation.

2.It guarantees the lightest design under the same volume of weight.Its construction guarantee incision straight, neat, no need trimming processing, but also in the reinforced concrete, ceramic, glass cutting.

3. The main flymachine can rotate 360 degrees which can accurately locate.

4.Hydraulic-driven, Diamond Wire Saw Machine can work in different situations.

5. Low wastage with high output: compared with traditional mining process, our sawing machines can double the mining output.

6.High Efficiency, and it's easy and comfortable to operate and maintain.

7.Flexile,Ithorizontal cutting, vertical cutting.

8. Independent control box structure with good dust prevention effect and stable working system.

9. Easily operating, high efficiency, only two workers can control sets of devices.


Packing and shipping

Small order: we suggest DHL/UPS/TNT/FEDEX or by air.
Bulk order: we suggest by air or by sea through the terms :EXW, FOB, CFR, CIF, CPT, CIP, DAF, etc.
2. Shipping: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.

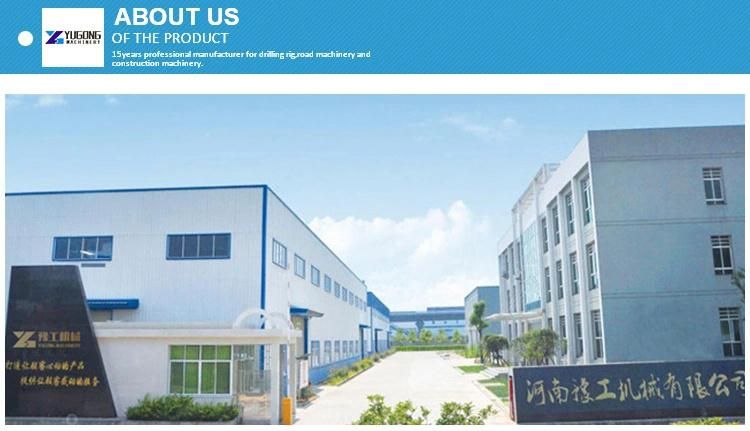

Company Profile
