• Model NO.：Saw Blade Segments
• Formular：Special Formular for Your Stone
• Support：OEM & ODM
• Raw Material：Diamond+Other Metal Powder
• Grade：AA,a,B,C Grade
• MOQ：1set
• Certification：CE,TUV
• Quality：Fast Cutting Speed and Long Lifespan
• Transport Package：Carton Packaging
• Specification：SegmentS for quarrying
• Trademark：Linsing
• Origin：China
• Production Capacity：200000piece,Day

Basic Info.

Model NO. Saw Blade Segments Formular Special Formular for Your Stone Support OEM & ODM Raw Material Diamond+Other Metal Powder Grade AA,a,B,C Grade MOQ 1set Certification CE,TUV Quality Fast Cutting Speed and Long Lifespan Transport Package Carton Packaging Specification SegmentS for quarrying Trademark Linsing Origin China Production Capacity 200000piece/Day

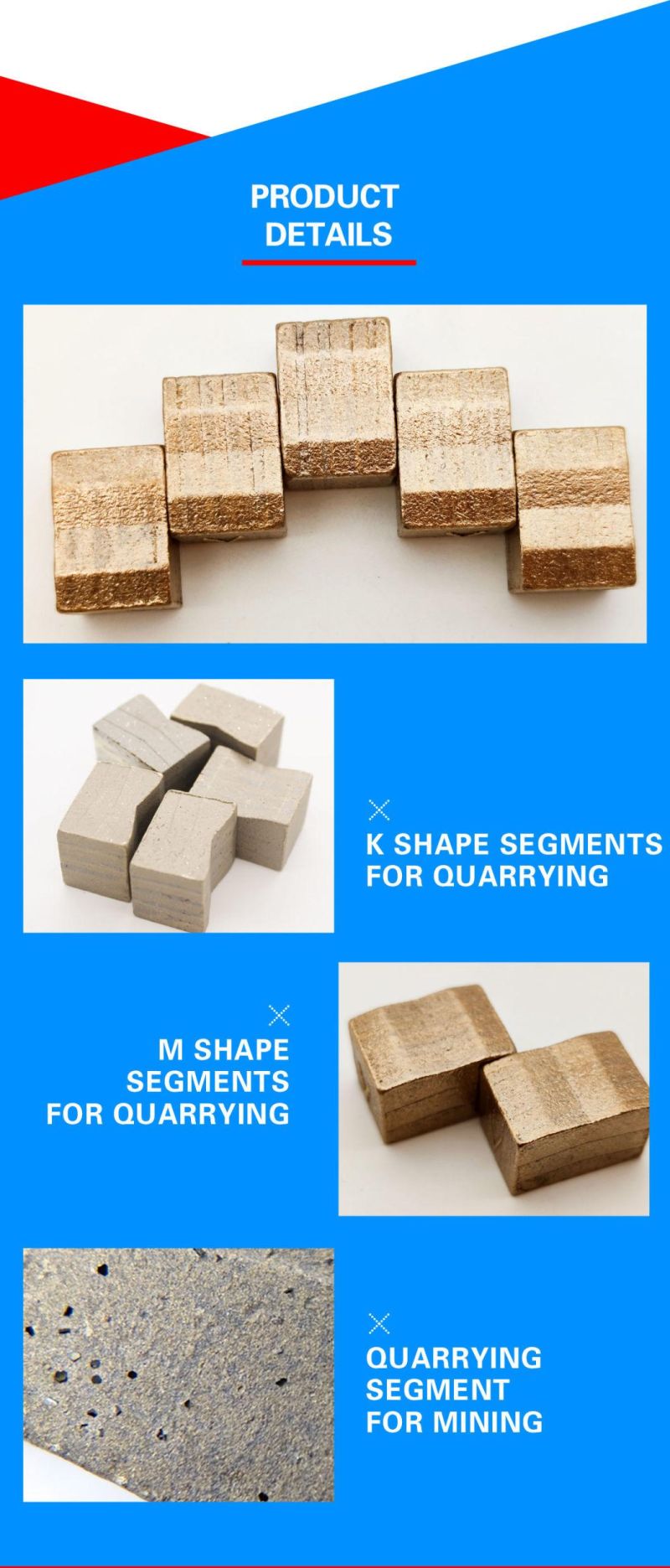

Product Description

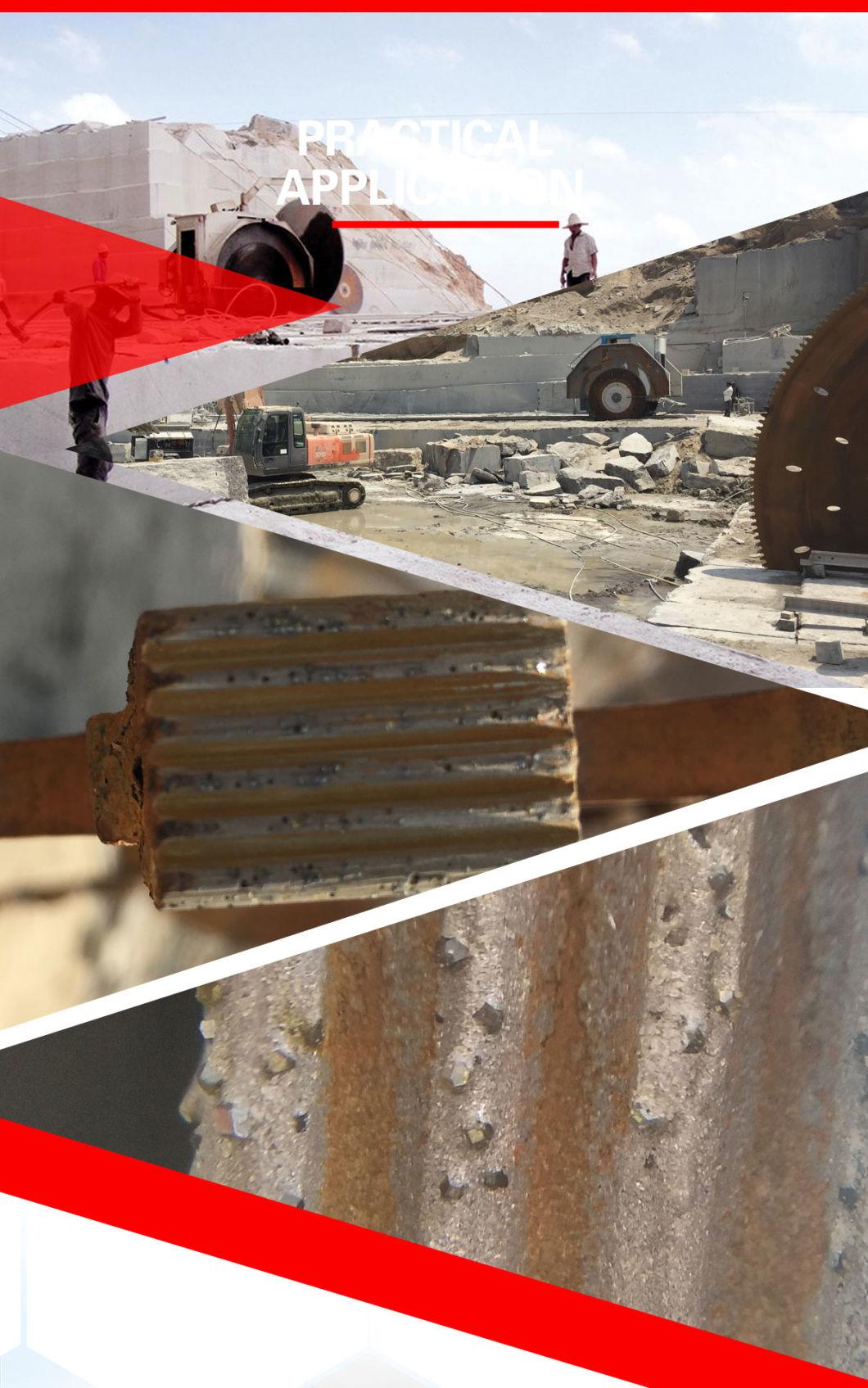

Quarry segment is used for stone mining. Such as marble quarry, sandstone quarry, granite quarry, limestone quarry, etc., in China, South Africa, Egypt, Vietnam and other countries, circular saw It is used a lot, and it is very popular in recent year to install our segment on circular saws for mining.

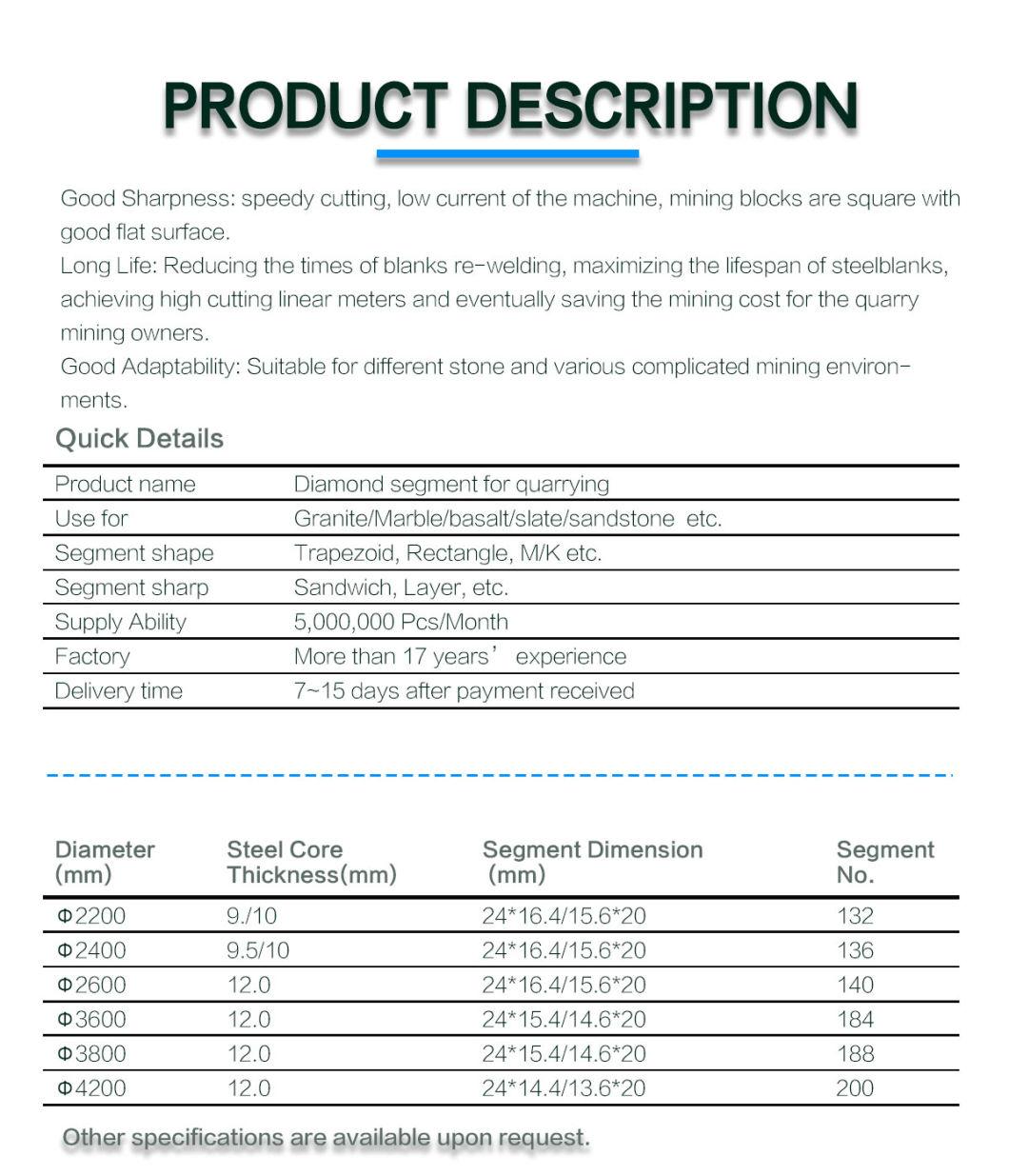

Advantage of linsing Quarrying Segments

Good Sharpness: speedy cutting, low current of the machine, mining blocks are square with good flat surface.
Long Life: Reducing the times of blanks re-welding, maximizing the lifespan of steelblanks, achieving high cutting linear meters and eventually saving the mining cost for the quarry mining owners.
Good Adaptability: Suitable for different stone and various complicated mining environments.

Diameter(mm)	core thickness(mm)	NO.	Segments Specifications 1(mm)	Segments Specifications 2(mm)	Color
2200	9./10	132	22*16.4/15.6*15	24*16.4/15.6*20	Yellow&golden&silvery
2400	9.5/10	136	22*16.4/15.6*15	24*16.4/15.6*20	Yellow&golden&silvery
2600	12.0	140	22*16.4/15.6*15	24*16.4/15.6*20	Yellow&golden&silvery
3600	12.0	184	22*15.4/14.6*15	24*15.4/14.6*20	Yellow&golden&silvery
3800	12.0	188	22*15.4/14.6*15	24*15.4/14.6*20	Yellow&golden&silvery
4200	12.0	200	22*14.4/13.6*15	24*14.4/13.6*20	Yellow&golden&silvery

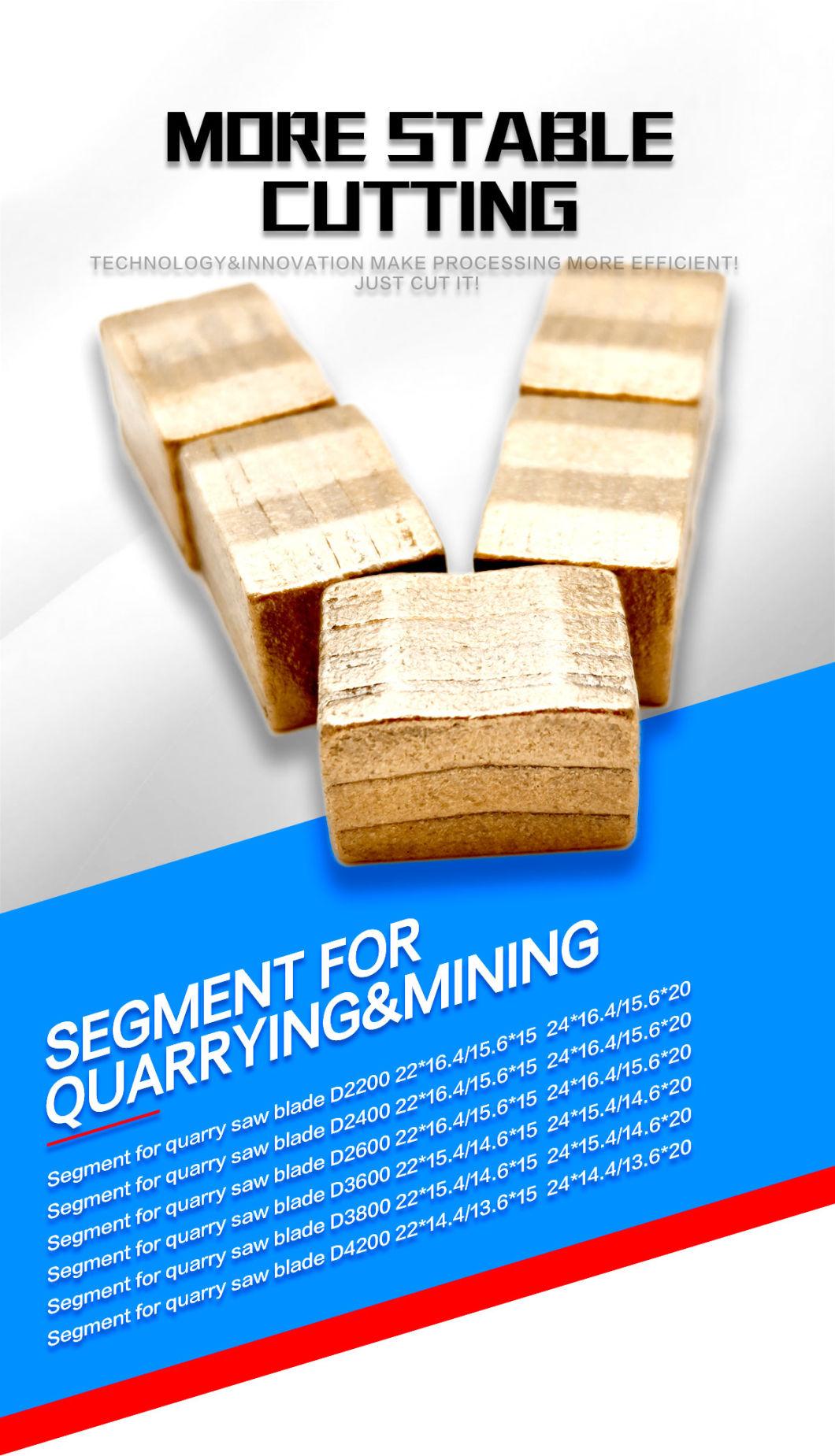

Linsing quarry segments standard sizes

Product other Sepcification

There are 4 main Double-blades-Combinations: D2200/D3300, D2200/D3600, D2400/D3300, D2400/D3600
Detailed Parameters:

Blank thickness (MM)	Blanks Diameter (MM)	Blanks tips (PCS)	Segment Size (MM)
9.5/10.0	2200	132	23*14/13*15
9.5/10.0	2400	136	23*14/13*15
9.5/10.0	3300	170	23*12.5/11.5*15
9.5/10.0	3600	180	23*12.5/11.5*15

There are 3 main Triple -Blade-Combinations: D2600/D3600/D4200,D2600/D3800/D4600, D2600/D3800/D4800
Detailed Parameters:

Blank thickness (MM)	Blanks Diameter (MM)	Blanks tips (PCS)	Segment Size (MM)
12	2600	142	23*16/15*15
12	3600	180	23*15/14*15
12	4200	210	23*14/13*15

Blank thickness (MM)	Blanks Diameter (MM)	Blanks tips (PCS)	Segment Size (MM)
12	2600	154	23*16/15*15
12	3800	190	23*15/14*15
12	4600	230	23*14/13*15

Blank thickness (MM)	Blanks Diameter (MM)	Blanks tips (PCS)	Segment Size (MM)
12	2600	180	23*16/15*15
12	3800	190	23*15/14*15
12	4800	240	23*14/13*15
