• Specification：350mm
• Trademark：Linsing
• Origin：Shangrao, China
• Production Capacity：500PCS,Day

Basic Info.

Specification 350mm Trademark Linsing Origin Shangrao, China Production Capacity 500PCS/Day

Product Description

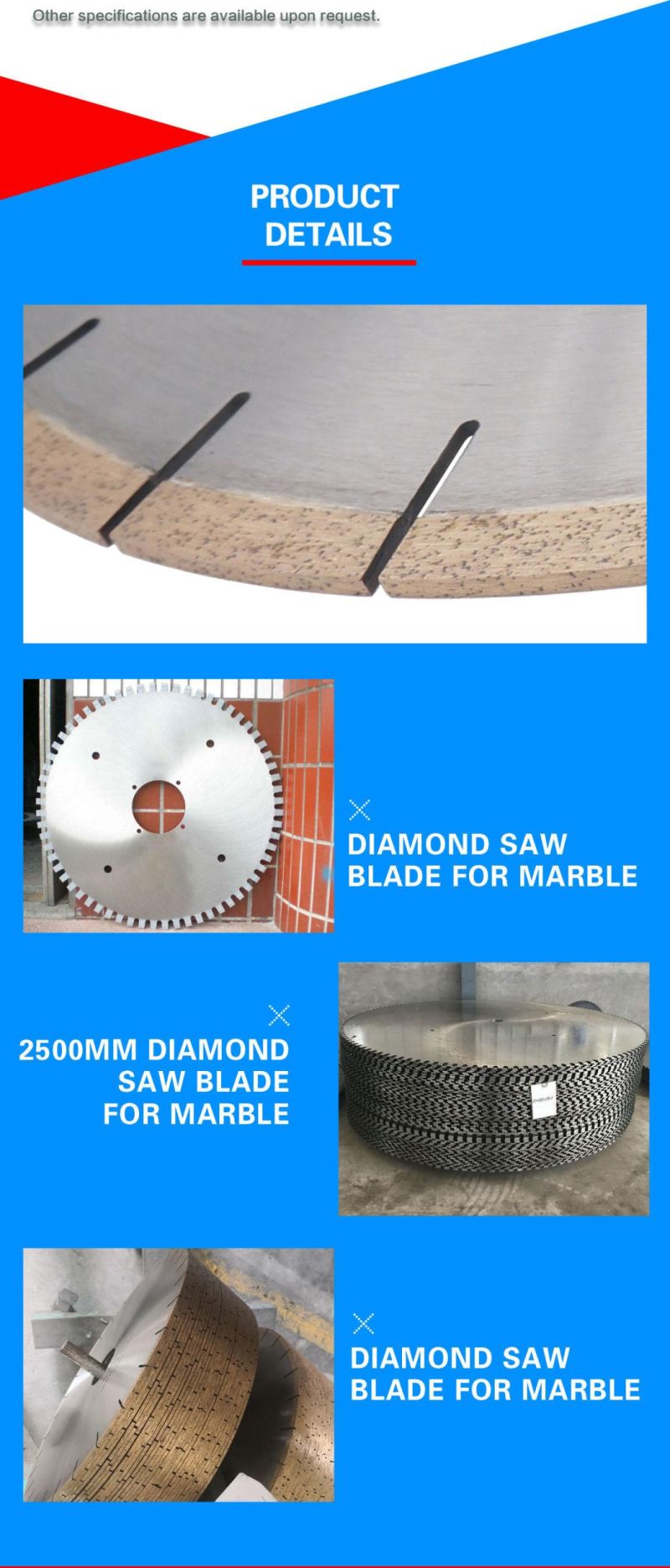

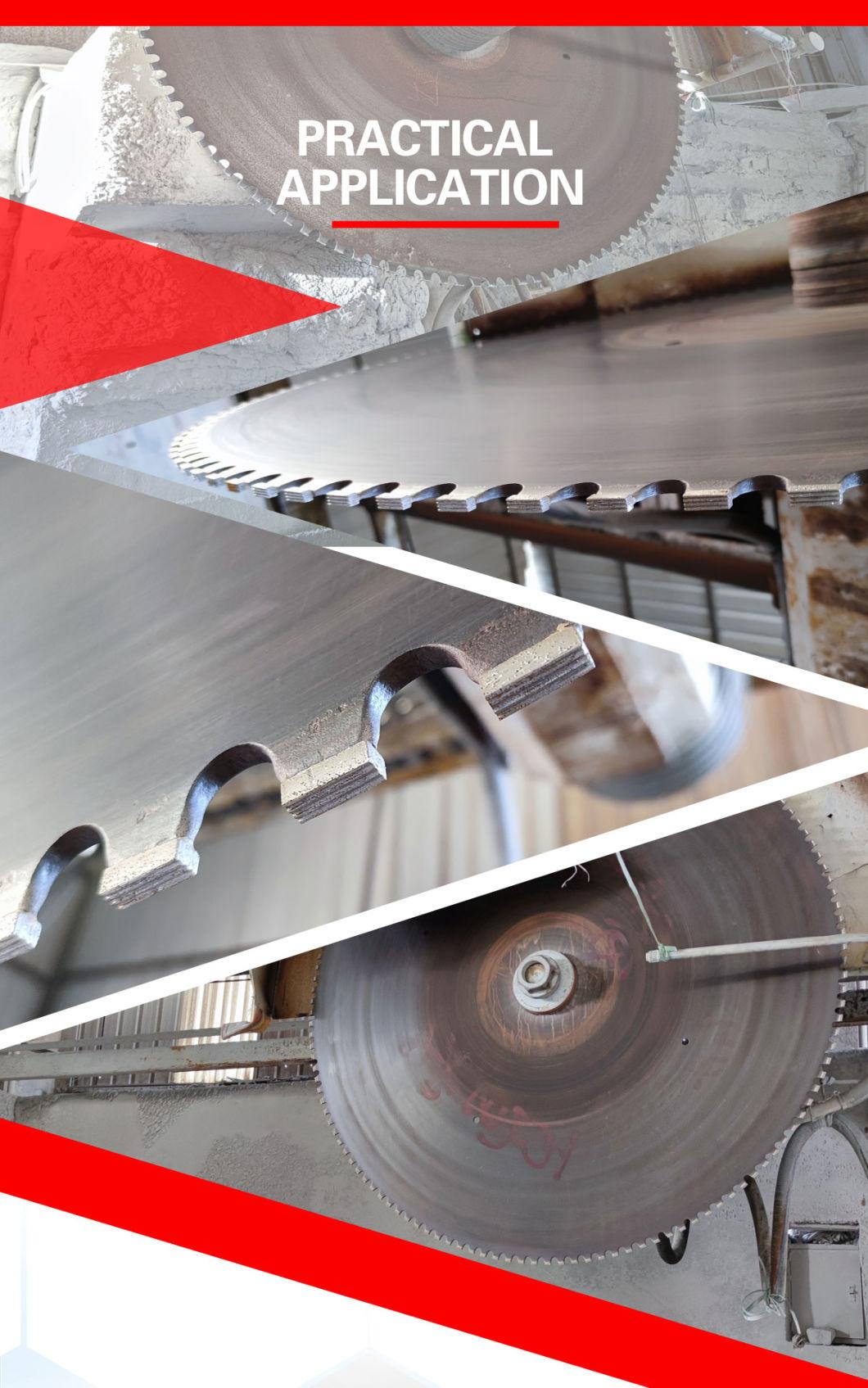

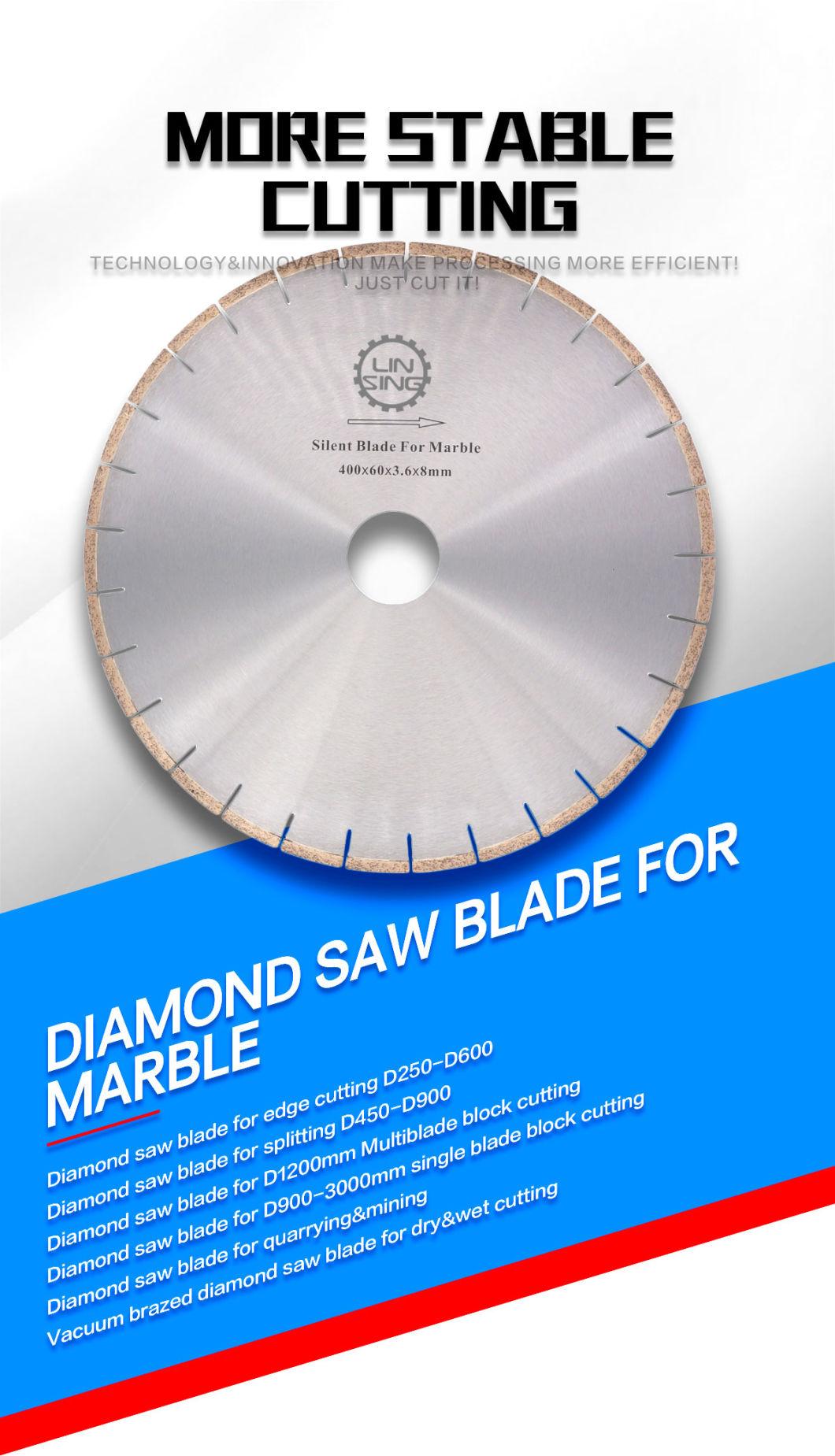

Diamond saw blade for marble block cutting
Product features:
1. Fast cutting, no vibrate, no chipping.
2. Long lifetime for different stone hardness.
3. Good cutting result with smooth cutting, flat surface, and even size.
4. Narrow cutting gap that stone waste reduction.
5. Easy for diamond opening.
6. Other specifications are available upon request.

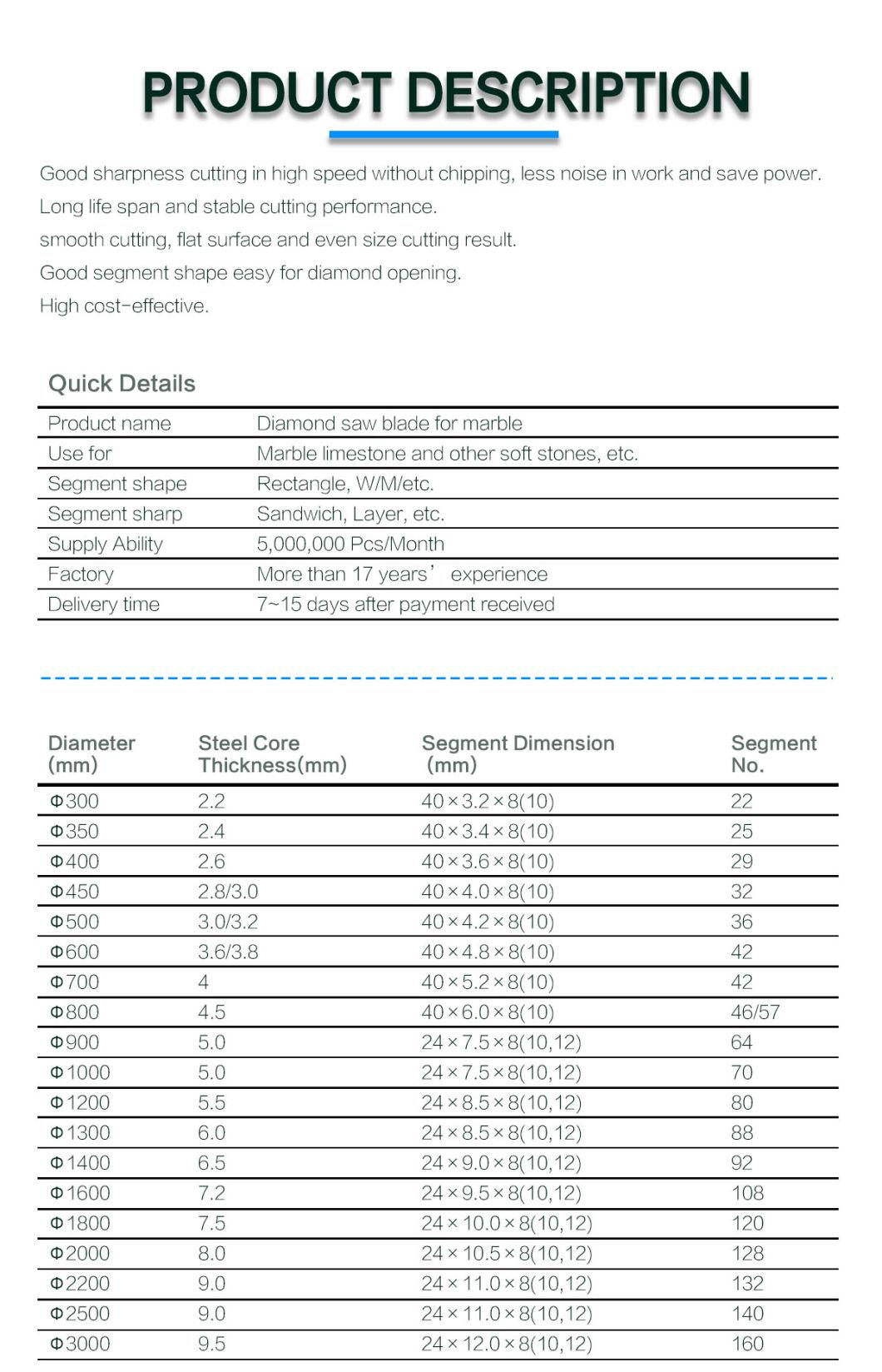

Diameter(mm)	Steel Core Thickness(mm)	Segment Dimension (mm)	Segment No.
Φ900	5	24×7.5×8(10,12)	64
Φ1000	5	24×7.5×8(10,12)	70
Φ1200	5.5	24×8.5×8(10,12)	80
Φ1300	6	24×8.5×8(10,12)	88
Φ1400	6.5	24×9.0×8(10,12)	92
Φ1600	7.2	24×9.5×8(10,12)	108
Φ1800	7.5	24×10.0×8(10,12)	120
Φ2000	8	24×10.5×8(10,12)	128
Φ2200	9	24×11.0×8(10,12)	132
Φ2500	9	24×11.0×8(10,12)	140
Φ3000	9.5	24×12.0×8(10,12)	160

Marble block cutting saw blade sizeDiamond saw blade for marble splitting
Product features:
1. Good sharpness, high cutting efficiency, and long life.
2. Refine splitting edge quality and good cutting performance.
3. Suitable for all classes of marble splitting.
4. Easy for diamond opening.
5. Other specifications are available upon request.

Diameter(mm)	Steel core(mm)	Head size(mm)	No.
400	2.6	40×3.8×10	28
450	3	40×4.2×10	32
500	3	40×4.2×10	36
550	3.6	40×5.0×10	40
600	3.6	40×5.0×10	42
650	4	40×5.5×10	46
700	4	40×5.5×10	50
750	4	40×5.5×10	54
800	4.5	40×6.0×10	57
850	4.5	40×6.0×10	58

Marble splitting saw blade sizeDiamond saw blade for marble edge cutting
Product features:
1. Good sharpness, high cutting efficiency, and long life.
2. Good continuity, effectively reduce the distance between teeth.
3. Better cutting sharpness and trimming efficiency.
4. Further strengthen the effect of trimming, reduce the loss of stone.
5. Widely used for cutting marbles and soft stones.
6. Other specifications are available upon request.

Diameter(mm)	Steel core(mm)	Head size(mm)	No.
300	2.2	43/40×3.2×10	21
350	2.2	43/40×3.2×10	24
400	2.6	43/40×3.6×10	29
450	3	42/40×4.0×10	32

Marble edge cutting blade
