• Model NO.：YG-600,700
• Rated Input Power：6800W
• Voltage：220V or Customized
• Frequency：50Hz,60Hz
• Cutting Disc：Diamond Cutting Disc
• Warranty：1 Year
• Power：Electric
• Cutting Depth：300-750mm
• Transport Package：Wooden Case Export Package
• Specification：95kg, 0.45m3
• Trademark：Yugong
• Origin：China, Henan
• HS Code：8464101000
• Production Capacity：5000,Month

Basic Info.

Model NO. YG-600/700 Rated Input Power 6800W Voltage 220V or Customized Frequency 50Hz/60Hz Cutting Disc Diamond Cutting Disc Warranty 1 Year Power Electric Cutting Depth 300-750mm Transport Package Wooden Case Export Package Specification 95kg, 0.45m3 Trademark Yugong Origin China, Henan HS Code 8464101000 Production Capacity 5000/Month

Product Description

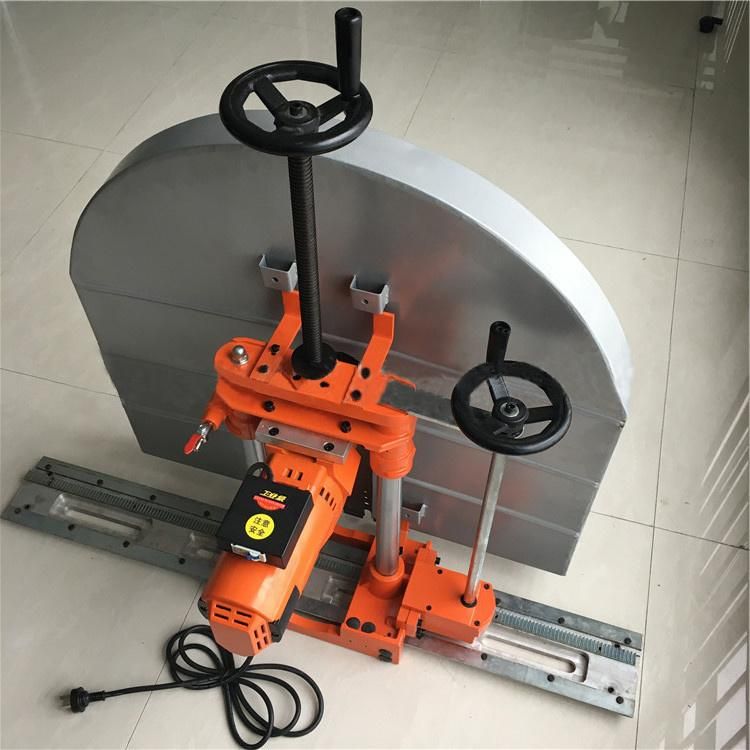

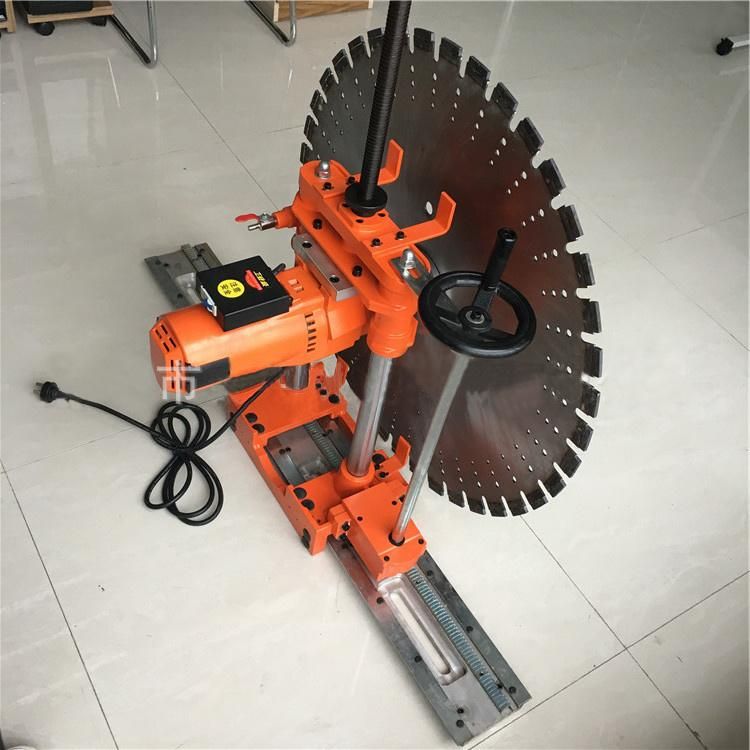

                        Hydraulic Concrete Wall Saw Cutting Machine


Product Description:

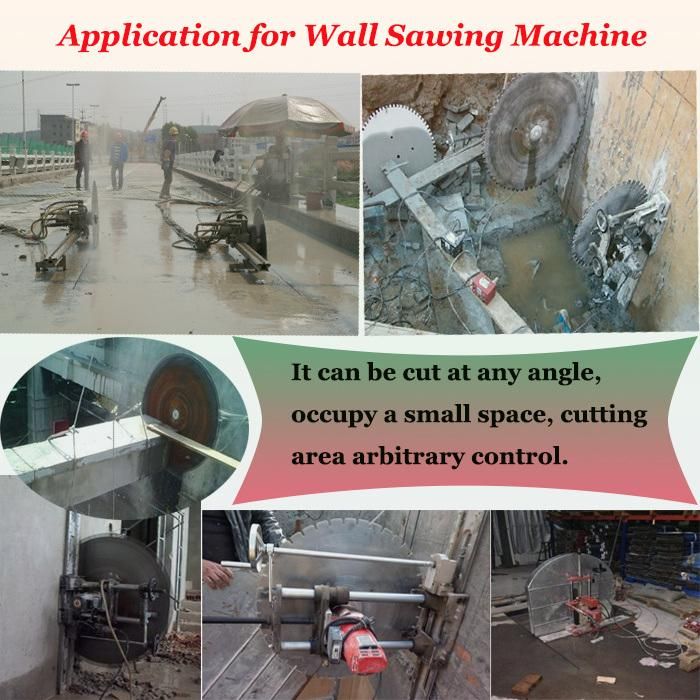

Electric Driven Concrete Wall Saw Cutting Machine is designed to cut concrete, wall, road, rocks, etc.It can cut general reinforced concrete walls, board cutting, demolition or the door hole. The cutting surface requires to be a smooth and straight concrete cutting, cutting depth is decided by the blade size adjustment, 800/1000/1200mm blade adjustable, cutting depth up 0-550mm.


Technical Parameters

Model	YG-800	YG-1000	YG-1200
Motor	220V, 50Hz, 1Phase	220V, 50Hz, 1Phase	220V, 50Hz, 1Phase
Power	6200w	6580w	6980w
Blade	800mm	1000mm	1200mm
Cutting Depth	350mm	450mm	550mm
Watering	Manual	Manual	Manual
Middle Handle	Depth	Depth	Depth
Side Handle	Movement	Movement	Movement
Dimension	1200*450*1150mm	1200*550*1250mm	1200*650*1300mm
Weight	80kg	87kg	95kg

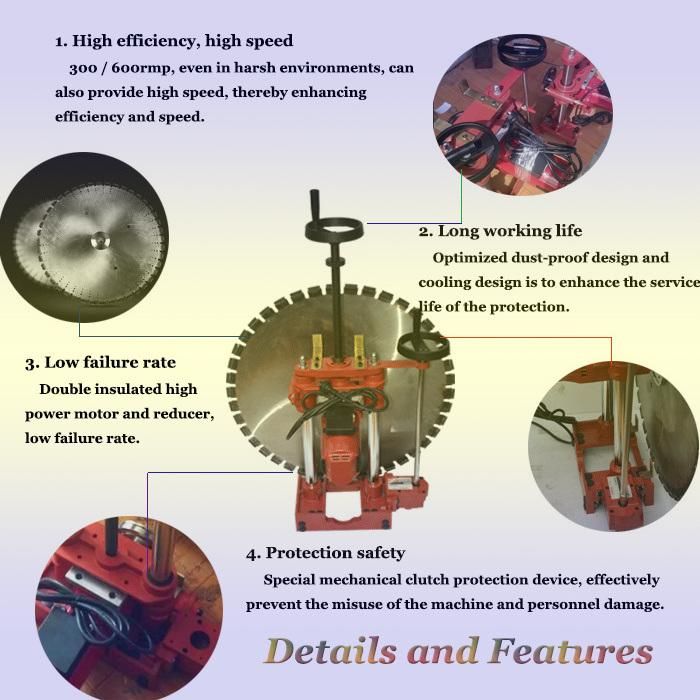

Product Advantages
Simple Operation instructions:
1. fix the rails on the wall with anchors.
2. put the frame in the rails.
3. fix the disc and saw cover.
4. power on, then move the handle to cut.
(Middle handle is for disc in/out, side handle is for machine movement.)

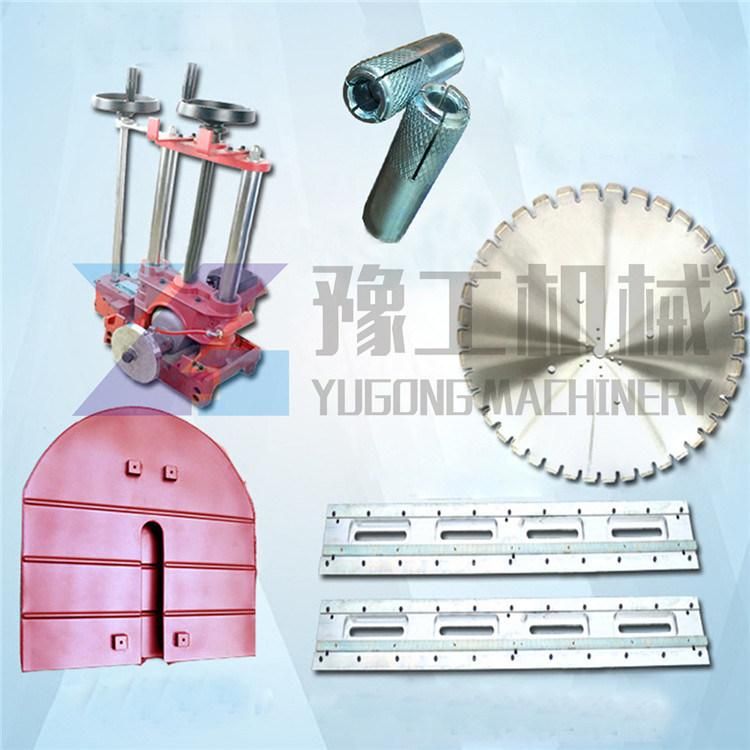

The Whole Set of Machine Includes
1. one frame with an electric motor, 220V, 50Hz, 3000w.
    (We could customize the motor according to your requirement.)
2. one disk, 1000mm.
3. one saw cover.
4. one set of rails, 1.2m*2 pcs.
5. one set of anchors

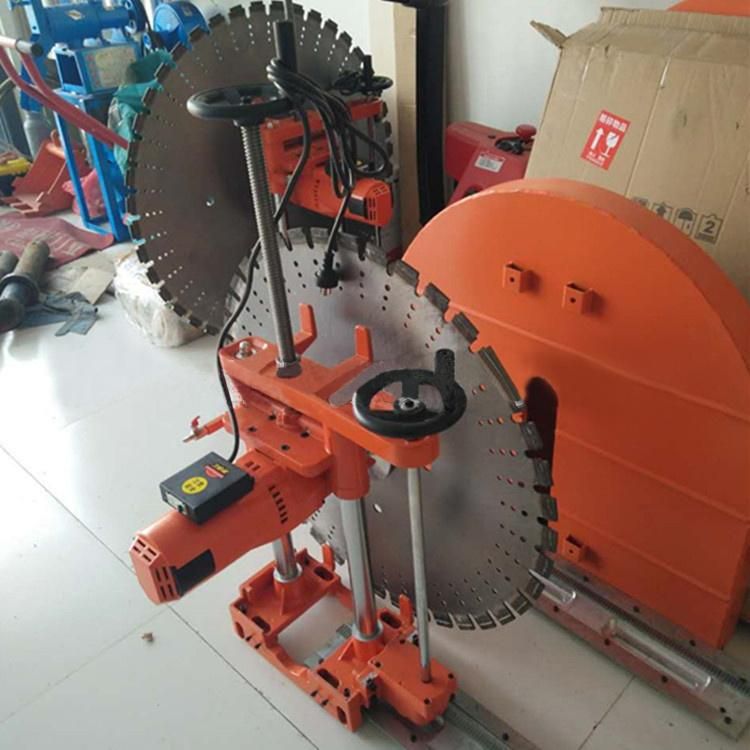

Detailed Images
