Diamond Tools

Wall Sawing Concrete Cutting Machine

Henan Yugong Machinery Co., Ltd.
  • Blade Type:Turbine
  • Manufacturing Process:Electroplating
  • Application:Concrete
  • Product Name:Concrete Wall Cutting Machine
  • Cutting Depth:30-50cm
  • Cutting Efficiency:3-6m,H

Base Info

  • Model NO.:YG-1000
  • Rail Lenghth:1.2m
  • Motor Power:6150W
  • Voltage:220V
  • Blade Diameter:1000mm
  • Color:Red
  • Weight:78kg
  • Blade Life:100m
  • Transport Package:Wooden Case
  • Specification:1200*1200*800mm
  • Trademark:YUGONG
  • Origin:China
  • Production Capacity:1000 Sets,Month

Description

ModelYG-800YG-1000YG-1200Saw blade diamete800mm1000mm1200mmCut depth320mm400mm500mmMotor power6150W6150W 6150WCutting efficiency 3-6m/h3-6m/h 3-6m/hVoltage 220v220v 220vBest use length 100m100m 100mSize1000*1000*800mm1200*1200*800mm1400*1400*900mmWeight50kg78kg98kgFrequency50-60Hz50-60Hz 50-60Hz





The whole set of machine inculdes:

1. one frame with an electric motor, 220V, 50Hz.

(We could customize the motor according to your requirement.)

2. one disk, 800-1200mm or customized.

3. one set of rails, 1.2m*2 pcs.

4. one saw cover.

5. one set of anchors





Product features



1.Reduce the labor intensity, safe and reliable operation

2.with overload protection, powerful, improved cutting capacity and labor productivity.

3.Special mechanical clutch protection device,safety.

4.Long service life, save maintenance cost.

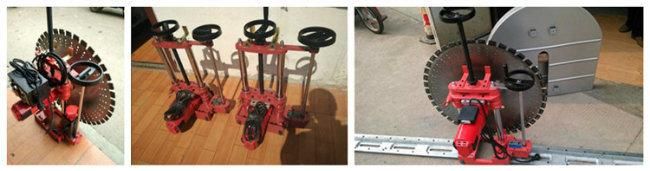

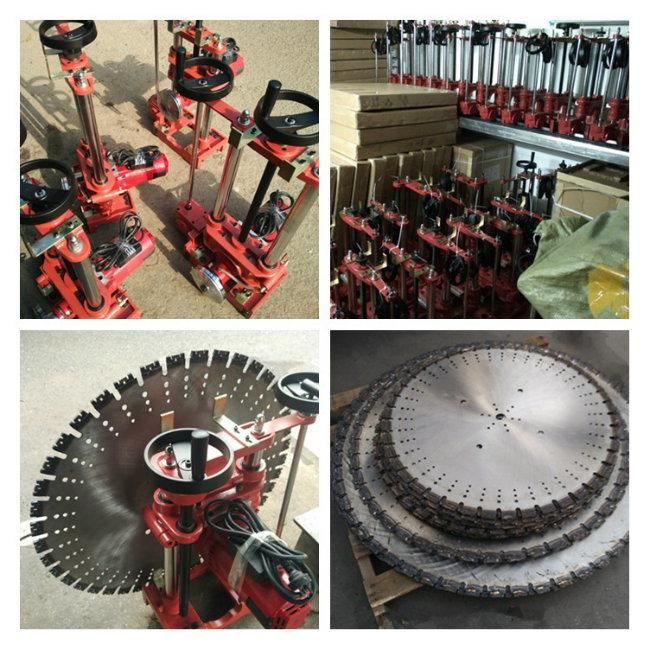

Product Overviews


Wall Sawing Concrete Cutting Machine

Wall Sawing Concrete Cutting Machine

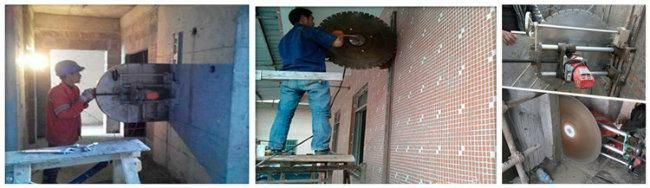

On site working

Wall Sawing Concrete Cutting Machine




Packaging & Shipping

Wall Sawing Concrete Cutting Machine




FAQ

Q1: How long is your delivery time?
A2: It is according to the model and quantity.
    Generally it is 3-5 days if the machines are in stock.
    It will be 15-30 days if you want to customize the machines.


Q2: Do you provide samples? Is it free or extra?
A3: Yes, we could offer you the sample machine.
   But it's not free. You need to pay for the sample and the cost of freight.


Q3: What is your terms of payment?
A4: Normally 30% T/T as deposit, the balance to paid before shiping or the copy of BL; We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
