Diamond Wire Saw for Granite and Marble Stone Cutting Machine
Henan Yugong Machinery Co., Ltd.- Application：Ceramic
- Type：Electroplating
- Name：Hydraulic Diamond Wire Saw
- Keyword：Diamond Marble Concrete Cutting Saw
- Power Source：Hydraulic Power Unit
- Automation：Semi-Automatic
Base Info
- Dimension：1300*2500*300mm
- Motor Power：25kw
- Wire Rope Diameter：11.5mm

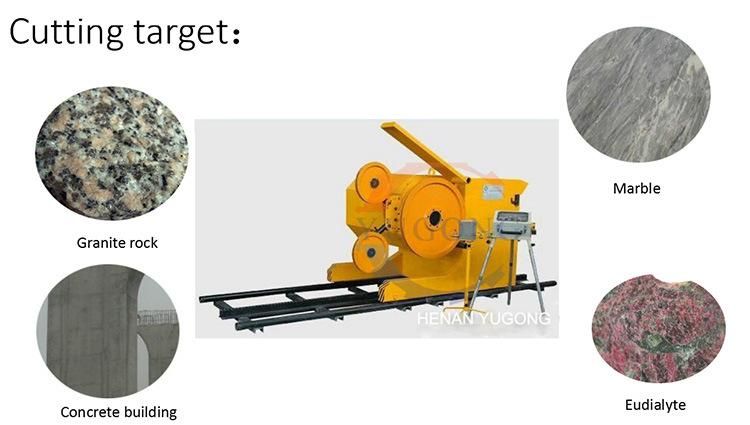

- Usage：Jadestone, Cement Brick, Concrete Curb, Granite
- Cutting Ability：High Speed
- Source Voltage：380V,220V
- Power：Hydraulic or Electric
- Hydraulic Pump Type：Gear Pump
- Hydraulic Pump Power：25kw
- Main Motor Flow：40-100L,Min
- Wire Driving Type：Hydraulic
- Transport Package：Wooden Case
- Specification：210kg
- Trademark：YUGONG
- Origin：Henan( China)
- HS Code：8461500090
- Production Capacity：20sets,Week
Description

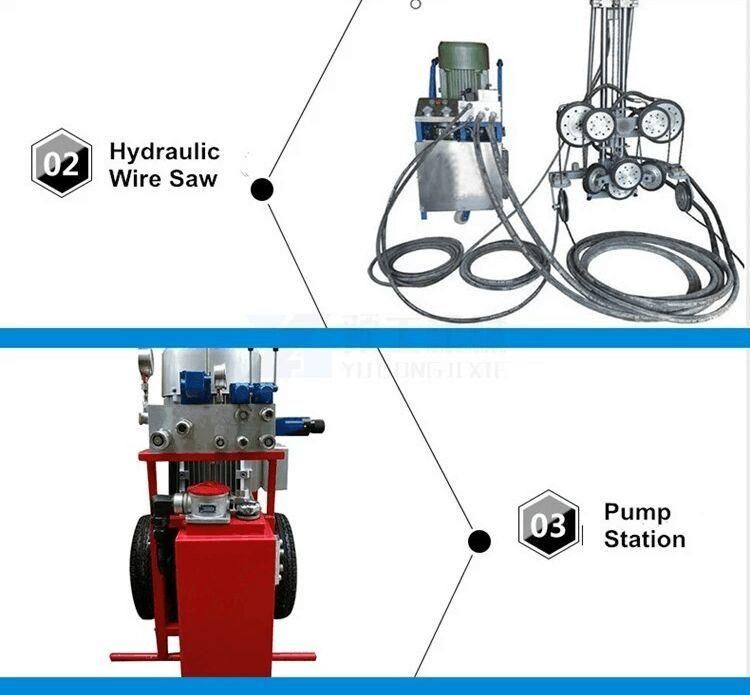

Hydraulic Pump
YG-25
Motor Power
25kw
Voltage
220V/380V, 50Hz
Motor Type
HM-80, 2 Cylinders
Rotation
1300r/min
Working Pressure
15-20Mpa
Weight
170kg
Size
720*650*1050mm

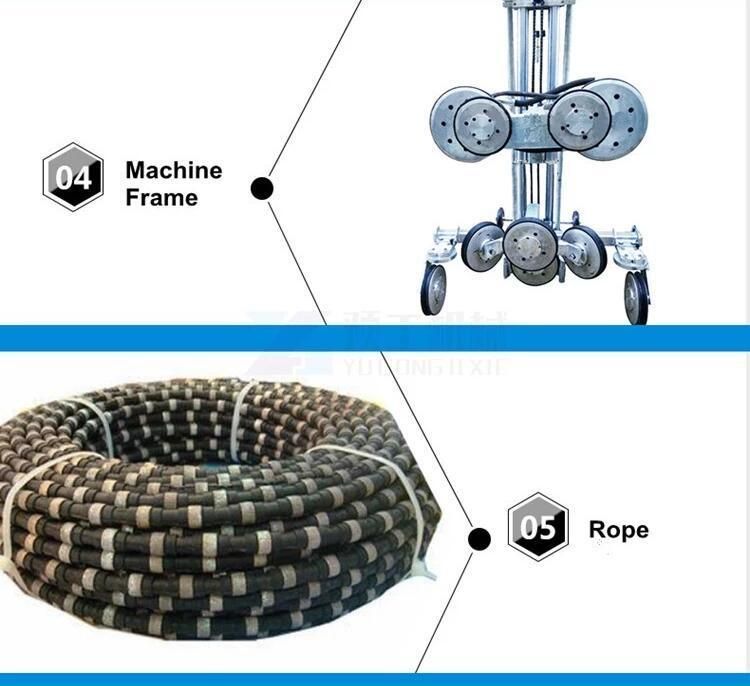

Frame & Wheels
Aluminum
Wheels
10
Weight
75kg
Size
90*90*1700mm
Diamond Wire Saw
Diamond Wire
Specification
φ11.5mm 40beads/m
Cutting speed
3~5m2/h
Wire life
2~3m2/m
Structure
According to the power, it can be divided into two types: electric wire saw and hydraulic wire saw. According to the different cutting purposes and requirements, it can be divided into concrete cutting wire saw, mining wire saw (mining wire saw mainly for marble, granite mining shaping processing with mining waste stone cutting machine at the same time mining waste material)

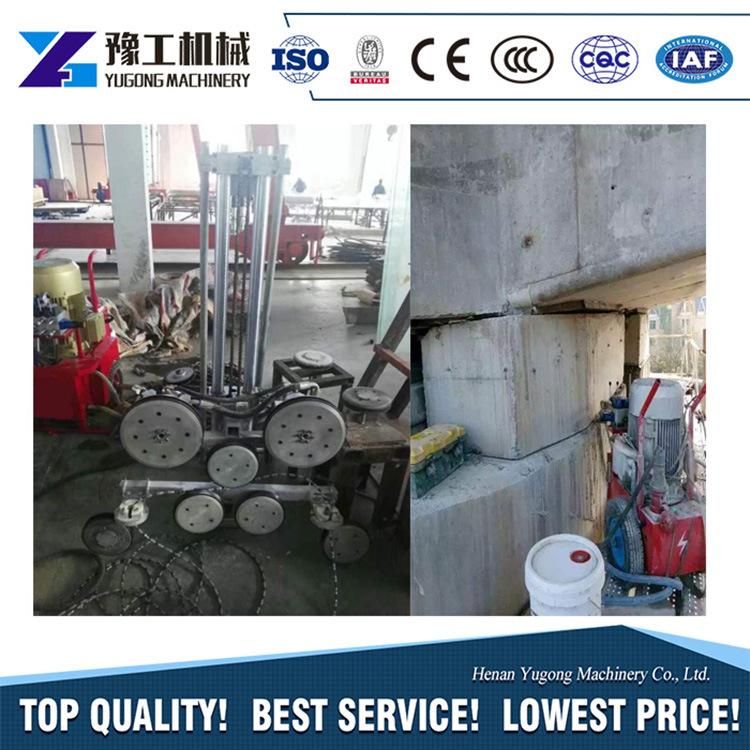

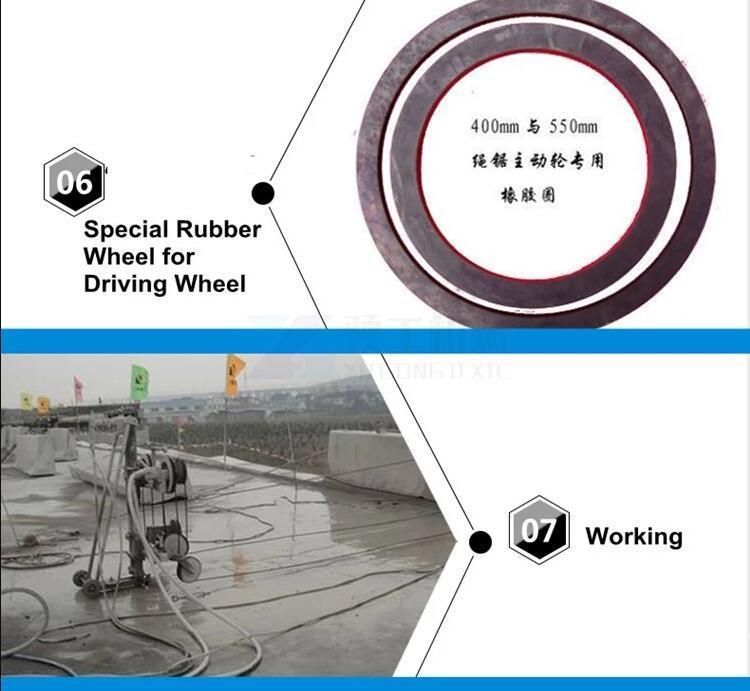

Working Site
Hydraulic Diamond Wire Saw Machine is used to cut concrete, granite, rock, walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.
Packaging& Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
