Nw Hw Pw Casing for Drilling Use
Forsun Ultra-hard Material Industry Co., Ltd.- Type：Core Drill
- Usage：Metal Drilling, Masonry Drilling, Well Drilling, Wood Drilling
- Certification：ISO

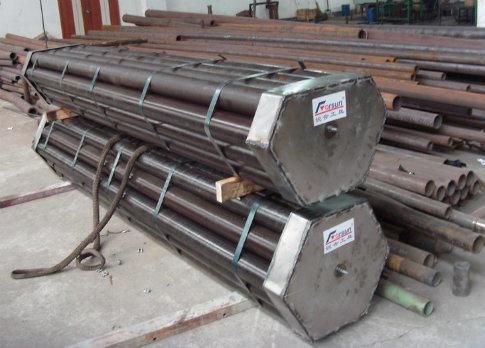

- Transport Package：Iron Reinforced Frame
- Specification：HW
- Trademark：FORSUN
Base Info
- Model NO.：HW
- Origin：Changsha
- HS Code：73045120
- Production Capacity：1000 Per Month
Description
SIZE
The standard effective lengths are 3.0, 1.5, 1.0 & 0.5 meters. Other lengths may be manufactured upon request.

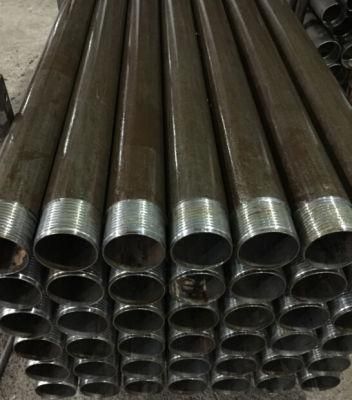

All casing tubes have right hand threads. Left hand threads can be manufactured if requested.
Note
Casing sizes are designed to nest telescopically one inside the other as illustrated (fig.1)
The outer diameter of each casing size is small enough to fit in the hole drilled by the next larger core bit size.
The inner diameter is large enough to allow drilling with the same designated size of drilling equipment or for inserting the next smaller size of casing tubes and their relevant equipment (casing bits, shoes etc.)
e.g. 86 (84/77) casing tubes fit into the hole drilled by a T2 101 size core bit and allow drilling with T2 86 size drilling equipment and inserting 76 (74/67) casing.
ACCESSORIES:
The full range of accessories for metric casing tubes is available:
Casing plugs
T.C. casing bits & shoes
casing drive shoes
recovery/fishing equipment (recovery taps)
Zize available:
"Q"Series: BQ, NQ, HQ, PQ
"W"Series: RW, EW, AW, BW, NW, HW PW PWT
"WJ"Series: AWJ, BWJ, NWJ, KWJ, HWJ
Metric Series: 33, 42, 50
W and WT coring casing is quality crafted from 4130 grade material, ensuring performance on even the most demanding coring operations. W and WT casing is also offered in other grades for a more economical option when the job allows. All Roschen' casing is compatible with other DCDMA standard casing and is available in all standard industry sizes.
"W" and "WT" FLUSH JOINT CASING SPECIFICATIONS
