• Model NO.：SDCD
• Installing Equipment：Hand-Held Drillers
• Arbor：M16
• Transport Package：Carone, Pallet
• Specification：32mm-162mm
• Trademark：COREDIAM
• Origin：China
• HS Code：82071910
• Production Capacity：2000 Pieces,Month

Basic Info.

Model NO. SDCD Installing Equipment Hand-Held Drillers Arbor M16 Transport Package Carone, Pallet Specification 32mm-162mm Trademark COREDIAM Origin China HS Code 82071910 Production Capacity 2000 Pieces/Month

Product Description

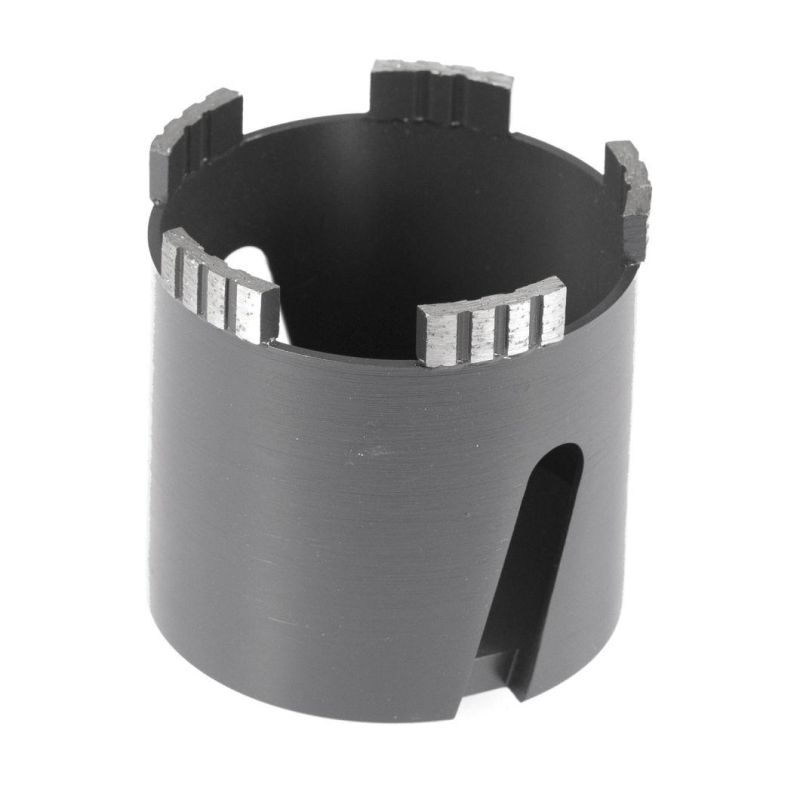

1. Laser welded diamond Dry core drill introduction

The dry core drill is laser welded by advanced laser welding production line, which ensures the core bits have high welding strength.
Common sizes of dry core drill are ranging 32mm to 200mm in size.
Dry core drill is used for professionally dry drilling granite, marble, masonry with superior efficiency.
Special turbo segments design make the segments have very excellent sharpness, achieving fast drilling.

2.Specification


Item No.	Diameter	Segment  Height	Arbor	Effective Length
SDCD03215010	32mm	10mm	M16	150mm
SDCD03815010	38mm	10mm	M16	150mm
SDCD04215010	42mm	10mm	M16	150mm
SDCD05215010	52mm	10mm	M16	150mm
SDCD06815010	68mm	10mm	M16	150mm
SDCD08515010	85mm	10mm	M16	150mm
SDCD10215010	102mm	10mm	M16	150mm
SDCD10715010	107mm	10mm	M16	150mm
SDCD11715010	117mm	10mm	M16	150mm
SDCD12715010	127mm	10mm	M16	150mm
SDCD15215010	152mm	10mm	M16	150mm

3.Features

Manufacturer technology: Laser welding
Suitable: dry drilling concrete, reinforced concrete, masonry with superior efficiency.
Advantage: good segment sharpness, achieving fast drilling, without segment burnt.

4.Delivery time

1 weeks for samples after order confirmed.
2-3 weeks for batch order after payment confirmed.

5.Production&Dispatch


6.Corediam service
We accept customized lengths and segments for wet core drills.
Also, we help to design the total solution of core drilling projects.

7.Corediam introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
