• Transport Package：One PCS One Plastic Bag
• Specification：400mm
• Trademark：Linsing
• Origin：Shangrao, China
• Production Capacity：500PCS,Day

Basic Info.

Transport Package One PCS One Plastic Bag Specification 400mm Trademark Linsing Origin Shangrao, China Production Capacity 500PCS/Day

Product Description

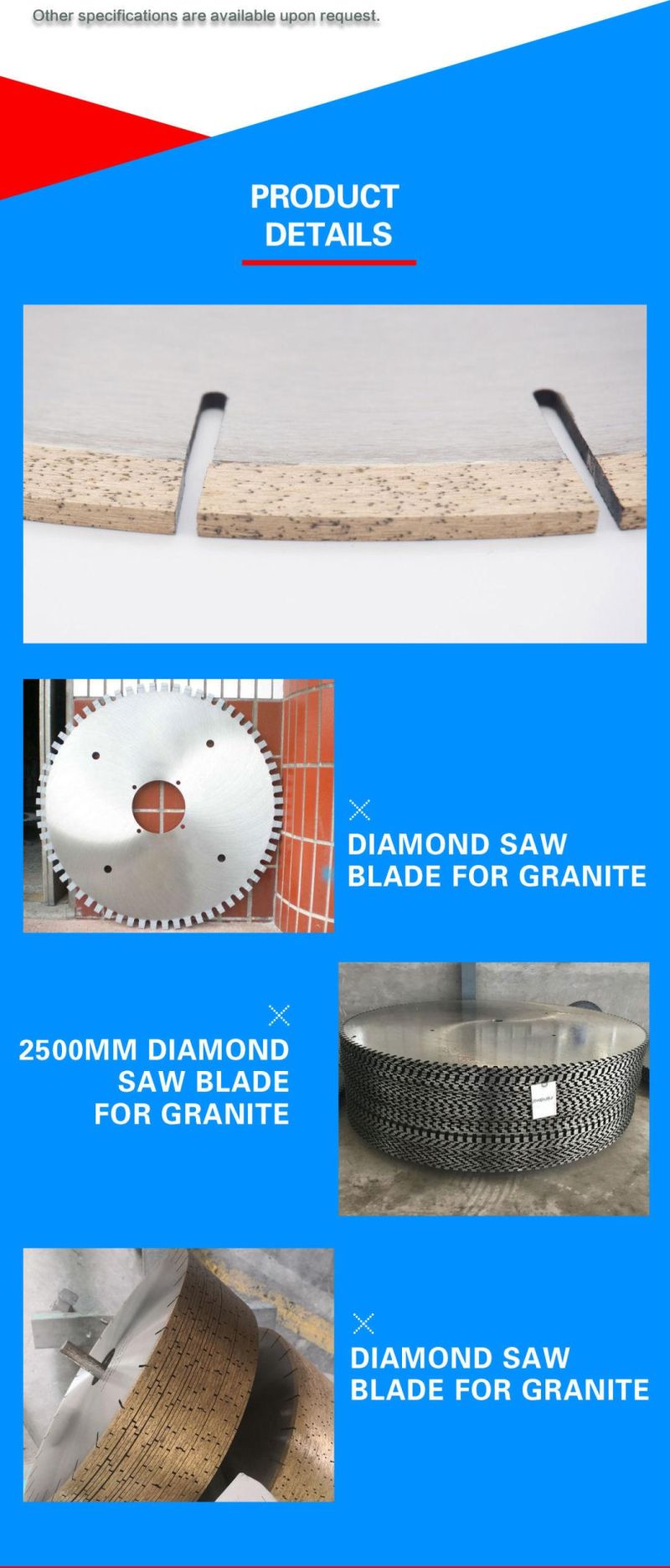

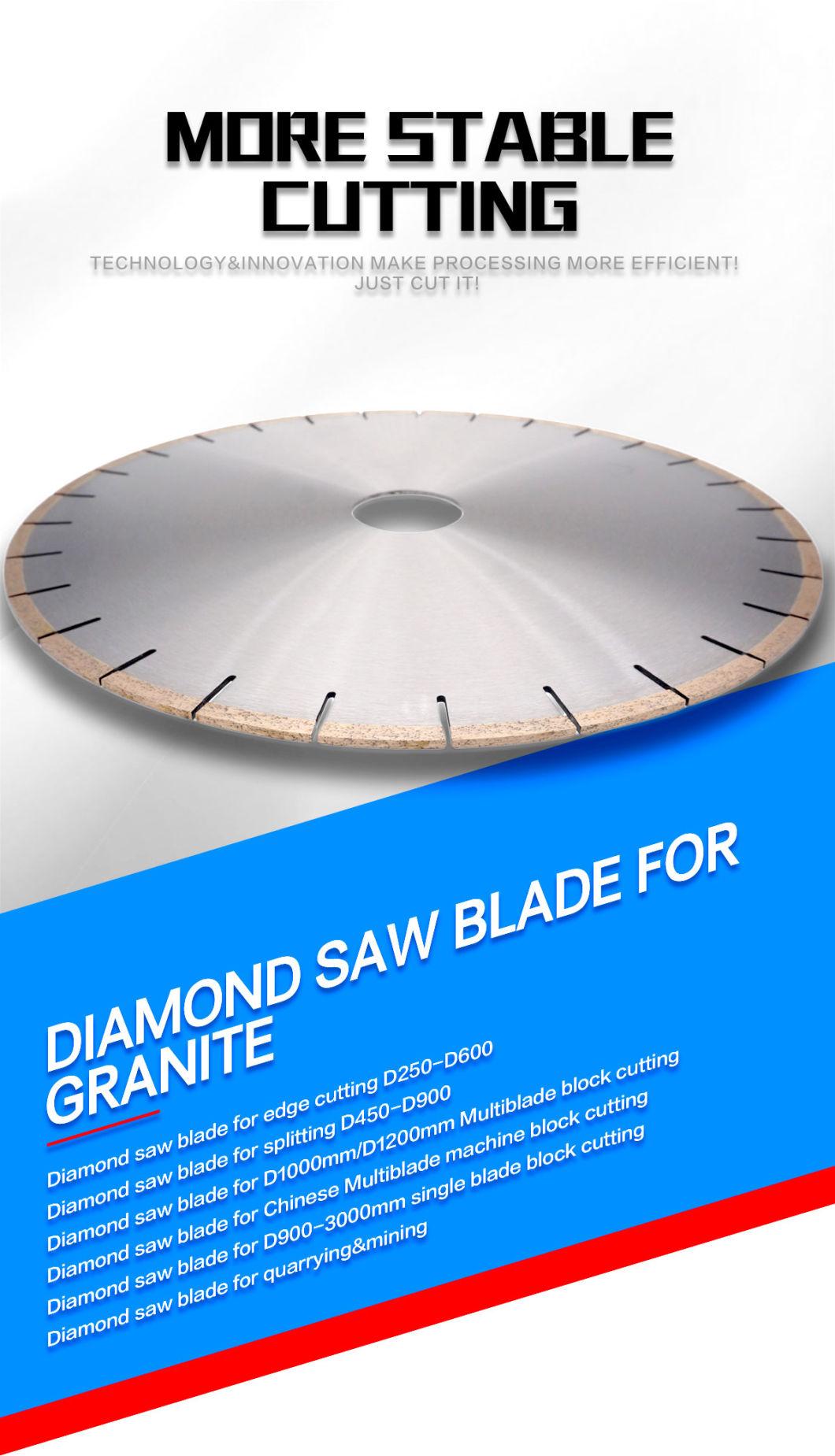

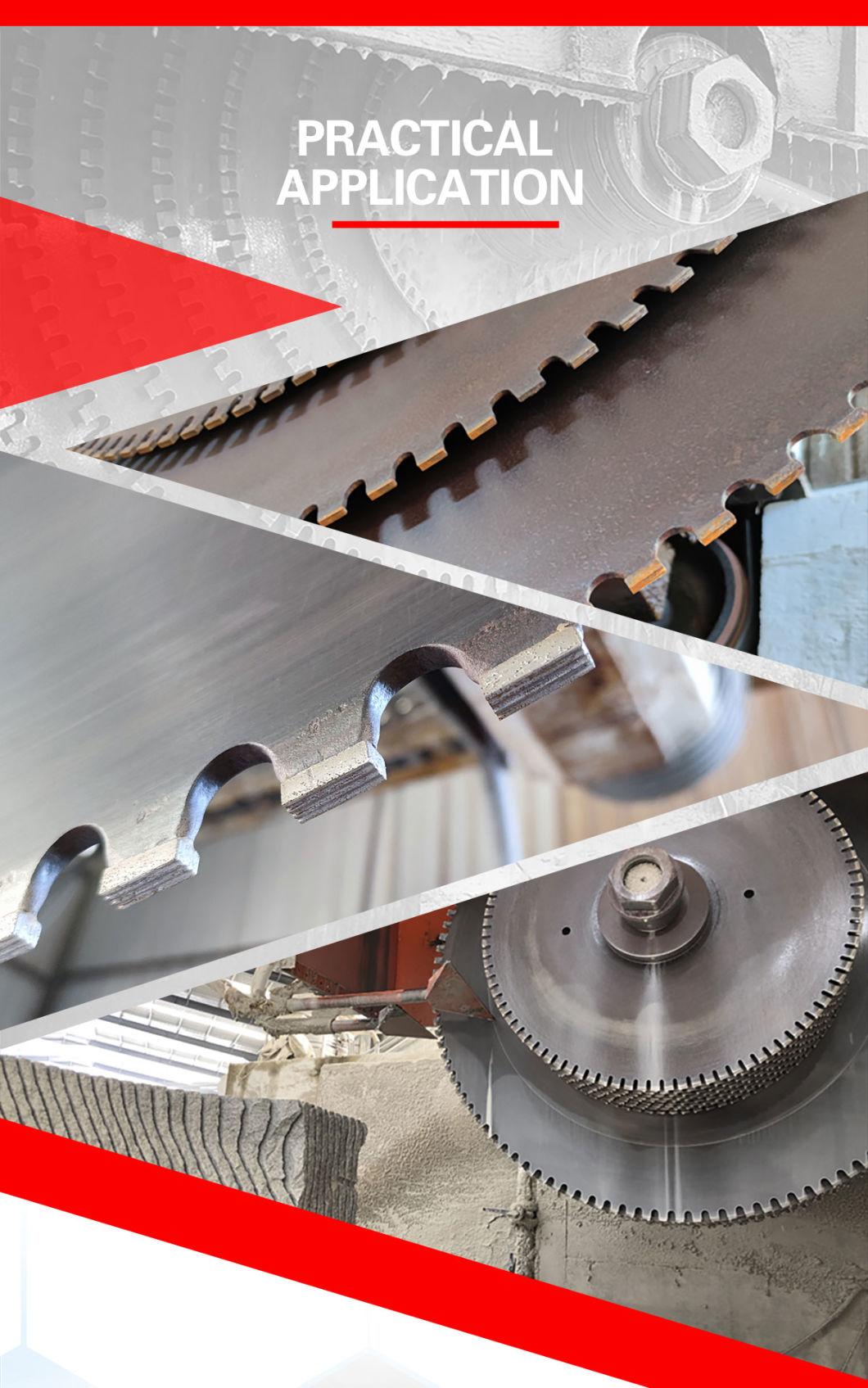

Diamond saw blade for granite block cutting
Product features:
1 The blade has good sharpness and high efficiency in the process of cutting, meanwhile, it has a long lifespan.
2 Good cutting results: smooth cutting, flat surface, and even size.
3 Stable cutting, narrow cutting gap, stone waste reduction.
4 M-Shape segment is easy for diamond opening.

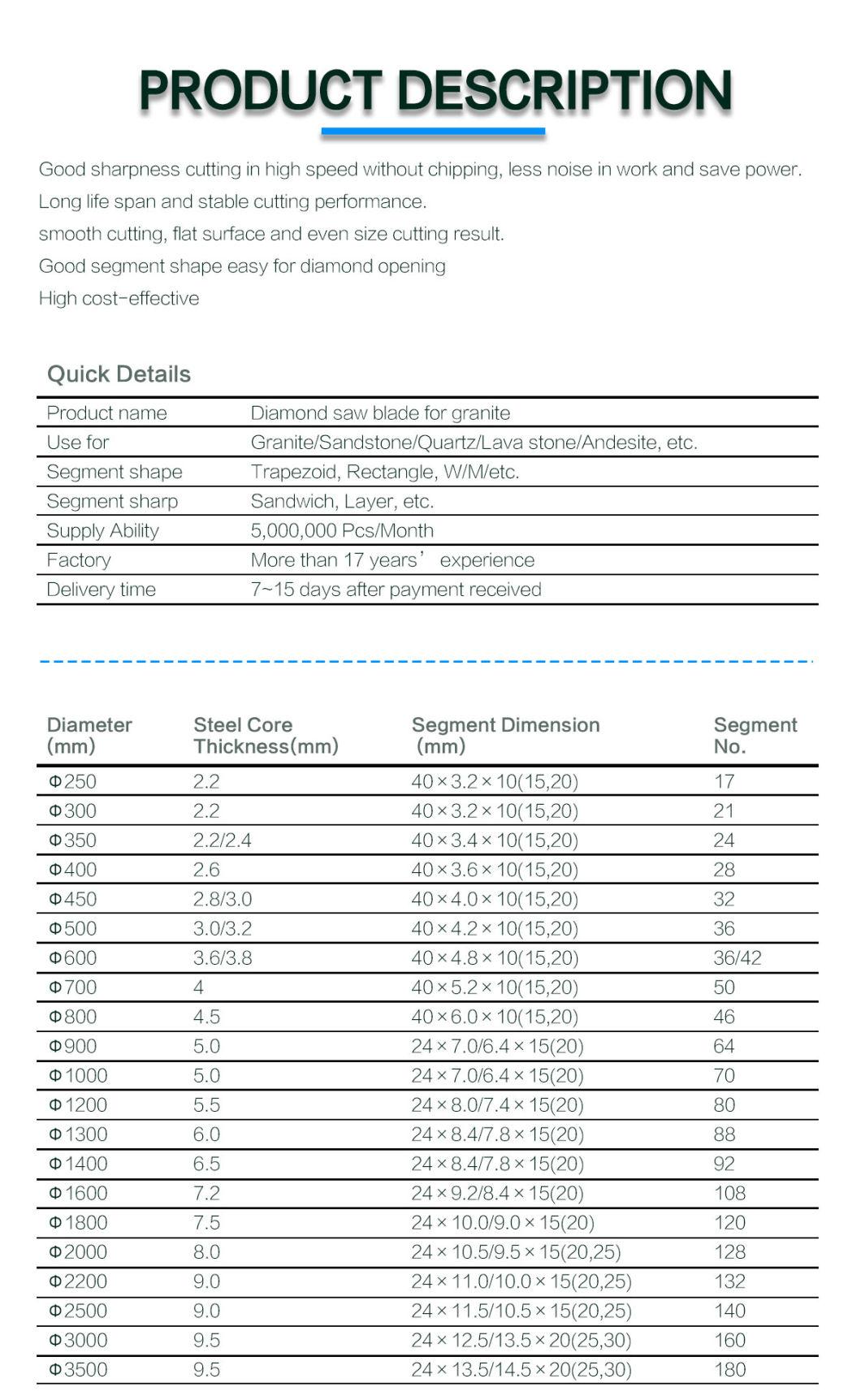

Diameter(mm)	Steel Core(mm)	Segment Dimension(mm)	Segment Number	Segment Shape	Application
900	5	24*7.0/6.2*13(15,20)	64	Z3T or Z3T-M (conical)	Granite block
1000	5	24*7.0/6.2*13(15,20)	70	Z3T or Z3T-M (conical)	Granite block
1200	5	24*7.4/6.6*13(15,20)	80	Z3T or Z3T-M (conical)	Granite block
1400	6	24*8.0/7.2*13(15,20)	92	Z3T or Z3T-M (conical)	Granite block
1400	6.5	24*8.4/7.6*13(15,20)	92	Z3T or Z3T-M (conical)	Granite block
1600	7.2	24*9.2/8.4*13(15,20)	108	Z3T or Z3T-M (conical)	Granite block
1800	7.5	24*10/9.2*13(15,20)	120	Z3T or Z3T-M (conical)	Granite block
2000	8	24*11/10*15(20)	128	Z3T or Z3T-M (conical)	Granite block
2200	9	24*11/10*15(20)	132	Z3T or Z3T-M (conical)	Granite block
2500	9	24*12/11*20(30)	140	Z3T or Z3T-M (conical)	Granite block
2700	9	24*12/11*20(30)	140	Z3T or Z3T-M (conical)	Granite block
3000	9.3	24*13/12*20(30)	160	Z3T or Z3T-M (conical)	Granite block
3500	9.5	24*13.5/12.5*20(30)	180	Z3T or Z3T-M (conical)	Granite block

Linsing block cutting saw blade sizeDiamond saw blade for slab&tile edge cutting
Product features:
1. High effective, environmentally friendly, easy operation, long lifespan, and no edge broken.
2. Hotpress, cold press technology, silent core segment to prove the high-quality cutting result.
3. Diamond/steel power raw material.
4. High formula Key /U/Fishhook slot segment.
5. Multi-hole design by customer's requirements.
6. Silent and non-silent blades are available for choice.

Diameter(Inch)	Diameter(mm)	Teeth No.	Segment Width(mm)	Segment Height(mm)
12″	300	21	3	10/12/15/20/25
14″	350	24	3.2	10/12/15/20/25
16″	400	28	3.4	10/12/15/20/25
18″	450	32	3.8	10/12/15/20/25
20″	500	36	4.2	10/12/15/20/25
24″	600	42	4.6	10/12/15/20/25

Edge cutting saw blade size
