• Motor Type：Hm-80, 2 Cylinders
• Working Pressure：15-20MPa
• Size：720*650*1050mm
• Specificatio：φ11.5mm 40beads,M
• Cutting Speed：3~5m2,H
• Wire Life：2~3m2,M
• Transport Package：Wooden Case
• Specification：besds
• Trademark：YUGONG
• Origin：China
• HS Code：8464909000
• Production Capacity：100 Set,Month

Basic Info.

Motor Type Hm-80, 2 Cylinders Working Pressure 15-20MPa Size 720*650*1050mm Specificatio φ11.5mm 40beads/M Cutting Speed 3~5m2/H Wire Life 2~3m2/M Transport Package Wooden Case Specification besds Trademark YUGONG Origin China HS Code 8464909000 Production Capacity 100 Set/Month

Product Description

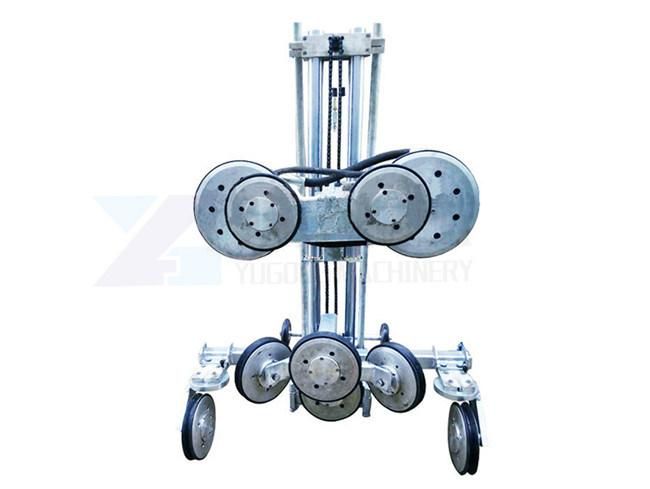

Description of diamond wire saw machine

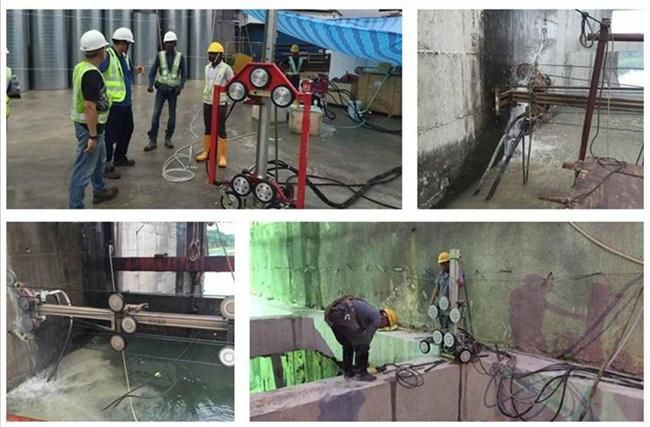

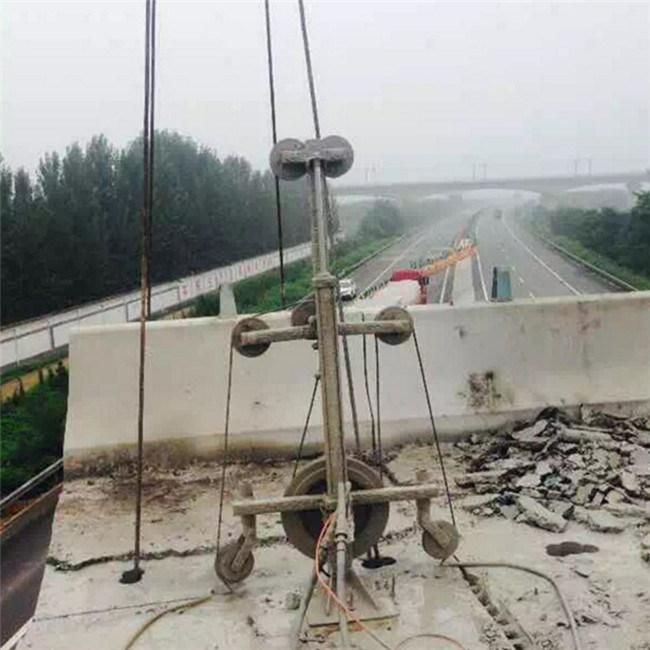

Hydraulic Diamond Wire Saw Machine is used to cut concrete, granite, rock, walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.




Feature of  diamond wire saw machine

1. 1. Hydraulic-driven, Diamond Wire Saw Machine can work in different situations.
   2. It's made of hard materials. The wedges are running stability. Long surviving life.
   3. Powerful cutting ability, it can split the stone or concrete easily with no cutting depth limitation.
   4. High Efficiency, and it's easy and comfortable to operate and maintain.
   Working principle
   1.cutting surface smoothly and tidily.
   2.by the track control, cutting position accurately.
   3.no vibration, low noise, environmental protection, security, pollution-free.
   4.cutting thickness can be adjusted according to the size of the saw blade.
   Scope of application
   1.general reinforced concrete walls, board cutting, demolition or the door hole.
   2.cutting surface required to be a smooth, straight, beautiful concrete cutting.
   3.cutting depth according to the blade size adjustment, the current use
   Φ1600 mm blade which Maximum cutting depth up to 600mm.

Technical parameter of  diamond wire saw machine

Hydraulic Pump	YG-25	Motor Power	25kw
Voltage	220V/380V, 50Hz	Motor Type	HM-80, 2 Cylinders
Rotation	1300r/min	Working Pressure	15-20Mpa
Weight	170kg	Size	720*650*1050mm
Frame & Wheels	Aluminum	Wheels	10
Weight	75kg	Size	90*90*1700mm
Diamond Wire Saw	Diamond Wire	Specification	φ11.5mm  40beads/m
Cutting speed	3~5m2/h	Wire life	2~3m2/m

Our services
1.Any inquiries will be replied within 12 hours.
2.Professional manufacturer, Welcome to visit our factory at any time.
3.High quality, fashion designs, reasonable & competitive price and fast lead time.
4. Protection of your sales area, ideas of design and all your private information.
5.Shipping:We have strong cooperation with DHL, TNT, UPS, FedEx, EMS, China air post.You also can choose your own shipping forwarder.

Company Information
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.
We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery.

packaging &shipping

1. Packaging: 1)Wrapped by proctective film;
                         2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:    By logistics; by automobile; by train; by shipping; by air etc.
