Hot Press Sintered Diamond Blade, Small Diameter Turbo Rim Diamond Blade for Cutting Stones & Granite
Fujian Quanzhou Huazuan Diamond Tools Co., Ltd.- Blade Type：Normal,Silent Blade
- Manufacturing Process：Sintered,Electroplate,Laser Welded
- Application：Granite, Basalt,Marble,Concrete etc.
- Segment Material：Diamond Powder, Cobalt, Metal
- Working Condition：Wet,Dry Cut
- Segment Type & Shape：Normal, Turbo; Sandwich, Groove, etc
Base Info
- Model NO.：HZ-189
- Welding Method：High Frequency Welding,Laser Weld
- Perfromance Comparison：Sharp Diamond Blade, Wearable Diamond Blade
- Type：Power Tool Parts
- Outer Diamond：80mm-350mm
- Inner/Bore Diamond：25.4mm,22.23mm,20mm,16mm
- Segment Height：8,10,12mm
- Thickness：1.7mm,1.8mm,2.0mm,2.2mm
- Transport Package：Carton and Wooden Box
- Specification：4′′-9′′(105mm-230mm)
- Trademark：Huazuan or OEM
- Origin：Quanzhou, Fujian
- HS Code：82023910
- Production Capacity：50000PCS,Month

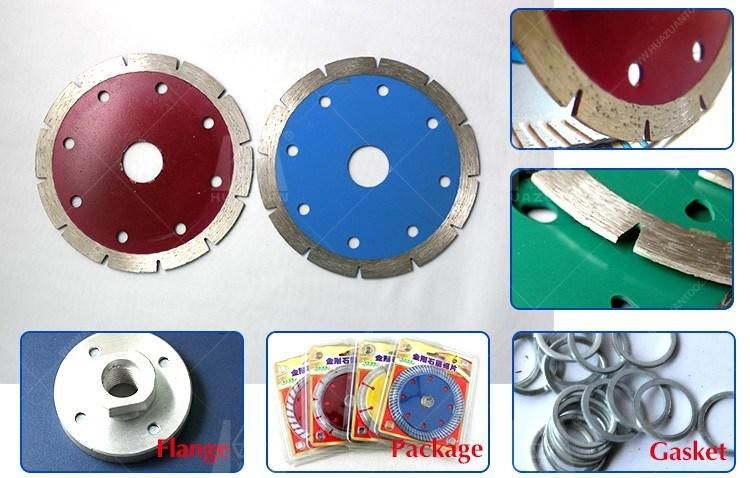

Description
Diameter
Bore
Segment
Segment
mm
inch
Size(mm/inch)
Thickness(mm)
Height(mm)
105
4"
20/0.787"
1.8
8/10/12
110
4.3"
20/0.787"
1.8
8/10/12
115
4.5"
22.23/0.875"
1.8
8/10/12
125
5"
22.23/0.875"
2.0
8/10/12
150
6"
22.23/0.875"
2.2
8/10/12
180
7"
22.23/0.875"
2.4
8/10/12
200
8"
22.23/0.875"
2.4
8/10/12
230
9"
22.23/0.875"
2.6
8/10/12
250
10"
22.23/0.875"
2.8
8/10/12

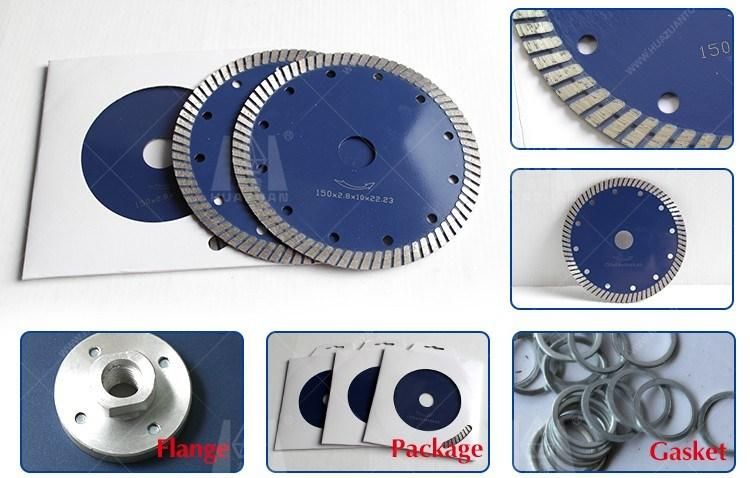

2.Turbo Saw Blade:

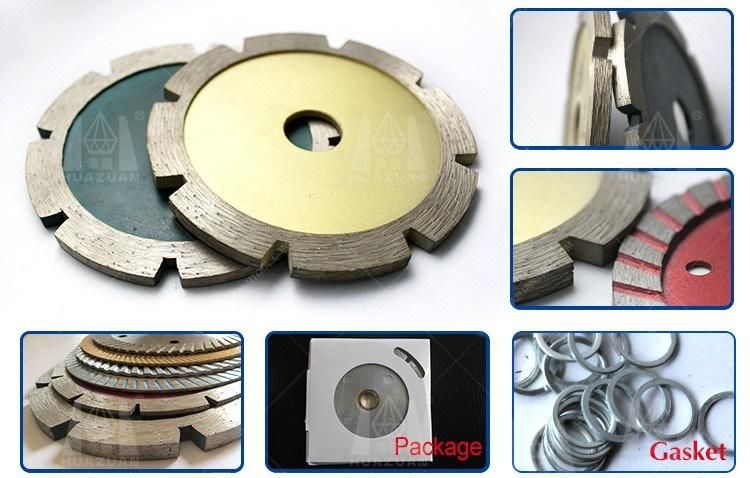

3.Tuck Point Blade:

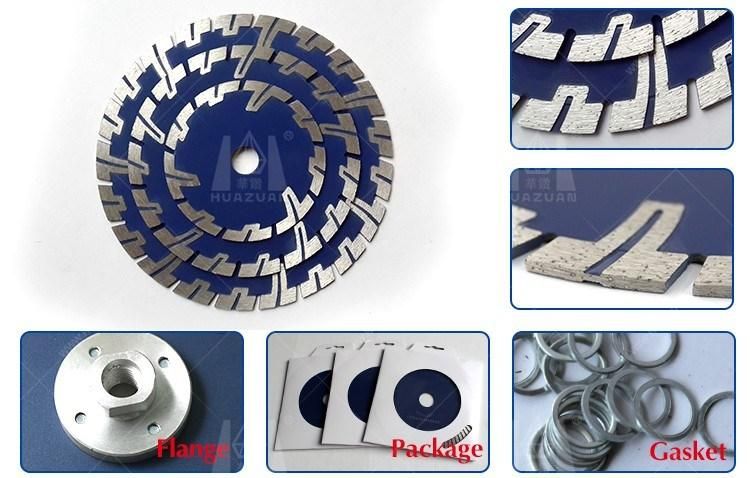

4.Dry Cutting Blade With Protection Teeth
Attention when use:
1. Before saw blade installed, pollutions adhering between saw blade and flange shall be removed,
when installing saw blade, the marked direction shall be kept consistent with the rotating
direction of electric tools, and flange shall be fastened by spanner attached to electric tools.
2. Do not use any saw blade that has been deformed for being pressed of crashed.
3. When operating, operator must wear safety helmet, safety footwear and goggles,
protective glove,additionally, if necessary operator must use earplug, mask and so on.
4. Electric tools shall have protective cover.
