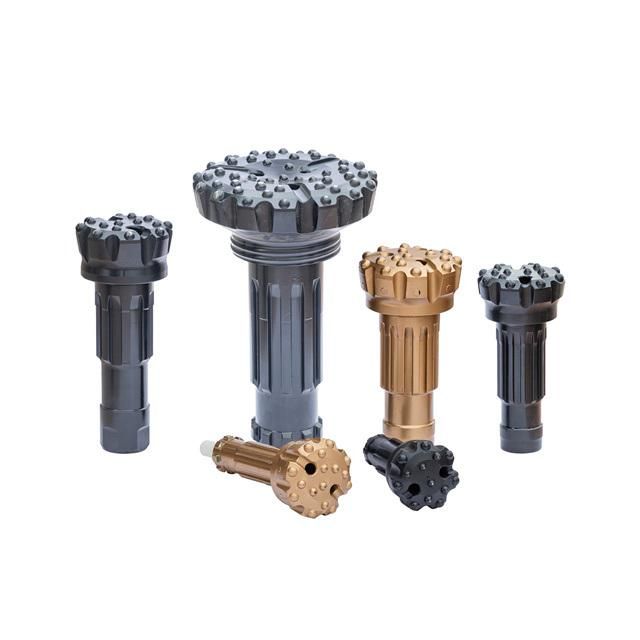

Best Price DTH Down The Hole Hammer Drill Bit

Liuyang Economy and Technology Development Area High Tech Import & Export Co., Ltd.
  • Type:Mini Drill
  • Usage:DTH Drilling
  • Certification:ISO9001
  • Brand:King Kong
  • Warranty:6 Months
  • Part Name:DTH Hammer

Base Info

  • Keywords:Hydraulic Pressusre Pile Driver
  • Material:High Manganese Steel
  • Application Industry:Ore Mining
  • Diameter:3 3,4"~30"
  • Bit Type:Misson,DHD,Ql,SD
  • Color:Yellow,Black, Customized
  • Advantage:High Performance
  • Transport Package:Ply-Wooden Cases for Exporting
  • Specification:76-775mm
  • Origin:China
  • HS Code:8207199000
  • Production Capacity:5000 Pieces,Month

Description

Part NomminchGauge ButtonsFront Buttons1365 3/88 x 16mm6x16+3x1435213419.0PR54-1361405 1/28 x 16mm6x16+3x1435213819.3PR54-1401435 5/88 x 16mm6x16+3x1435214119.5PR54-1431465 3/48 x 16mm6x16+3x1435214419.6PR54-146
RC bits sizes available:

1) 3" RC Bits: diameter (86mm-102mm), shank (RE531),
2) 4'' RC Bits: diameter (114mm-127mm), shank (RE004, RE004R),
3) 4.5" RC Bits: diameter (121mm - 133mm), shank (RE542, RE543),
4) 5'' RC Bits: Diameter (113mm-146mm), shank (RE545, PR40),
5) 5.5'' RC Bits: Diameter (133-146mm), shank (RE547, PR52, PR54, RC45, AD670)
Other sizes can be upon customer's requirements. Customized acceptable.


Reverse Circulation Hammer specifications:
1) 3" RC hammers: RE531,
2) 4'' RC hammers: RE004, RE004R,
3) 4.5" RC hammer: RE542, RE543,
4) 5'' RC hammer: RE545, PR40,
5) 5.5" RC hammer: RE547, PR52, PR54, RC45, AD670
6) other sizes could be made by clients' request.


HammerBit ShankHole Range (mm)External Diameter (mm)Length (without bit) (mm)WeightConnection ThreadWorking Pressure
RE531RE53184-100811069293" Remet1.0-3.0Mpa
RE004RE004111-1271071252523.5"-4" Remet / 4" Metzke1.0-3.0Mpa
RE542RE542113-130109.51191573.5"-4" Remet / 4" Metzke1.0-3.0Mpa
RE543RE543120-1351161191623.5"-4" Remet / 4" Metzke1.0-3.0Mpa
RE545RE545122-135117.51261654"-4.5"Remet / 4"-4.5"Metzke1.5-3.5Mpa
RE547RE547130-146124.51270714.5"Remet / 4.5"Metzke1.5-3.5Mpa
PR40PR40124-142120.5136280.53.5"-4.5"Remet / 3.5"-4.5"Metzke1.5-3.5Mpa
PR52PR52126-142121122768.54"-4.5"Remet / 4"-4.5"Metzke1.5-3.5Mpa
PR52RPR52/PR52R130-1461241225654"-4.5"Remet / 4"-4.5"Metzke1.5-3.5Mpa
PR54PR54135-150130129484.54.5"Remet / 4.5"Metzke1.5-3.5Mpa
RC45RC45130-146124.51298714.5"Remet / 4.5"Metzke1.5-3.5Mpa
AD670AD670135-1501321339904.5" Remet / 4.5" Metzke1.5-3.5Mpa

 Quality warranty:

Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.


Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.


Production time:

Generally need 20-30 days


Transportation:
By air, By Express or By sea according to your requests.



Product Overview
Best Price DTH Down The Hole Hammer Drill BitBest Price DTH Down The Hole Hammer Drill Bit

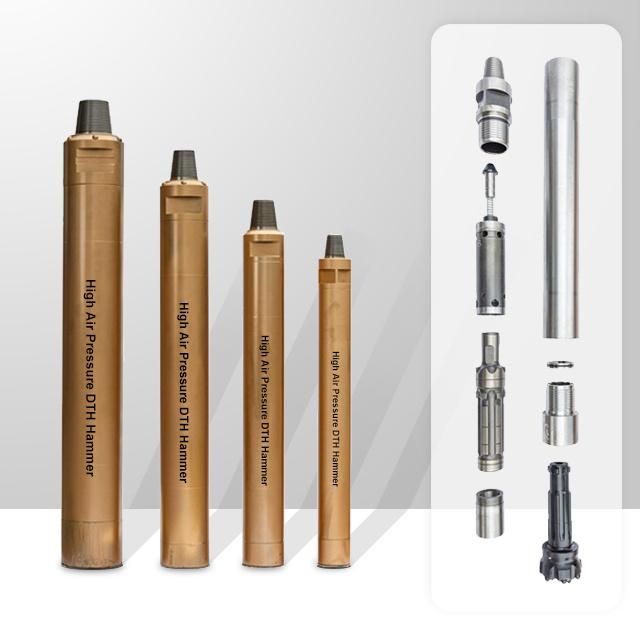

The characteristics of High Air pressure DTH Hammer with foot valve

Valve air distribution, more reliable.
Simple design of the poston, long life.
More Efficient energy transfer, faster drilling speed, lower air consumption and low oil consumption.
Fewer internal parts, simple structure, longer life, less failure and easier to maintain because all the parts are heat treated.
Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multi-step thread.



The characteristics of High Air pressure DTH Hammer without  foot valve

Out of the trouble of foot valve fracture and expansion and contraction.
Lower energy consumption and higer impact frequency. The drilling speed is 15% to 30% higher than the one with foot valve.
Simple structure, reliable parts, long life, easy and cheap maintenance.
Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.

Best Price DTH Down The Hole Hammer Drill BitBest Price DTH Down The Hole Hammer Drill Bit

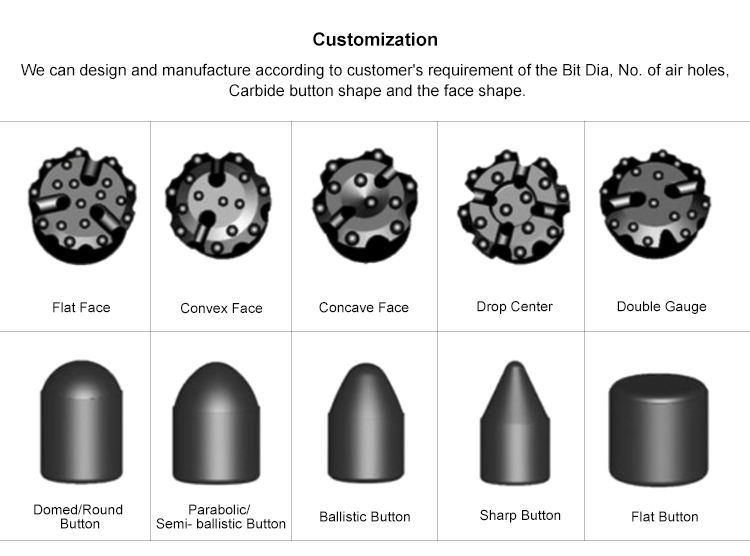

Carbide button shape selection:
1. Domed/Round Button Domed/Round Buttons are usually used as gauge buttons of DTH Bits, suitable for every abrasive and very hard formations.
2. Parabolic/Semi-Ballistic Buttons Parabolic Buttons are usually used as gauge buttons and front buttons of DTH Bits, suitable for medium abrasive and hard formations.
3. Ballistic Button Ballistic Buttons are usually used as front buttons of DTH Bits, suitable for medium abrasive and mesium hard formations. They can also be used as gauge buttons if the rock is soft.
4. Sharp Button Sharp Buttons are usually used as front buttons of DTH Bits for soft formations where fast penetration rates are possible.
5. Flat Button Flat buttons are usually used as protection buttons to reduce wear on rubbing surfaces of DTH bits.

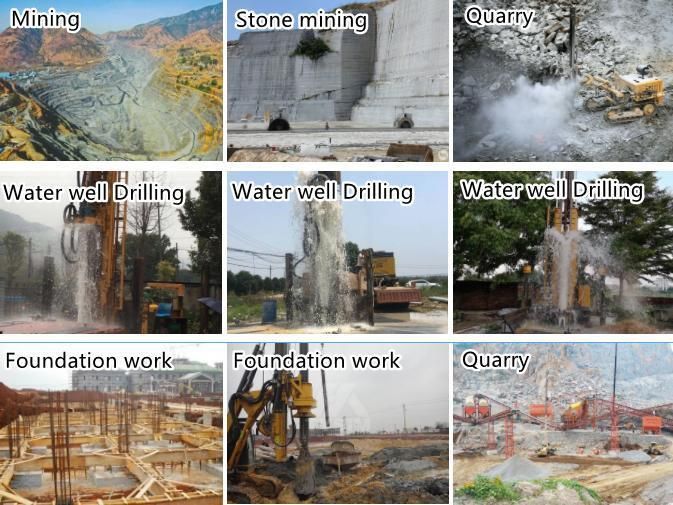

APPLICATIONBest Price DTH Down The Hole Hammer Drill Bit

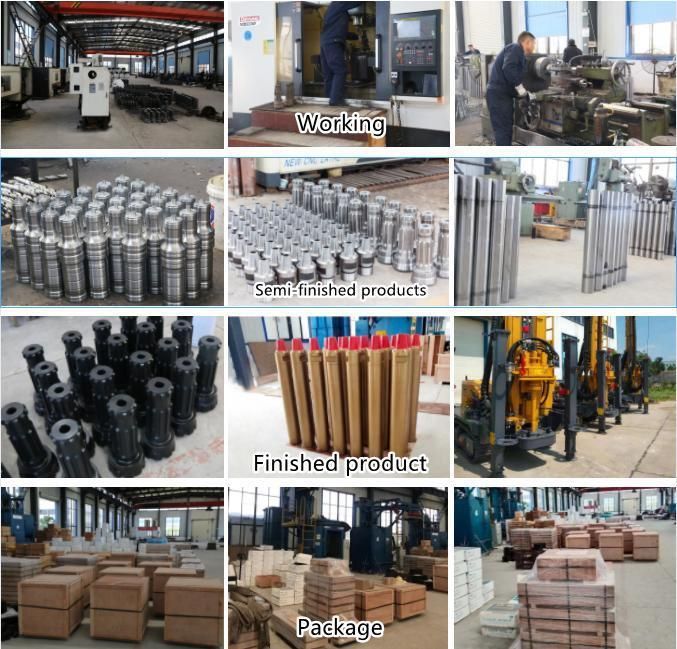

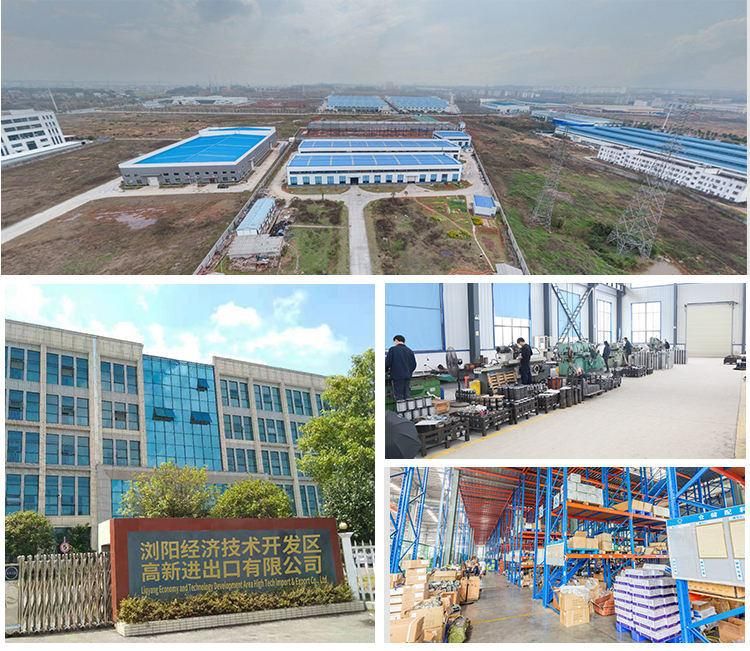

Factory workshop
Best Price DTH Down The Hole Hammer Drill Bit
     We specialize in research and manufacture of rock drilling machinery and pneumatic tools in China. Our factory has rich scientific research and production experience, using the raw materials, advanced production technology and rigorous testing methods, to produce products with superior performance and stable and reliable quality. Our King Kong rock drilling and pneumatic series products enjoy great popularity due to their superior performance, stable and reliable quality. Our products have been exported to more than 20 countries and regions, such as Russia,Brazil, Australia ,Africa, South America, Africa, East Asia(Japan/ South Korea) etc.
      It covers an area of 26, 600 square meters. Its production plant covers 22, 000 square meters. It has nearly 100 employees, 26 engineers and technicians, and 8 senior engineers. There are nearly 400 sets of professional equipment for research, manufacture and testing of rock drilling machinery and pneumatic tools. Our factory develops and manufactures the most advanced high / low air pressure DTH and bits, reverse circulation hammer and bit, top hammer drill bit, casing drilling systems, drill pipes and rods etc. It is widely used in earthwork engineering, mining, water well drilling and construction engineering, geothermal drilling, municipal engineering and other fields.

   Our products range covers:
1.Down the hole(DTH) hammer and bit,
2.Drill pipe(drill rod) 3.Casing system 4.Tricone bit,PDC bit,Steel tooth bit 5.Top hammer rock drilling tools(thread button bit, drill rod, shank adapter) 6.Small hole drilling tools(tapered button bit, tapered drill rod, plug hole integral drill rod, integral drill rod),and other rock drilling tools that are widely used in mining, tunneling, quarrying, water well, anchoring,transportation construction, pile foundation, and civil engineering projects etc. Best Price DTH Down The Hole Hammer Drill Bit
Best Price DTH Down The Hole Hammer Drill Bit
Best Price DTH Down The Hole Hammer Drill Bit

Best Price DTH Down The Hole Hammer Drill Bit

Best Price DTH Down The Hole Hammer Drill Bit
