• Model NO.：CCWS
• Transport Package：Carton, Pallet
• Specification：10.5mm, 11.0mm, 11.5mm
• Trademark：COREDIAM
• Origin：China
• HS Code：82029910
• Production Capacity：5000 Meters,Month

Basic Info.

Model NO. CCWS Transport Package Carton, Pallet Specification 10.5mm, 11.0mm, 11.5mm Trademark COREDIAM Origin China HS Code 82029910 Production Capacity 5000 Meters/Month

Product Description

1. Diamond wire introduction

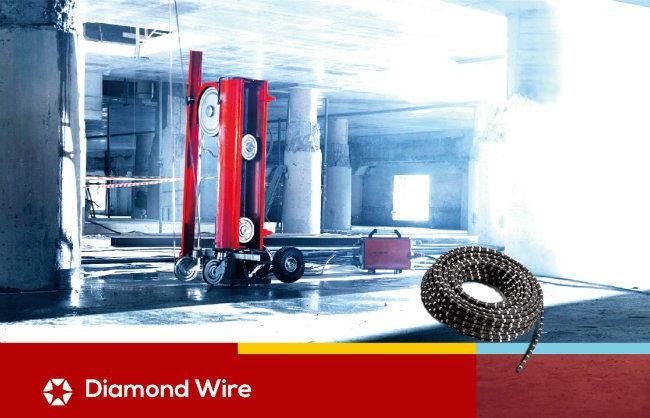

The concrete wire saw is made of by sintered diamond beads, connecting by rubber and springs. Now it's widely used for cutting kinds of concrete mega projects, such as building, subway, bridge, big post, cement pipe, and also for the most demanding applications for complex projects, like sunken ship, steel pipe steel cable, etc. Diamond wire is suitable for hydraulic wire saw and electric wire saw, common sizes for concrete & reinforced concrete are 10.5 mm, 11.0 mm, 11.5 mm.


2. Specification


Item No.	Bead Diameter	Beads No./Meter	Fixing
CCWS10540	10.5mm	40	Rubber+Spring
CCWS11040	11.0mm	40	Rubber+Spring
CCWS11540	11.5mm	40	Rubber+Spring

3. Features&cutting performance

Achieve a cut in large, irregular buildings;
Cutting in any direction and partial cutting;
High efficiency and safety without environmental pollution;
The cutting process can be controlled by long distance.
This item of diamond wire has very good cutting performance, lifespan can reach 2.5 sqm per meter

Cutting Material	Line Speed m/s	Cutting Speed sqm/h	Wire Life sqm/m
normal concrete	22-28	2.0-5.0	2.0-7.0
heavy reinforced concrete	18-25	0.8-2.0	1.5-2.5
steels	16-22	0.5-1.0	0.5-1.2

4. Delivery time

1 week for samples
2-3 weeks for batch orders.

5.Package and loading


6.Corediam introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
