Diamond Tools

Home > Product > Diamond Drilling Tools

Diamond Dry Core Drill with Turbo Segment for Concrete, Stone and Masonry/Diamond Tool/Power Tools

Shijiazhuang Corediam Tools Technology Co., Ltd.
  • Type：Core Drill
  • Usage：Masonry Drilling
  • Manufacturing Technology：Laser Welding
  • Segment Height：10mm
  • Application：Dry Drilling Concrete, Reinforced Concrete
  • Installing Equipment：Hand-Held Drillers

Base Info

  • Model NO.：CHCD
  • Arbor：M16
  • Transport Package：Carone, Pallet
  • Specification：32mm-162mm
  • Trademark：COREDIAM
  • Origin：China
  • HS Code：82071910
  • Production Capacity：2000 Pieces,Month

Description

Basic Info.

Model NO. CHCD Arbor M16 Transport Package Carone, Pallet Specification 32mm-162mm Trademark COREDIAM Origin China HS Code 82071910 Production Capacity 2000 Pieces/Month

Product Description

1. Laser welded diamond Dry core drill introduction

The dry core drill is laser welded by advanced laser welding production line, which ensures the core bits have high welding strength.
Common sizes of dry core drill are ranging 32mm to 200mm in size.
Dry core drill is used for professionally dry drilling granite, marble, masonry with superior efficiency.

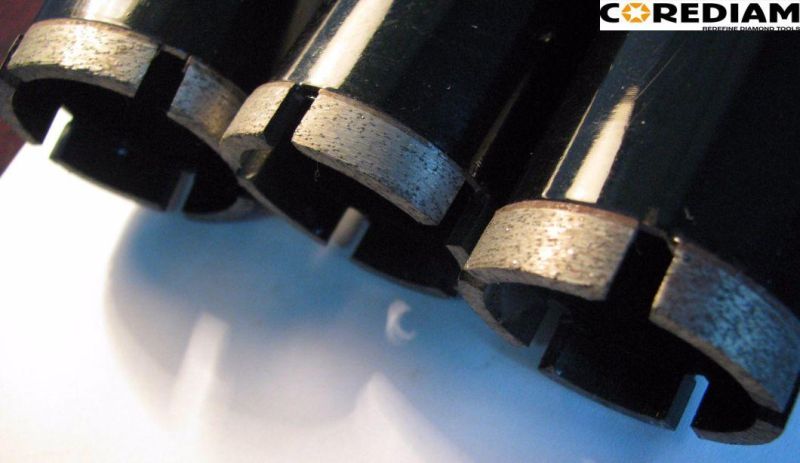

Special turbo segments design make the segments have very excellent sharpness, achieving fast drilling.

2.Specification
Item No.DiameterSegment HeightArborTotal Length
CHCD16801016mm10 M1480mm
CHCD20801020mm10 M1480mm
CHCD25801025mm10 M1480mm
CHCD27801027mm10 M1480mm
CHCD32801032mm10 M1480mm
CHCD35801035mm10 M1480mm
CHCD38801038mm10 M1480mm
CHCD50801050mm10 M1480mm
CHCD60801060mm10 M1480mm
3.Features

Manufacturer technology: Laser welding
Suitable: dry drilling concrete, reinforced concrete, masonry with superior efficiency.
Advantage: good segment sharpness, achieving fast drilling, without segment burnt.
Diamond Dry Core Drill with Turbo Segment for Concrete, Stone and Masonry/Diamond Tool/Power Tools

4.Delivery time

1 weeks for samples after order confirmed.
2-3 weeks for batch order after payment confirmed.


5.Corediam service
We accept customized lengths and segments for wet core drills.
Also, we help to design the total solution of core drilling projects.
Diamond Dry Core Drill with Turbo Segment for Concrete, Stone and Masonry/Diamond Tool/Power Tools

6.Corediam introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
