• Segments Structure：Sandwich or Multi-Layer
• Features：Fast Cutting Speed and Long Lifespan.
• Material：Diamond Segment and Steel Blank
• Segments Bond：Soft, Medium, Hard
• Transport Package：Carton and Wooden Box Packaging.
• Specification：Diameter: 250-3500mm
• Trademark：LINSING
• Origin：China
• Production Capacity：1100piece,Day

Basic Info.

Segments Structure Sandwich or Multi-Layer Features Fast Cutting Speed and Long Lifespan. Material Diamond Segment and Steel Blank Segments Bond Soft, Medium, Hard Transport Package Carton and Wooden Box Packaging. Specification Diameter: 250-3500mm Trademark LINSING Origin China Production Capacity 1100piece/Day

Product Description

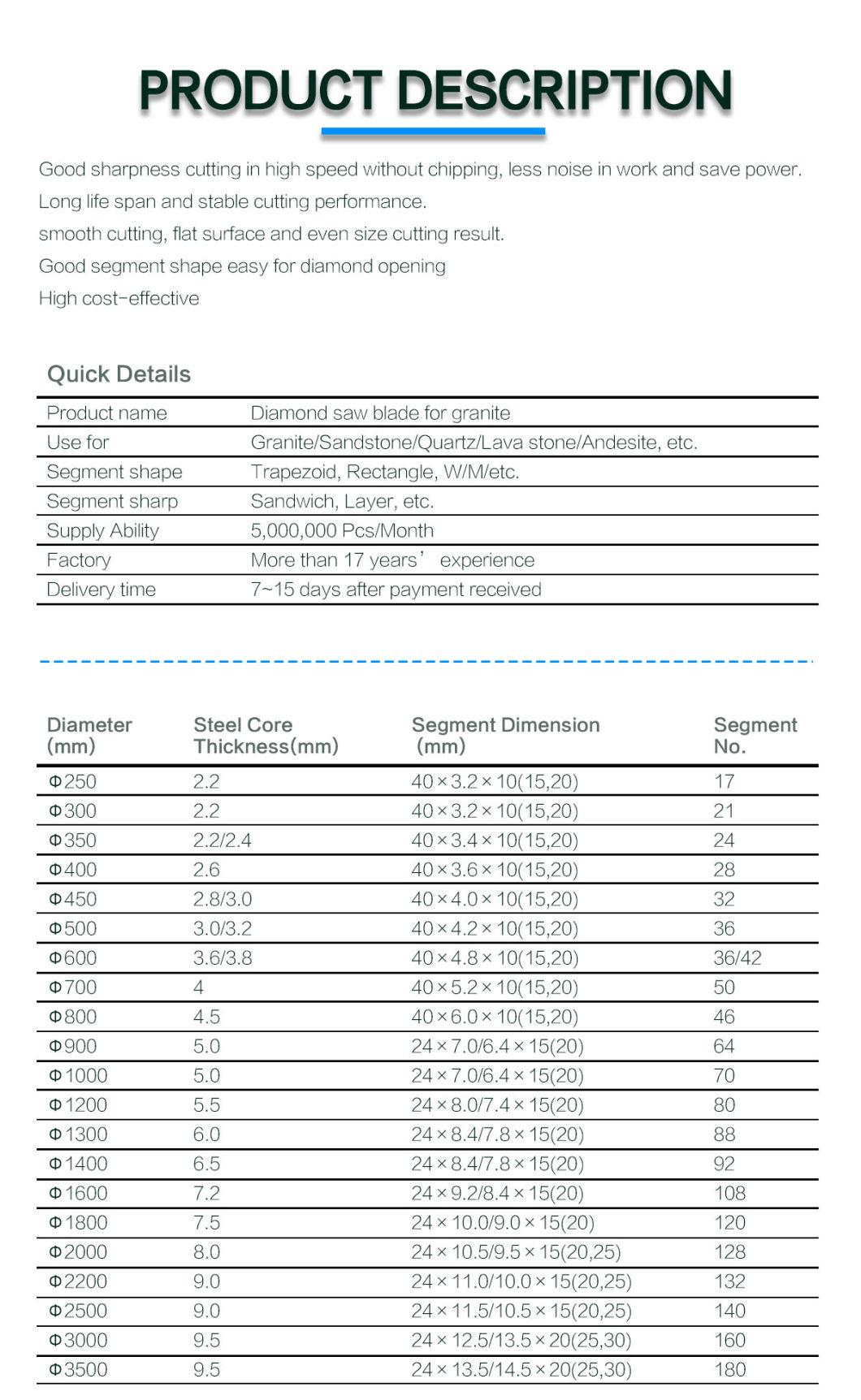

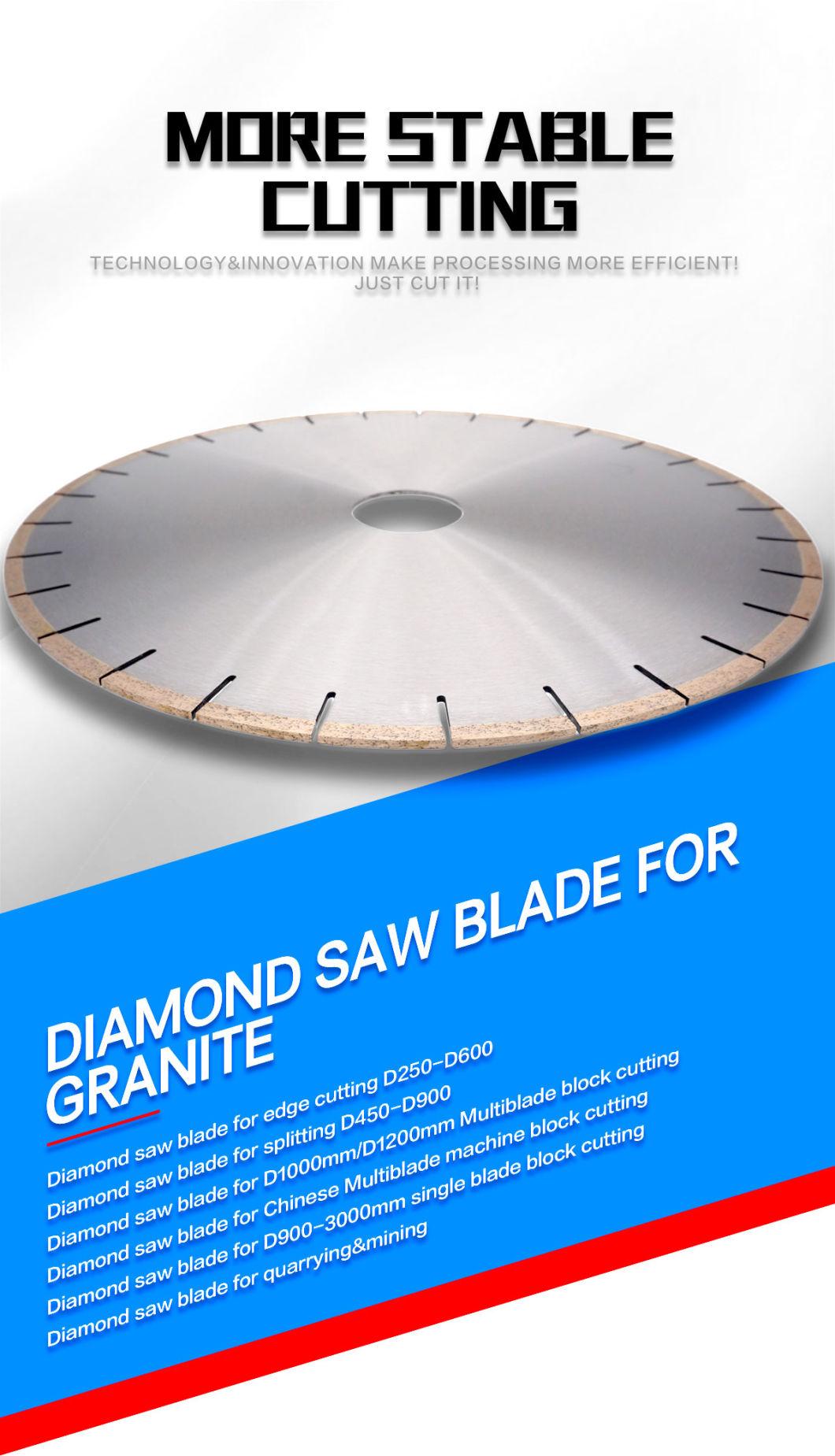

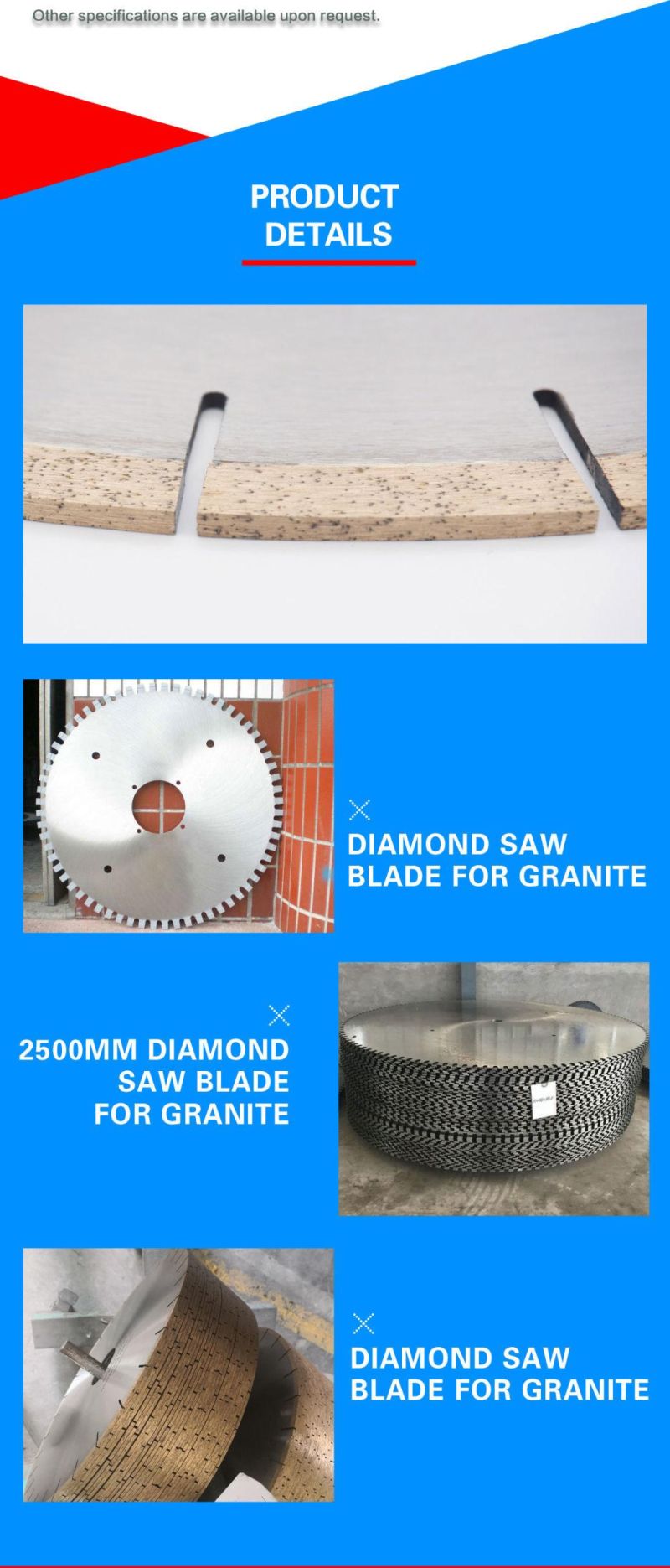

Diamond saw blade for granite block cutting

Product features:

1 The blade has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long lifespan.
2 Good cutting result:smooth cutting,flat surface and even size.
3 Stable cutting,narrow cutting gap,stone waste reduction.
4 M-Shape segment is easy for diamond opening.

Diameter(mm)	Steel Core(mm)	Segment Dimension(mm)	Segment Number	Segment Shape	Application
900	5	24*7.0/6.2*13(15,20)	64	Z3T or Z3T-M (conical)	Granite block
1000	5	24*7.0/6.2*13(15,20)	70	Z3T or Z3T-M (conical)	Granite block
1200	5	24*7.4/6.6*13(15,20)	80	Z3T or Z3T-M (conical)	Granite block
1400	6	24*8.0/7.2*13(15,20)	92	Z3T or Z3T-M (conical)	Granite block
1400	6.5	24*8.4/7.6*13(15,20)	92	Z3T or Z3T-M (conical)	Granite block
1600	7.2	24*9.2/8.4*13(15,20)	108	Z3T or Z3T-M (conical)	Granite block
1800	7.5	24*10/9.2*13(15,20)	120	Z3T or Z3T-M (conical)	Granite block
2000	8	24*11/10*15(20)	128	Z3T or Z3T-M (conical)	Granite block
2200	9	24*11/10*15(20)	132	Z3T or Z3T-M (conical)	Granite block
2500	9	24*12/11*20(30)	140	Z3T or Z3T-M (conical)	Granite block
2700	9	24*12/11*20(30)	140	Z3T or Z3T-M (conical)	Granite block
3000	9.3	24*13/12*20(30)	160	Z3T or Z3T-M (conical)	Granite block
3500	9.5	24*13.5/12.5*20(30)	180	Z3T or Z3T-M (conical)	Granite block

Linxing block cutting saw blade size

Diamond saw blade for splitting

Product features

1 Good sharpness,high cutting efficiency and long life.
2 Refine splitting edge quality and good cutting performance.
3 Suitable for all classes marble splitting.

Diameter(mm)	Steel core thickness(mm)	Segment size(mm)	No.	Segment shape	Application
400	2.6	40×3.8/3.4×15(20)	28	M,T,R shape	Granite splitting
450	3.0	40×4.2/3.8×15(20)	32	M,T,R shape	Granite splitting
500	3.0	40×4.2/3.8×15(20)	36	M,T,R shape	Granite splitting
550	3.6	40×5.0/4.4×15(20)	40	M,T,R shape	Granite splitting
600	3.6	40×5.0/4.4×15(20)	42	M,T,R shape	Granite splitting
650	4.0	40×5.4/4.8×15(20)	46	M,T,R shape	Granite splitting
700	4.0	40×5.4/4.8×15(20)	50	M,T,R shape	Granite splitting
750	4.0	40×5.4/4.8×15(20)	54	M,T,R shape	Granite splitting
800	4.5	40×6.0/5.4×15(20)	57	M,T,R shape	Granite splitting
850	4.5	40×6.0/5.4×15(20)	58	M,T,R shape	Granite splitting

Linxing stone splitting blade size

Diamond saw blade for slab&tile edge cutting

Product features:

1.High effective, environmental friendly, easy operation, long lifespan and no edge broken.
2.Hot press,cold press technology, silent core segment to prove high quality cutting result.
3.Diamond/steel power raw material.
4.High formula Key /U/Fishhook slot segment.
5.Multi hole design by customer's requirements.
6.Silent and non-silent blades are available for choice.

Diameter(Inch)	Diameter(mm)	Teeth No.	Segment Width(mm)	Segment Height(mm)
12″	300	21	3	10/12/15/20/25
14″	350	24	3.2	10/12/15/20/25
16″	400	28	3.4	10/12/15/20/25
18″	450	32	3.8	10/12/15/20/25
20″	500	36	4.2	10/12/15/20/25
24″	600	42	4.6	10/12/15/20/25

Edge cutting saw blade size


Diamond saw blade for marble block cutting

Product features

1.Fast cutting , no vibrate, no chipping.
2.Long lifetime for different stone hardness.
3.Good cutting result with smooth cutting, flat surface and even size.
4.Narrow cutting gap that stone waste reduction.
5.Easy for diamond opening.
6.Other specifications are available upan request.

Diameter(mm)	Steel Core Thickness(mm)	Segment Dimension (mm)	Segment No.
Φ900	5	24×7.5×8(10,12)	64
Φ1000	5	24×7.5×8(10,12)	70
Φ1200	5.5	24×8.5×8(10,12)	80
Φ1300	6	24×8.5×8(10,12)	88
Φ1400	6.5	24×9.0×8(10,12)	92
Φ1600	7.2	24×9.5×8(10,12)	108
Φ1800	7.5	24×10.0×8(10,12)	120
Φ2000	8	24×10.5×8(10,12)	128
Φ2200	9	24×11.0×8(10,12)	132
Φ2500	9	24×11.0×8(10,12)	140
Φ3000	9.5	24×12.0×8(10,12)	160

Marble block cutting saw blade size

Diamond saw blade for marble splitting

Product features

1.Good sharpness,high cutting efficiency and long life.
2.Refine splitting edge quality and good cutting performance.
3.Suitable for all classes marble splitting.
4.Easy for diamond opening.
5.Other specifications are available upan request.

Diameter(mm)	Steel core(mm)	Head size(mm)	No.
400	2.6	40×3.8×10	28
450	3	40×4.2×10	32
500	3	40×4.2×10	36
550	3.6	40×5.0×10	40
600	3.6	40×5.0×10	42
650	4	40×5.5×10	46
700	4	40×5.5×10	50
750	4	40×5.5×10	54
800	4.5	40×6.0×10	57
850	4.5	40×6.0×10	58

Marble splitting saw blade size

Diamond saw blade for marble edge cutting

Product features

1.Good sharpness,high cutting efficiency and long life.
2.Good continuity,effectively reduce the distance between teeth.
3.Better cutting sharpness and trimming efficiency.
4.Further strengthen the effect of trimming,reduce the loss of stone.
5.Widely used for cutting marbles and soft stones.
6.Other specifications are available upan request.

Diameter(mm)	Steel core(mm)	Head size(mm)	No.
300	2.2	43/40×3.2×10	21
350	2.2	43/40×3.2×10	24
400	2.6	43/40×3.6×10	29
450	3	42/40×4.0×10	32

Marble edge cutting blade
