4 Inch DHD 340 Ql 40 105 120mm DTH Drill Bit for Mining
Liuyang Economy and Technology Development Area High Tech Import & Export Co., Ltd.- Type：Mini Drill
- Usage：DTH Drilling
- Certification：ISO9001
- Brand：King Kong
- Warranty：6 Months
- Part Name：DTH Hammer
Base Info
- Keywords：Hydraulic Pressusre Pile Driver
- Material：High Manganese Steel
- Application Industry：Ore Mining
- Diameter：3 3,4"~30"
- Bit Type：Misson,DHD,Ql,SD
- Color：Yellow,Black, Customized
- Advantage：High Performance
- Transport Package：Ply-Wooden Cases for Exporting
- Specification：76-775mm
- Origin：China
- HS Code：8207509000
- Production Capacity：5000 Pieces,Month
Description
RC bits sizes available:
1) 3" RC Bits: diameter (86mm-102mm), shank (RE531),
2) 4'' RC Bits: diameter (114mm-127mm), shank (RE004, RE004R),
3) 4.5" RC Bits: diameter (121mm - 133mm), shank (RE542, RE543),
4) 5'' RC Bits: Diameter (113mm-146mm), shank (RE545, PR40),
5) 5.5'' RC Bits: Diameter (133-146mm), shank (RE547, PR52, PR54, RC45, AD670)
Other sizes can be upon customer's requirements. Customized acceptable.
Reverse Circulation Hammer specifications:
1) 3" RC hammers: RE531,
2) 4'' RC hammers: RE004, RE004R,
3) 4.5" RC hammer: RE542, RE543,
4) 5'' RC hammer: RE545, PR40,
5) 5.5" RC hammer: RE547, PR52, PR54, RC45, AD670
6) other sizes could be made by clients' request.
| Hammer | Bit Shank | Hole Range (mm) | External Diameter (mm) | Length (without bit) (mm) | Weight | Connection Thread | Working Pressure |
| RE531 | RE531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.0-3.0Mpa |
| RE004 | RE004 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet / 4" Metzke | 1.0-3.0Mpa |
| RE542 | RE542 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet / 4" Metzke | 1.0-3.0Mpa |
| RE543 | RE543 | 120-135 | 116 | 1191 | 62 | 3.5"-4" Remet / 4" Metzke | 1.0-3.0Mpa |
| RE545 | RE545 | 122-135 | 117.5 | 1261 | 65 | 4"-4.5"Remet / 4"-4.5"Metzke | 1.5-3.5Mpa |
| RE547 | RE547 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet / 4.5"Metzke | 1.5-3.5Mpa |
| PR40 | PR40 | 124-142 | 120.5 | 1362 | 80.5 | 3.5"-4.5"Remet / 3.5"-4.5"Metzke | 1.5-3.5Mpa |
| PR52 | PR52 | 126-142 | 121 | 1227 | 68.5 | 4"-4.5"Remet / 4"-4.5"Metzke | 1.5-3.5Mpa |
| PR52R | PR52/PR52R | 130-146 | 124 | 1225 | 65 | 4"-4.5"Remet / 4"-4.5"Metzke | 1.5-3.5Mpa |
| PR54 | PR54 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet / 4.5"Metzke | 1.5-3.5Mpa |
| RC45 | RC45 | 130-146 | 124.5 | 1298 | 71 | 4.5"Remet / 4.5"Metzke | 1.5-3.5Mpa |
| AD670 | AD670 | 135-150 | 132 | 1339 | 90 | 4.5" Remet / 4.5" Metzke | 1.5-3.5Mpa |
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally need 20-30 days
Transportation:
By air, By Express or By sea according to your requests.
Product Overview

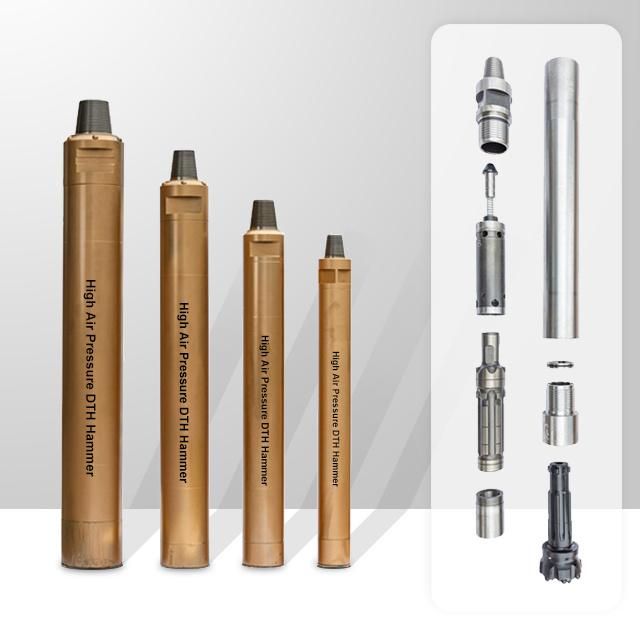

The characteristics of High Air pressure DTH Hammer with foot valve
Valve air distribution, more reliable.
Simple design of the poston, long life.
More Efficient energy transfer, faster drilling speed, lower air consumption and low oil consumption.
Fewer internal parts, simple structure, longer life, less failure and easier to maintain because all the parts are heat treated.
Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multi-step thread.
The characteristics of High Air pressure DTH Hammer without foot valve
Out of the trouble of foot valve fracture and expansion and contraction.
Lower energy consumption and higer impact frequency. The drilling speed is 15% to 30% higher than the one with foot valve.
Simple structure, reliable parts, long life, easy and cheap maintenance.
Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.

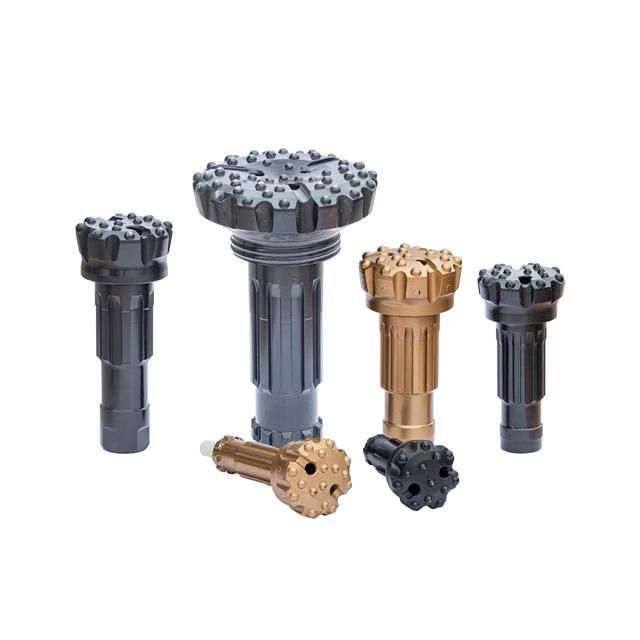

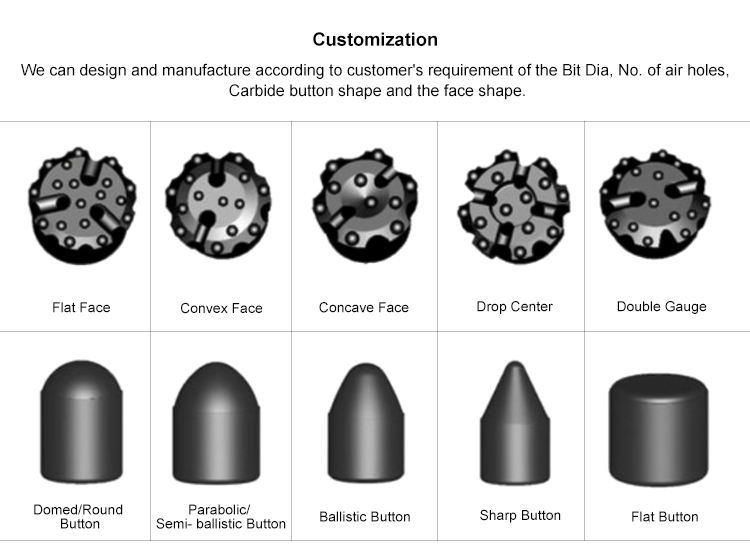

Carbide button shape selection:
1. Domed/Round Button Domed/Round Buttons are usually used as gauge buttons of DTH Bits, suitable for every abrasive and very hard formations.
2. Parabolic/Semi-Ballistic Buttons Parabolic Buttons are usually used as gauge buttons and front buttons of DTH Bits, suitable for medium abrasive and hard formations.
3. Ballistic Button Ballistic Buttons are usually used as front buttons of DTH Bits, suitable for medium abrasive and mesium hard formations. They can also be used as gauge buttons if the rock is soft.
4. Sharp Button Sharp Buttons are usually used as front buttons of DTH Bits for soft formations where fast penetration rates are possible.
5. Flat Button Flat buttons are usually used as protection buttons to reduce wear on rubbing surfaces of DTH bits.

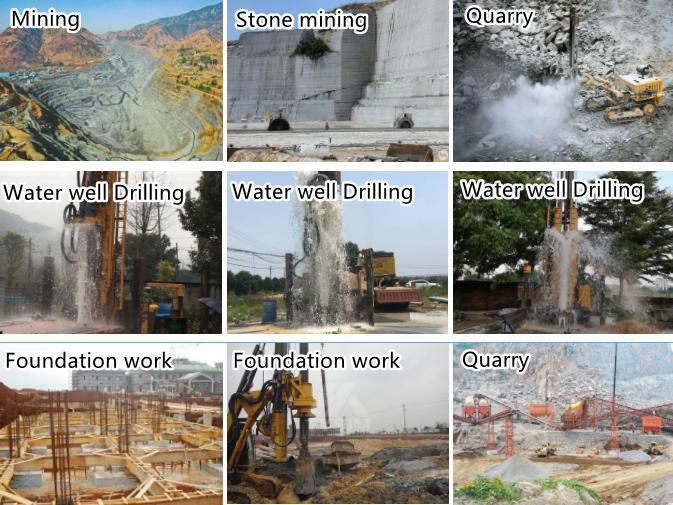

APPLICATION

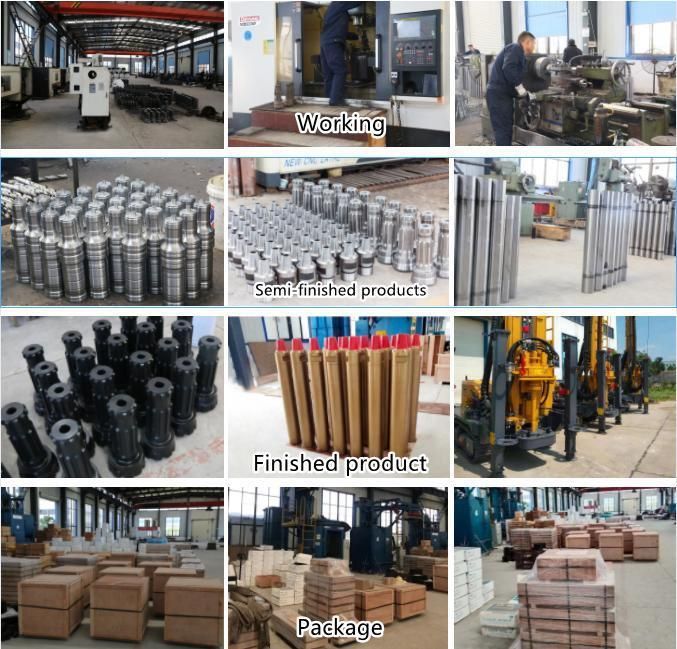

Factory workshop

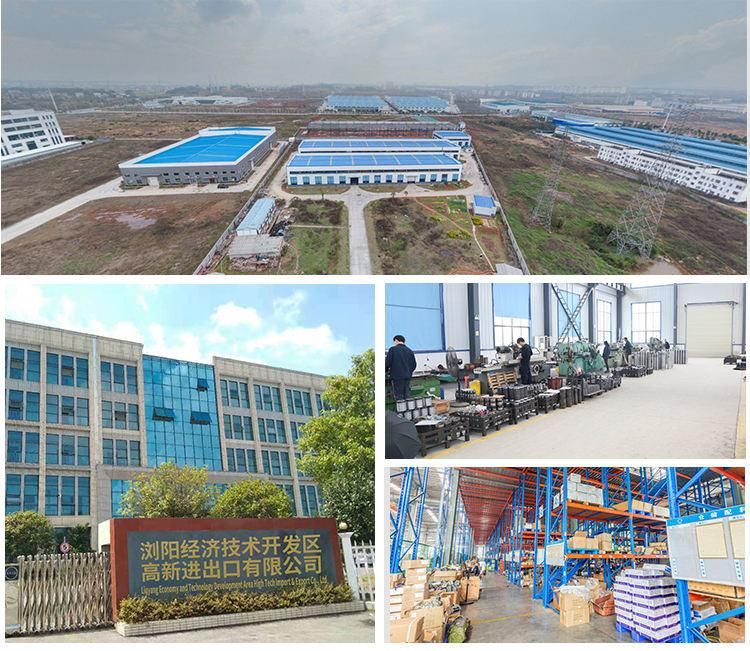

We specialize in research and manufacture of rock drilling machinery and pneumatic tools in China. Our factory has rich scientific research and production experience, using the raw materials, advanced production technology and rigorous testing methods, to produce products with superior performance and stable and reliable quality. Our King Kong rock drilling and pneumatic series products enjoy great popularity due to their superior performance, stable and reliable quality. Our products have been exported to more than 20 countries and regions, such as Russia,Brazil, Australia ,Africa, South America, Africa, East Asia(Japan/ South Korea) etc.It covers an area of 26, 600 square meters. Its production plant covers 22, 000 square meters. It has nearly 100 employees, 26 engineers and technicians, and 8 senior engineers. There are nearly 400 sets of professional equipment for research, manufacture and testing of rock drilling machinery and pneumatic tools. Our factory develops and manufactures the most advanced high / low air pressure DTH and bits, reverse circulation hammer and bit, top hammer drill bit, casing drilling systems, drill pipes and rods etc. It is widely used in earthwork engineering, mining, water well drilling and construction engineering, geothermal drilling, municipal engineering and other fields.
Our products range covers:
1.Down the hole(DTH) hammer and bit, 2.Drill pipe(drill rod) 3.Casing system 4.Tricone bit,PDC bit,Steel tooth bit 5.Top hammer rock drilling tools(thread button bit, drill rod, shank adapter) 6.Small hole drilling tools(tapered button bit, tapered drill rod, plug hole integral drill rod, integral drill rod),and other rock drilling tools that are widely used in mining, tunneling, quarrying, water well, anchoring,transportation construction, pile foundation, and civil engineering projects etc.
