Hand Steel Reinforced Concrete Beams Cutting Wire Saw

Henan Yugong Machinery Co., Ltd.
  • Application：Diamond Cutting Reinforced Concrete, Bridge, Walls
  • Type：Electroplating
  • Name：Hydraulic Diamond Wire Saw
  • Keyword：Diamond Cutting Wire Saw
  • Power Source：Hydraulic
  • Automation：Semi-Automatic

Base Info

  • Model NO.：YG Diamond Wire Saw
  • Dimension：1300*2500*300mm
  • Motor Power：25kw
  • Usage：Jadestone, Cement Brick, Concrete Curb, Granite
  • Cutting Ability：High Speed
  • Source Voltage：380V
  • Power：Hydraulic or Electric
  • Hydraulic Pump Type：Gear Pump
  • Hydraulic Pump Power：25kw
  • Main Motor Flow：40-100L,Min
  • Wire Rope Diameter：11.5mm
  • Wire Driving Type：Hydraulic
  • Transport Package：Wooden Case
  • Specification：210kg
  • Trademark：YUGONG
  • Origin：Henan( China)
  • HS Code：8461500090
  • Production Capacity：20sets,Week

Description

Hydraulic Pump

YG-25

Motor Power

25kw

Voltage

220V/380V, 50Hz

Motor Type

HM-80, 2 Cylinders

Rotation

1300r/min

Working Pressure

15-20Mpa

Weight

170kg

Size

720*650*1050mm

Frame & Wheels

Aluminum

Wheels

10

Weight

75kg

Size

90*90*1700mm

Diamond Wire Saw

Diamond Wire

Specification

φ11.5mm  40beads/m

Cutting speed

3~5m2/h

Wire life

2~3m2/m

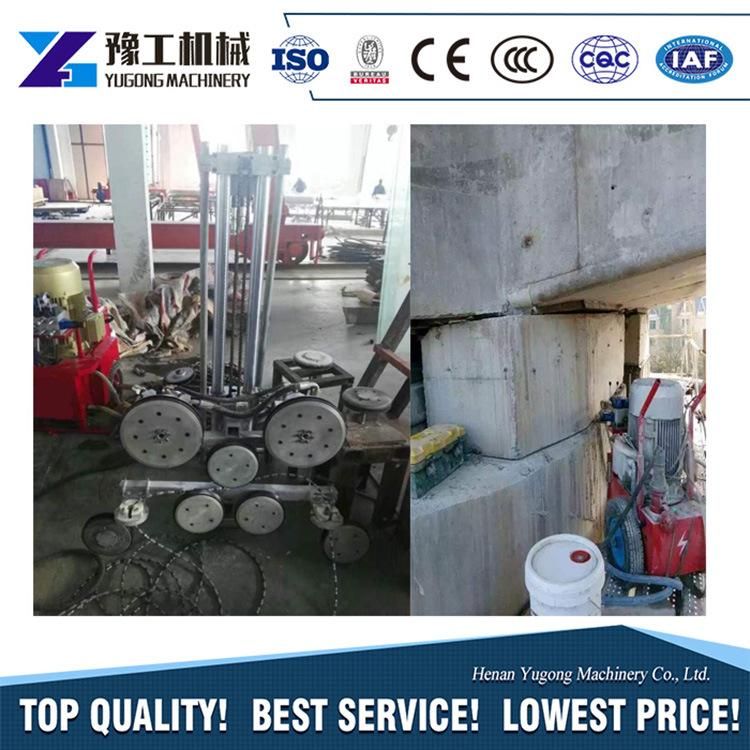

Hand Steel Reinforced Concrete Beams Cutting Wire Saw

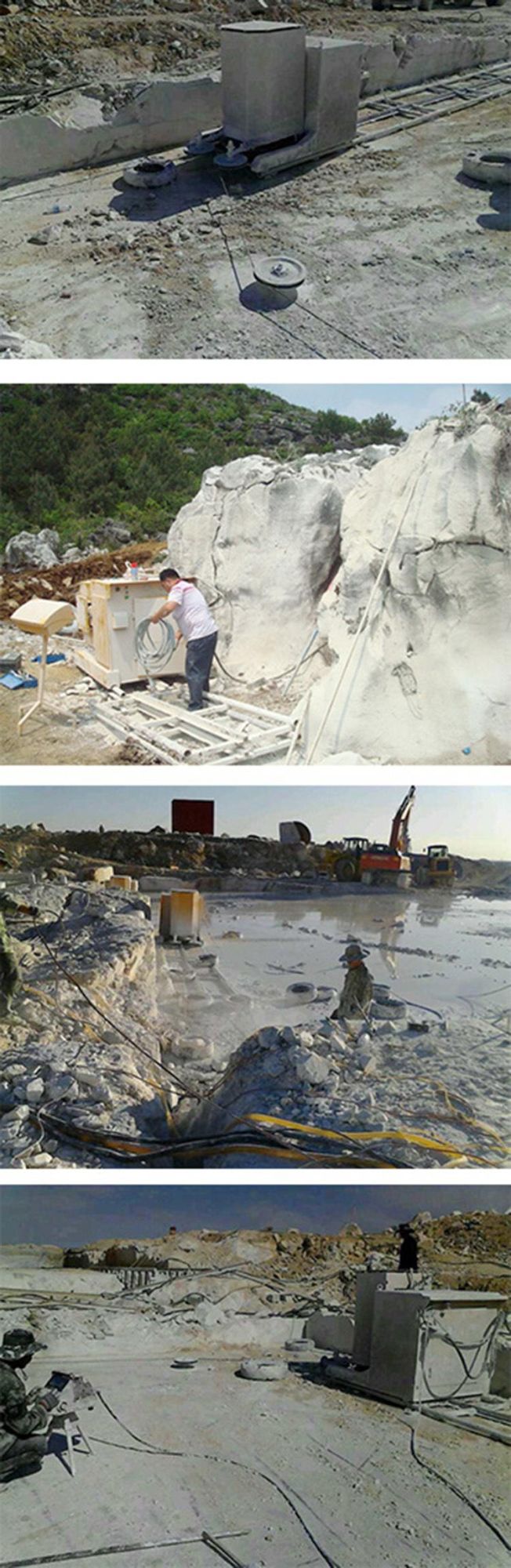

Working Site
Hydraulic Diamond Wire Saw Machine is used to cut concrete, granite, rock, walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.
Hand Steel Reinforced Concrete Beams Cutting Wire Saw
Packaging& Shipping

1. Packaging:  1)Wrapped by proctective film;

                        2)Packed by standard import & export wooden cases or carton boxes.

2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
Hand Steel Reinforced Concrete Beams Cutting Wire Saw
