Stone Cutting Machine Factory Diamond Wire Rope Saw on Sale
Henan Yugong Machinery Co., Ltd.- Application：Diamond Cutting Reinforced Concrete, Bridge, Walls
- Type：Electroplating
- Name：Hydraulic Diamond Wire Saw
- Keyword：Diamond Cutting Wire Saw
- Power Source：Hydraulic
- Automation：Semi-Automatic
Base Info
- Model NO.：YG Diamond Wire Saw
- Dimension：1300*2500*300mm
- Motor Power：25kw
- Usage：Jadestone, Cement Brick, Concrete Curb, Granite
- Cutting Ability：High Speed
- Source Voltage：380V
- Power：Hydraulic or Electric
- Hydraulic Pump Type：Gear Pump
- Wire Driving Type：Hydraulic
- Motor：Hm-80
- Diamond Wire Rope Diameter：11.5mm
- One Set：50m
- Transport Package：Wooden Case
- Specification：210kg
- Trademark：YUGONG
- Origin：Henan( China)
- HS Code：8461500090
- Production Capacity：20sets,Week
Description
Hydraulic Pump
YG-25
Motor Power
25kw
Voltage
220V/380V, 50Hz
Motor Type
HM-80, 2 Cylinders
Rotation
1300r/min
Working Pressure
15-20Mpa
Weight
170kg
Size
720*650*1050mm
Frame & Wheels
Aluminum
Wheels
10
Weight
75kg
Size
90*90*1700mm
Diamond Wire Saw
Diamond Wire
Specification
φ11.5mm 40beads/m
Cutting speed
3~5m2/h
Wire life
2~3m2/m

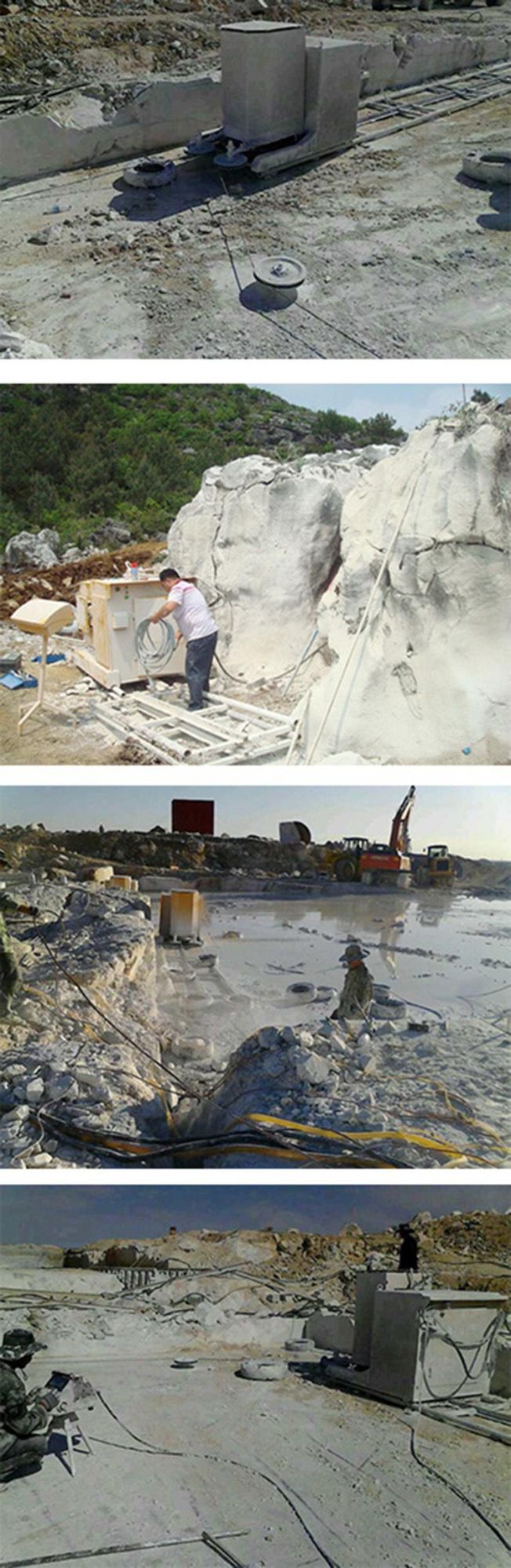

Working Site
Hydraulic Diamond Wire Saw Machine is used to cut concrete, granite, rock, walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.
Packaging& Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
