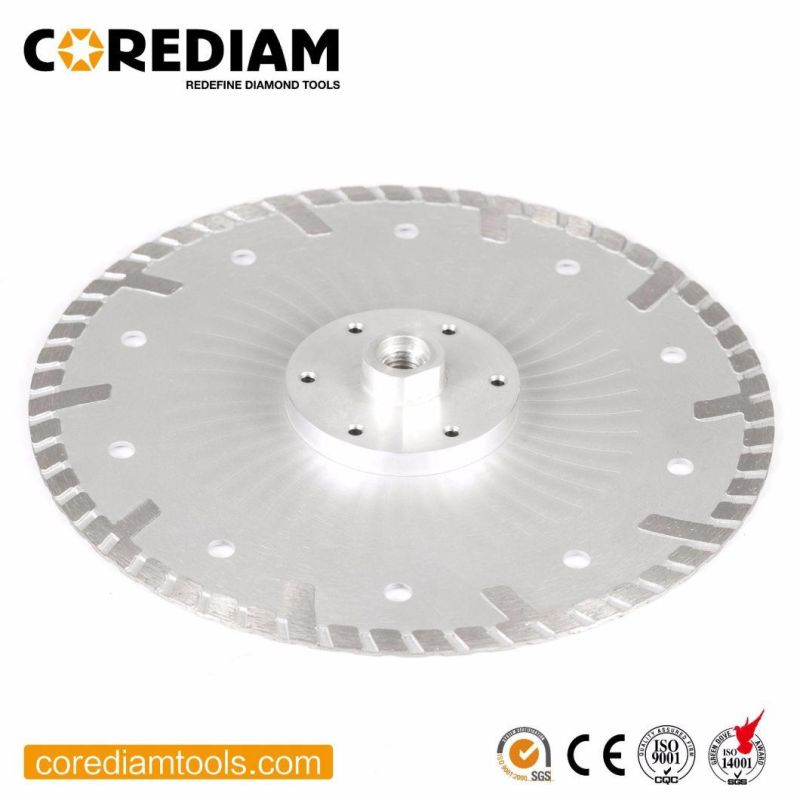

9 Inch Granite Turbo Saw Blade
Shijiazhuang Corediam Tools Technology Co., Ltd.- Blade Type:Turbo Segment & Protective Segments
- Manufacturing Process:Sintered
- Application:Stone
- OEM Service:Acceptance
- Suitable:Wet and Dry Cutting
- Transportation:Ocean, Land, Air
Base Info
- Model NO.:STBC
- Certificate:En13236
- Manufacturing:Sinter Hot-Pressing
- Transport Package:Carton
- Specification:105-350MM
- Trademark:COREDIAM
- Origin:China
- HS Code:82023910
- Production Capacity:10000PCS,Month
Description
Basic Info.
Model NO. STBC Certificate En13236 Manufacturing Sinter Hot-Pressing Transport Package Carton Specification 105-350MM Trademark COREDIAM Origin China HS Code 82023910 Production Capacity 10000PCS/MonthProduct Description
1. Introduction
This type of blade is light and easily-carried, the diameter is 300mm. The manufacture of art is sintered hot-pressed.
It can be widely used in wet cutting granite, marble and other stone materials with good efficiency. It is sinter hot-pressed. The segment height is 12mm. The quality level is premium. This type blade is with wave steel core. Turbo segments for better cooling and better dust removal, the deep segments can well be protected the blades from undercutting.
2. Specification for reference: (others also available as per required)
Item No. | Diameter | Segment Height | Segment Width | Arbor |
STBC10509 | 105mm | 9mm | 2.2mm | 22.23mm |
STBC11509 | 115mm | 9mm | 2.2mm | 22.23mm |
STBC12509 | 125mm | 9mm | 2.2mm | 22.23mm |
STBC15009 | 150mm | 9mm | 2.2mm | 22.23mm |
STBC18009 | 180mm | 9mm | 2.5mm | 22.23mm |
STBC23009 | 230mm | 9mm | 2.7mm | 22.23mm |
STBC30012 | 300mm | 12mm | 3.0mm | 25.4mm |
STBC35012 | 350mm | 12mm | 3.0mm | 25.4mm |
3.Features:
- Universal dry and wet cutting blades.
-small cutting width
- Turbo segment for better cooling and better dust removal, the deep segment style can well be protected the blades from undercutting.
- The wave steel core improves blade rigidity, reduces friction, avoids wobbling during cutting and is a better removal of filings.
4.Turbo blade production process.
Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch
5. Delivery time
Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.
For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.
6. Production facility
7.Corediam introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
