• Model NO.：CTSC
• Customized：Customized
• Transport Package：Carton, Pallet
• Specification：350x10x25.4mm
• Trademark：Corediam
• Origin：China
• HS Code：82023910
• Production Capacity：1000PCS,Day

Basic Info.

Model NO. CTSC Customized Customized Transport Package Carton, Pallet Specification 350x10x25.4mm Trademark Corediam Origin China HS Code 82023910 Production Capacity 1000PCS/Day

Product Description

1. Product Introduction

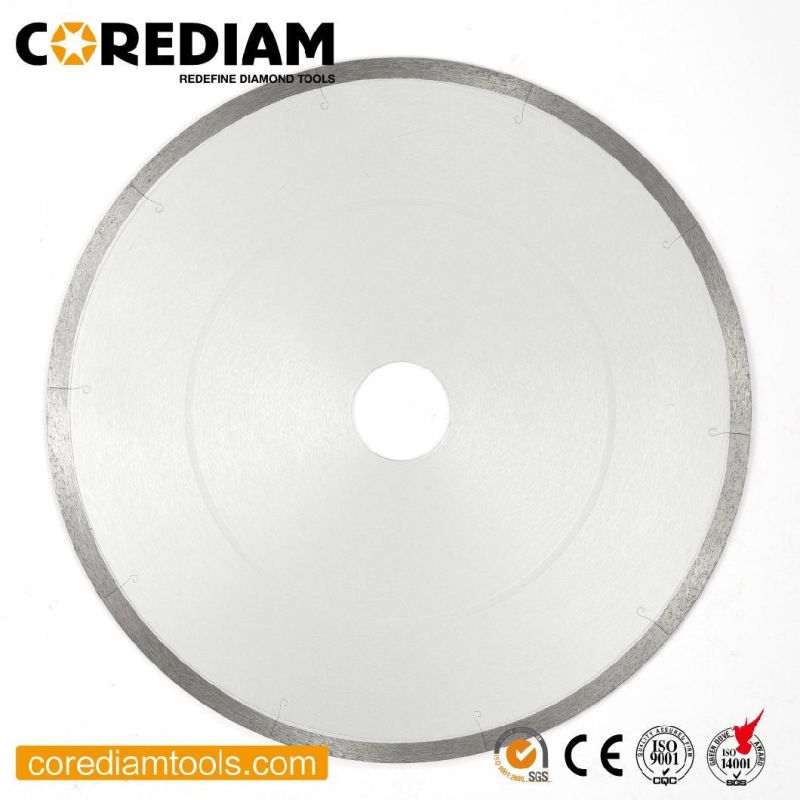

This type of blade is sinter hot-pressed, it is with the silent slot, which is designed for professionally wet cutting tiles. The diameter is 350m. Hard Ceramic Cutting Disc produced by sinter hot pressing technology, bringing improved performance to cutting porcelain tiles. Through using of microband technology, this blade can ensure a consistent and clear cutting edge and eliminates the chipping of porcelain surface even with the hardest tiles. It allow to cut less drag and resistance than any other tile blade. This decreases resistance means longer cutting life and increased cutting efficiency

2. Features:
- With laser cuts slots, it can reduce the noise during the cutting job.
- Good cutting results: stable cutting, low-noise, small cutting width.
- Light easily-carried.
- These blades are used for professionally cutting ceramic tile and porcelain with good efficiency.

3. Specification


Item No.	Diameter	Segment Height	Segment Width	Arbor
CTSC105	105mm	7/10mm	1.7mm	22.23mm
CTSC115	115mm	7/10mm	1.7mm	22.23mm
CTSC125	125mm	7/10mm	1.7mm	22.23mm
CTSC150	150mm	7/10mm	1.7mm	22.23mm
CTSC180	180mm	7/10mm	1.7mm	22.23mm
CTSC200	200mm	7/10mm	1.7mm	22.23mm
CTSC230	230mm	7/10mm	1.7mm	22.23mm
CTSC250	250mm	7/10mm	1.7mm	22.23mm
CTSC300	300mm	7/10mm	2.2mm	25.4/50/60mm
CTSC350	350mm	7/10mm	2.4mm	25.4/50/60mm
CTSC400	400mm	7/10mm	2.6mm	25.4/50/60mm

OEM service offered.




4. Delivery time

Our leading time will be about 1 week for batch order.

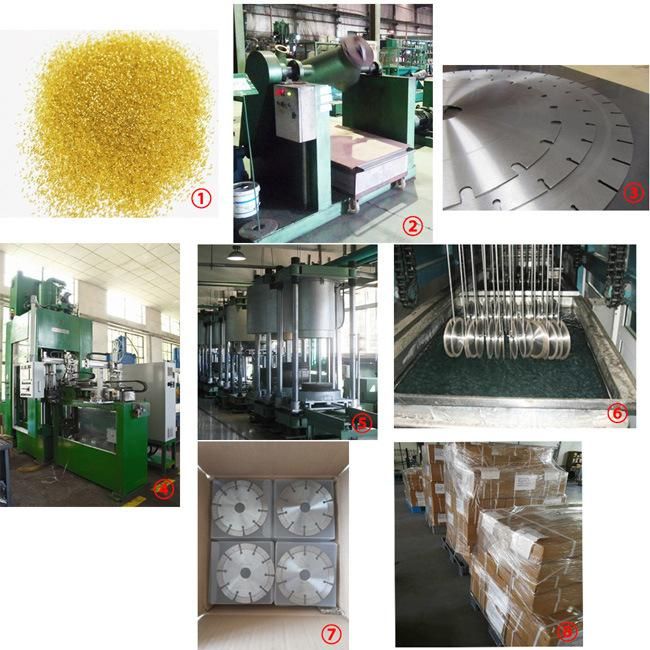

5. Sinter Hot-pressed Diamond Saw Blade Manufacturing Technique




6. Corediam Introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.

7.Packing and delivery.



8. Corediam testing process
