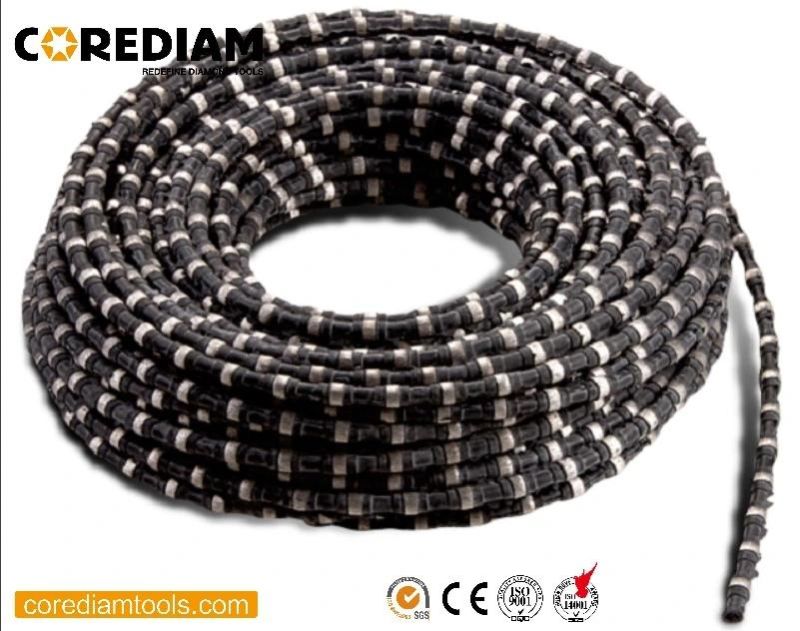

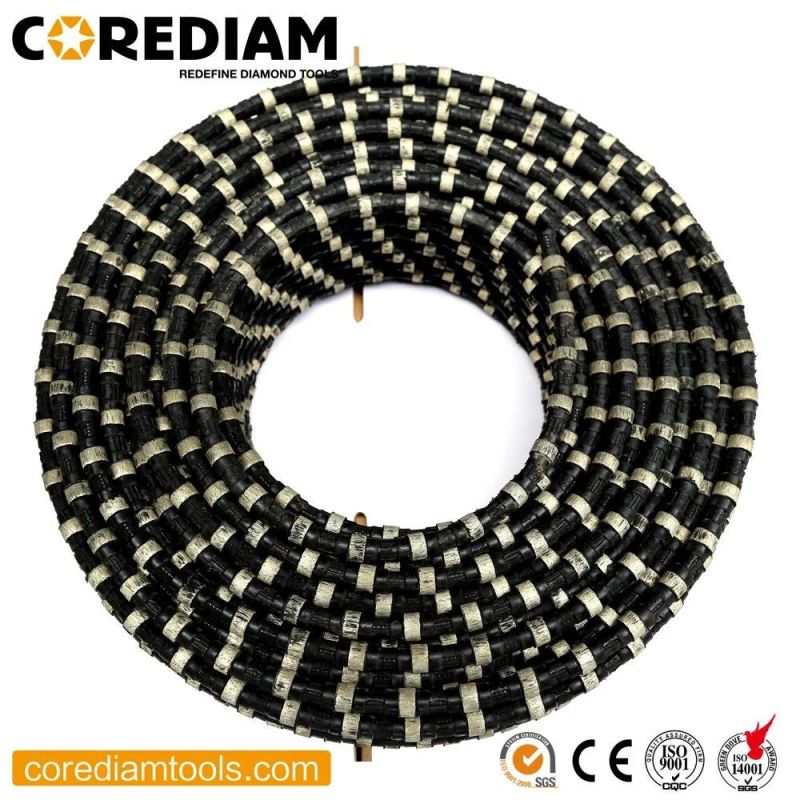

Sintered Diamond Wire Saw for Flexible Concrete and Reinforced Concrete/Diamond Tool/Diamon Wire Saw
Shijiazhuang Corediam Tools Technology Co., Ltd.- Application：Reinforced Conrete Wire Sawing
- Manufacturing Technology：Sinter Hot-Pressed Diamond Beads
- Diameter：10.5mm, 11.0mm, 11.5mm
- Beads Per Meter：40 Beads, Meter
- Connection：Rubber and Spring
- Usage：Wire Sawing Concrete, Reinforced Concrete
Base Info
- Model NO.：CCWS
- Transport Package：Carton, Pallet
- Specification：10.5mm, 11.0mm, 11.5mm
- Trademark：COREDIAM
- Origin：China
- HS Code：82029910
- Production Capacity：5000 Meters Per Month
Description
2. Specification
| Item No. | Bead Diameter | Beads No./Meter | Fixing |
| CCWS10540 | 10.5mm | 40 | Rubber+Spring |
| CCWS11040 | 11.0mm | 40 | Rubber+Spring |
| CCWS11540 | 11.5mm | 40 | Rubber+Spring |

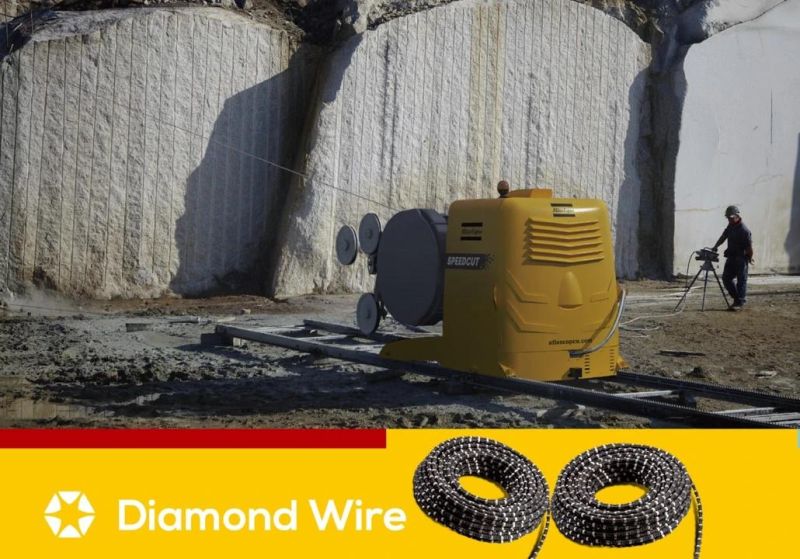

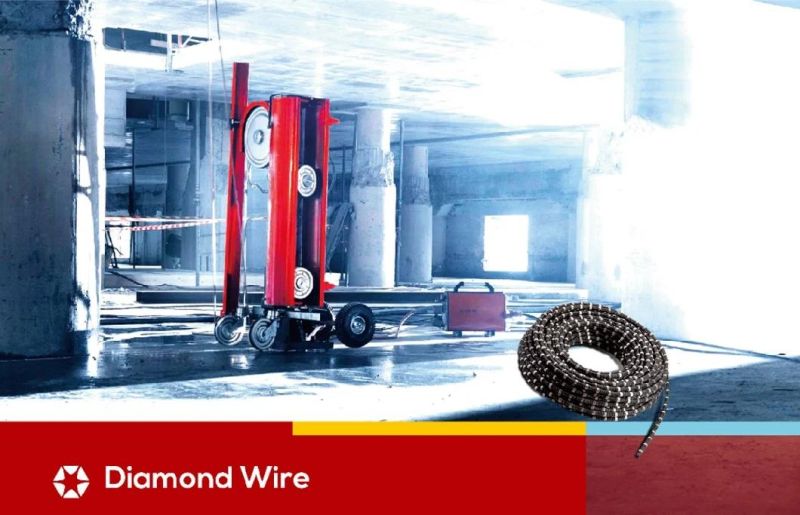

3. Features&cutting performance
Achieve an cut of large, irregular buildings;
Cutting in any direction and partial cutting;
High efficiency and safety without environmental pollution;
The cutting process can be controlled by long distance.
This item of diamond wire have very good cutting performance, lifespan can reach 2.5 sqm per meter.
| Cutting Material | Line Speed m/s | Cutting Speed sqm/h | Wire Life sqm/m |
| normal concrete | 22-28 | 2.0-5.0 | 2.0-7.0 |
| heavy reinforced concrete | 18-25 | 0.8-2.0 | 1.5-2.5 |
| steels | 16-22 | 0.5-1.0 | 0.5-1.2 |
4. Delivery time
1 week for samples
2-3 weeks for batch orders.

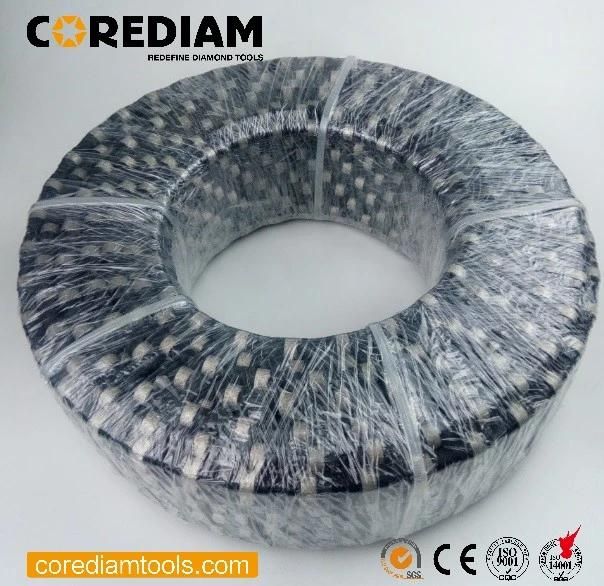

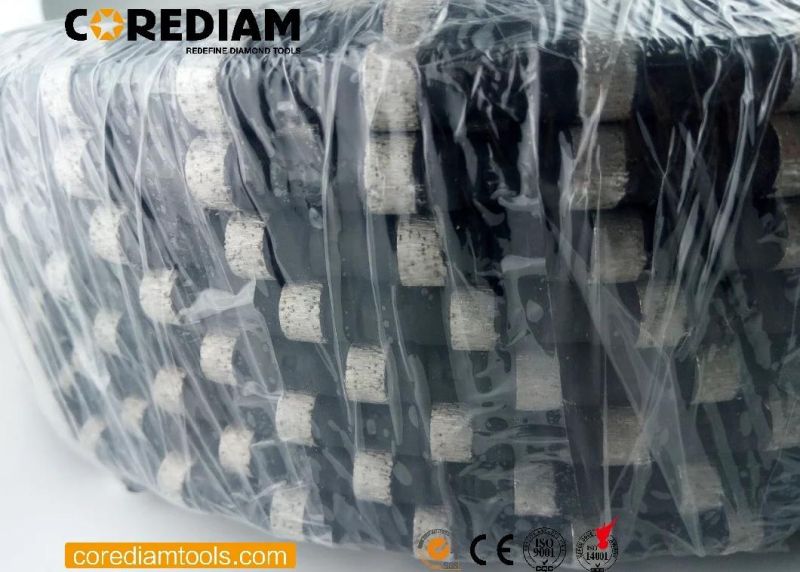

5.Package and loading
6.Corediam introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world by technology innovation.
