Factory Price Diamond Cutting Disc Wall Saw Cutter Concrete for Sale
Henan Yugong Machinery Co., Ltd.- Application：Concrete Cutting
- Type：Concrete
- Saw Type：Electric,Hydraulic
- Packing：Carton or Wooden Case.
- Color：Red or Customized
- No-Load Speed：4500rpm
Base Info
- Model NO.：YG-800
- Rated Input Power：6800W,Hydraulic
- Voltage：220V or Customized
- Frequency：50Hz,60Hz
- Cutting Disc：Diamond Cutting Disc
- Warranty：1 Year
- Power：Electric,Pump Station
- Cutting Depth：300-750mm
- Transport Package：Wooden Case Export Package
- Specification：95kg, 0.45m3
- Trademark：Yugong
- Origin：China, Henan
- HS Code：8464101000
- Production Capacity：5000,Month
Description
Basic Info.
Model NO. YG-800 Rated Input Power 6800W/Hydraulic Voltage 220V or Customized Frequency 50Hz/60Hz Cutting Disc Diamond Cutting Disc Warranty 1 Year Power Electric/Pump Station Cutting Depth 300-750mm Transport Package Wooden Case Export Package Specification 95kg, 0.45m3 Trademark Yugong Origin China, Henan HS Code 8464101000 Production Capacity 5000/MonthProduct Description

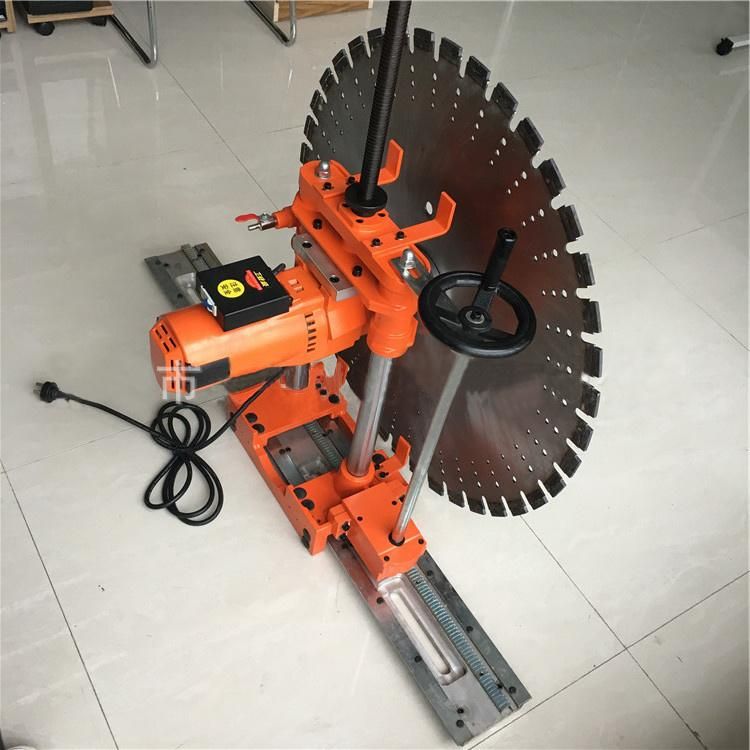

Diamond Cutting Disc Wall Saw Cutting Concrete
Product Description
Electric Driven Concrete Wall Saw Cutting Machine is designed to cut concrete, wall, road, rocks, etc.It can cut general reinforced concrete walls, board cutting, demolition or the door hole. The cutting surface requires to be a smooth and straight concrete cutting, cutting depth is decided by the blade size adjustment, 800/1000/1200mm blade adjustable, cutting depth up 0-550mm.
Technical Parameters
| Model | YG-800 | YG-1000 | YG-1200 |
| Motor | 220V, 50Hz, 1Phase | 220V, 50Hz, 1Phase | 220V, 50Hz, 1Phase |
| Power | 6250w | 6580w | 6980w |
| Blade | 800mm | 1000mm | 1200mm |
| Cutting Depth | 350mm | 450mm | 550mm |
| Watering | Manual | Manual | Manual |
| Middle Handle | Depth | Depth | Depth |
| Side Handle | Movement | Movement | Movement |
| Dimension | 1200*450*1150mm | 1200*550*1250mm | 1200*650*1300mm |
| Weight | 80kg | 87kg | 95kg |
Product Advantages
Simple Operation instructions:
1. fix the rails on the wall with anchors.
2. put the frame in the rails.
3. fix the disc and saw cover.
4. power on, then move the handle to cut.
(Middle handle is for disc in/out, side handle is for machine movement.)
The Whole Set of Machine Includes
1. one frame with an electric motor, 220V, 50Hz, 3000w.
(We could customize the motor according to your requirement.)
2. one disk, 1000mm.
3. one saw cover.
4. one set of rails, 1.2m*2 pcs.
5. one set of anchors

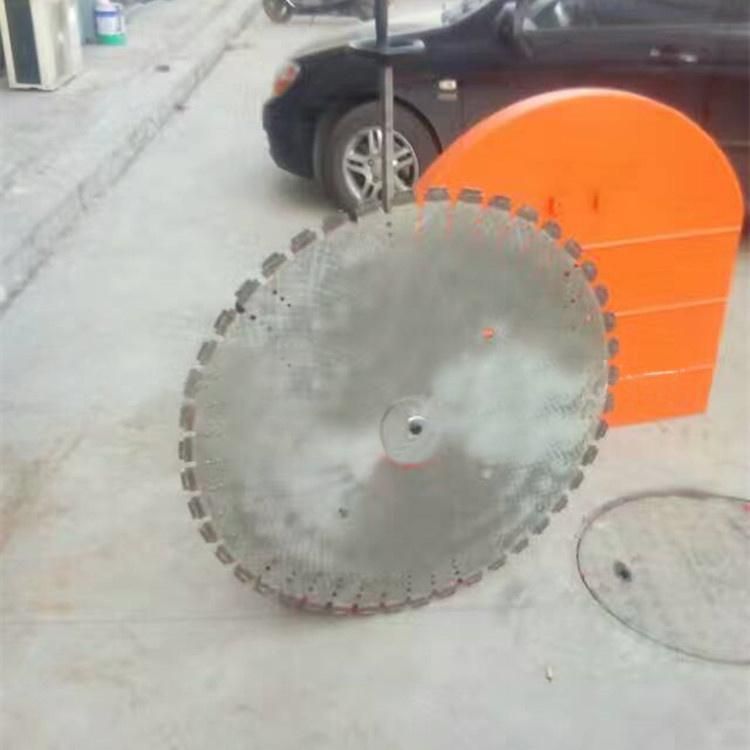

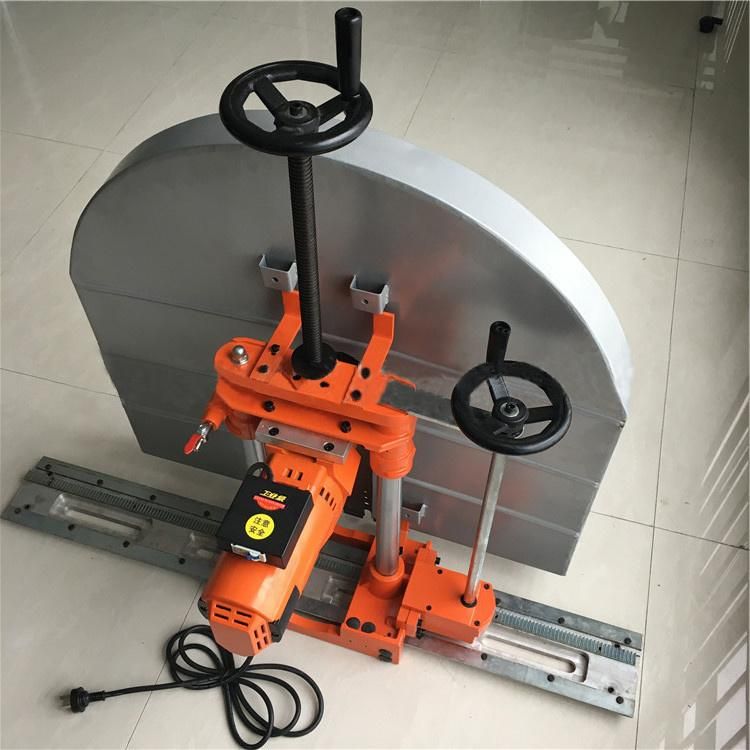

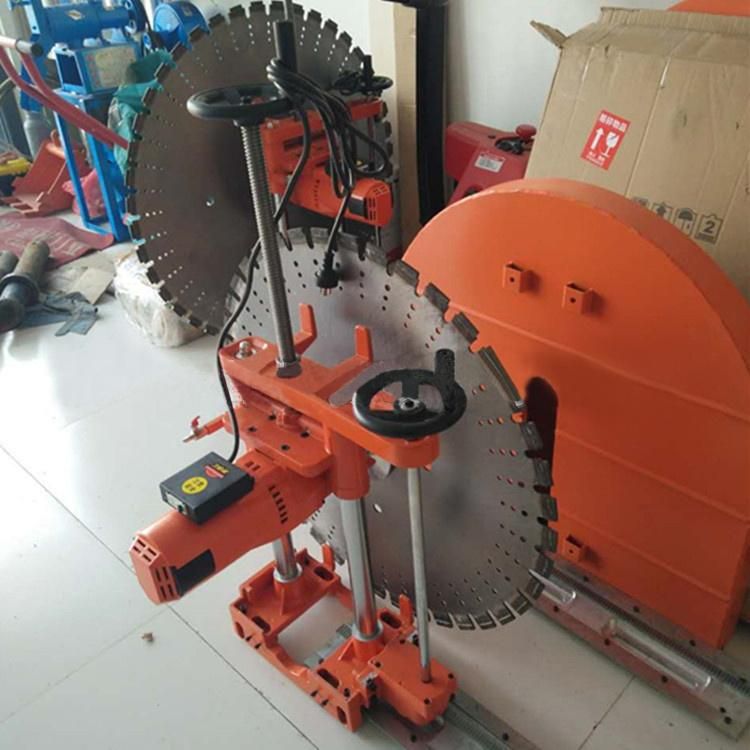

Detailed Images
