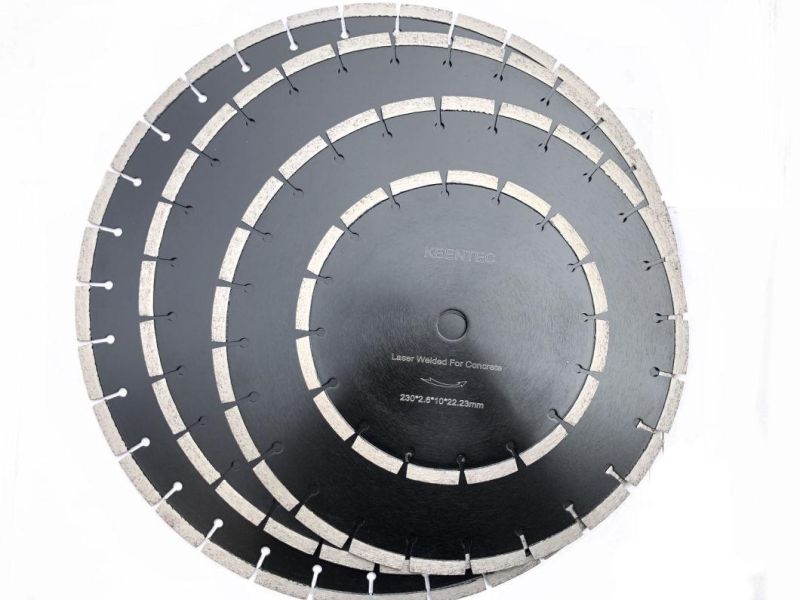

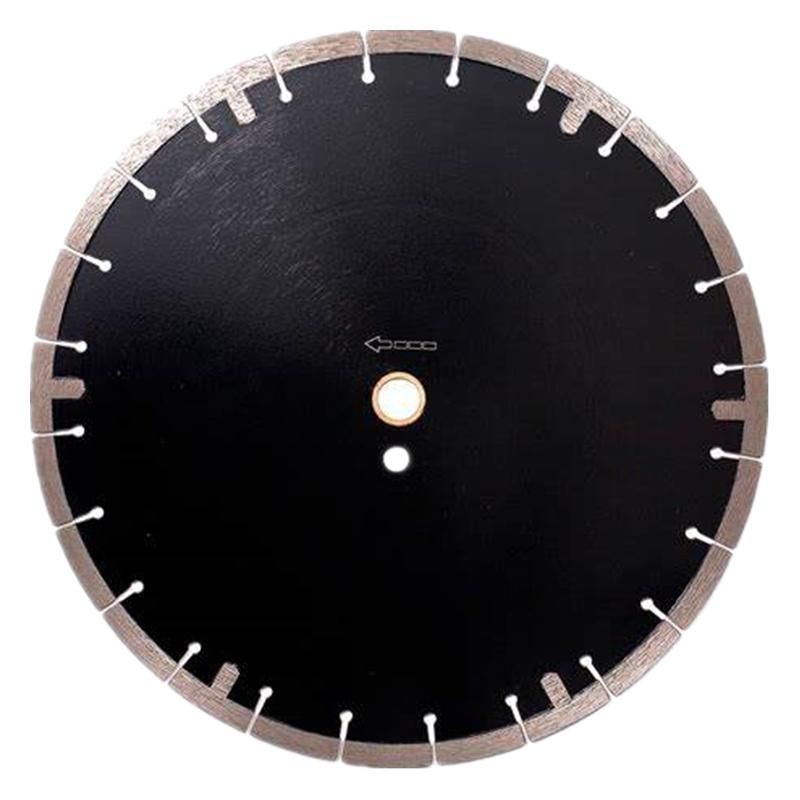

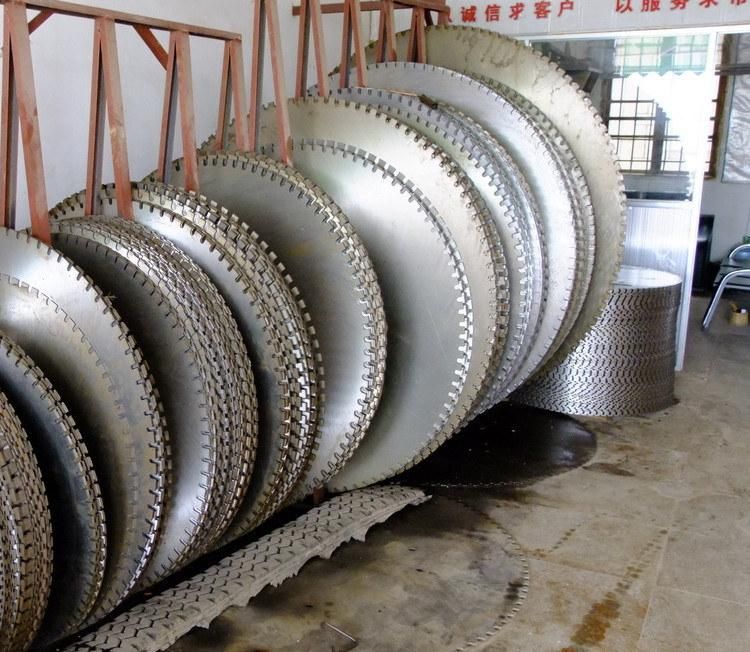

Asphalt Cement Concrete Road Cutting Diamond Saw Blade
Quanzhou Keen Diamond Tool Co., Ltd.- Blade Type：Segmented
- Manufacturing Process：Sintered
- Application：Asphalt and Concrete
- Item：Diamond Blade
- Diameter：From 350mm
- Technology：High Frequency Welding
Base Info
- Model NO.：350mm
- Material：Silent Core with Sintered Diamond Segment
- Transport Package：Carton,Crate
- Trademark：KEENTOOL
- Origin：China
- HS Code：82023100
- Production Capacity：1000PCS,Week
Description
DiameterLength
(mm) Width
(mm) Height
(mm) Segment No. Arbor size
(mm) Inch Metric(mm) 12" 300 40 3.0 10/12/15/20 21 50/60 14" 350 40 3.2 10/12/15/20 24 16" 400 40 3.4 10/12/15/20 28 18" 450 40 3.6 10/12/15/20 32 20" 500 40 4.0 10/12/15/20 36 24" 600 40 4.5 10/12/15/20 42 28" 700 40 5.0 10/12/15/20 50 32" 800 40 6.0 10/12/15/20 57 36" 900 24 6.5/7.5 13/15 64 100 40" 1000 24 6.5/7.5 13/15 70 48" 1200 24 7.0/8.0 13/15 80 64" 1600 24 8.2/9.2 13/15 108 72" 1800 24 9.0/10.0 13/15 120 80" 2000 24 9.5/10.5 13/15 128 110" 2500 24 11/12 15/20 140 120" 3000 24 11/12 15/20 160 135" 3500 24 12.5/13.5 15/20 180 150/200 155" 4000 24 13.5/14.5 15/20 200 165" 4200 24 13.5/14.5 15/20 210
Introduction:
KEENTOOL will be best solution for customers in fields as below:

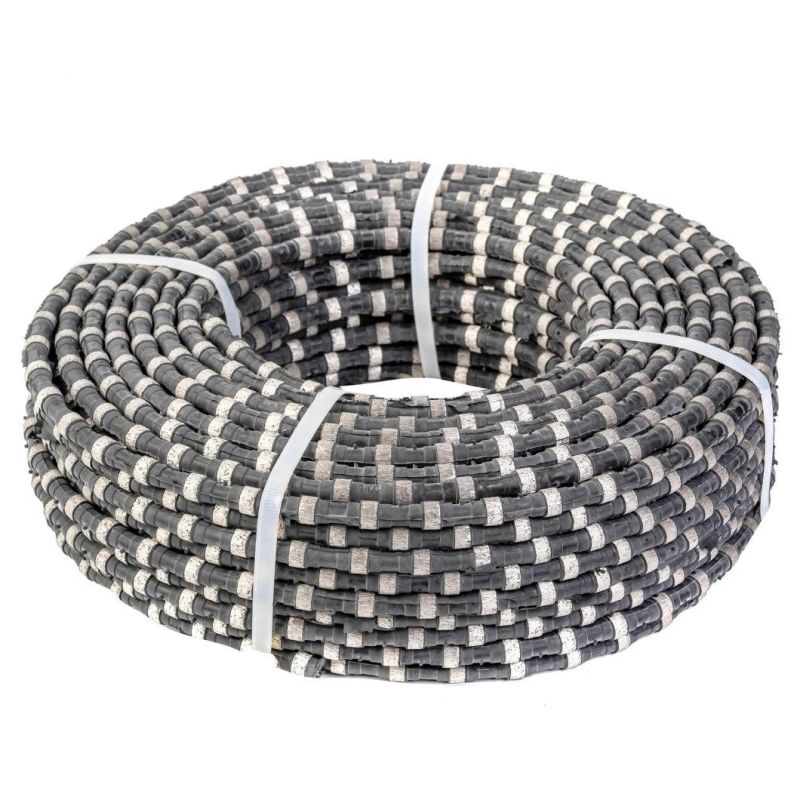

1. Diamond Wire for stone quarry, blocks trimming and profiling.
2. Diamond Wire for controlled demolition work of construction with structure of concrete, reinforced concrete and steel.

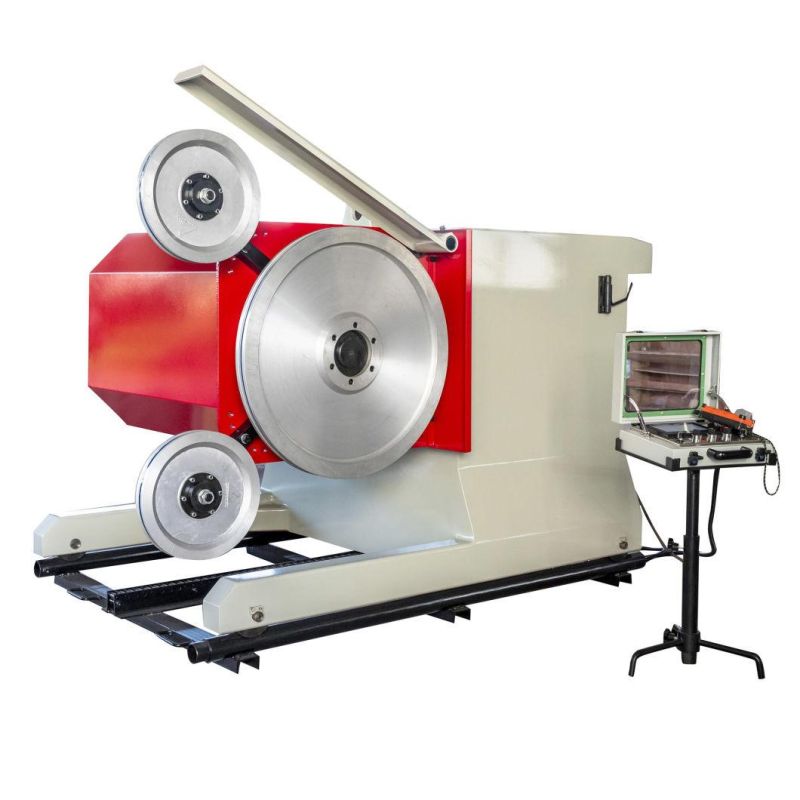

3. Wire Saw Machine with variable speed and step-less tension system for quarry and block cutting.

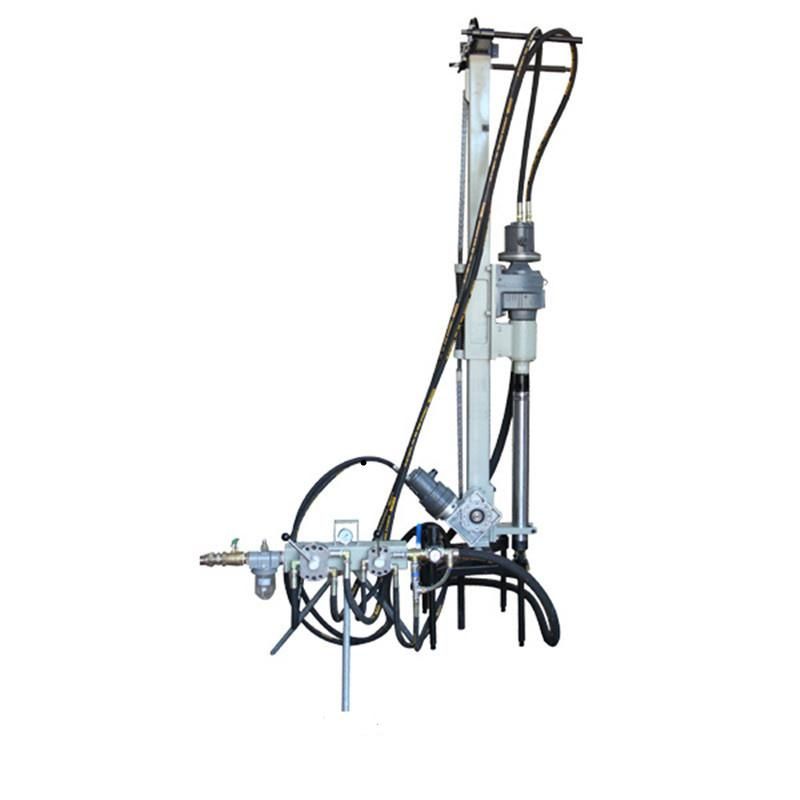

4. DTH drills with complete Pneumatic system, or Pneumatic & Electrical system for drilling the wire hole.
5. Conventional Diamond Tools for processing stone and other construction materials.
ALWAYS AT YOUR SERVICE--KEENTOOL
